Embedded Fiber Optic Vibration Sensor DAQ Card
The embedded mainframe carries a 100M fiber optic vibration sensing DAQ card with Ethernet transmission protocol.
Huang
Email: Hqy@ybphotonics.com
Product Info
Introduction
Comes with an ATOM CPU, 4G of RAM, and is capable of running an operating system. Reads DAQ data through the built-in PCIe interface, and supports data transfer through the network port.
Embedded integrated high-speed data acquisition and processing unit integrates CPU, FPGA and high-speed ADC on a single board with very high energy consumption ratio. On-board high-performance FPGA chip, connected to the CPU through the PCI Express 2.0 bus, can realize the fast real-time transmission of acquisition data. It supports two input channels with a maximum sampling rate of 100MSps, which is suitable for application scenarios such as fiber optic sensing, software radio, lightning positioning, and power bureau discharge testing.
Specifications
CPU Unit
- ATOM E3845/N2930, 4 Core@1.91/.83GHz
- 4GB DDR3-1333 memory
- mSATA2.0 interface, supports mSATA SSDs
- 1-way Gigabit Ethernet interface
- 1 channel HDMI display interface
- 2/4-way USB2.0 interface
- 2-way RS232 interface
- Support Window, Linux operating system
- 4G communication interface
Signal Acquisition and Processing Unit
- 14bits dual-channel synchronized real-time sampling
- 100MSps sampling rate
- DC-coupled, 50Ω input impedance
- 2Vpp input voltage range, 0-60MHz analog bandwidth
- Up to 88dBc SFDR
- 2GB DDR3 high-speed data cache
- 8-way DIO, 3.3V LVCMOS level

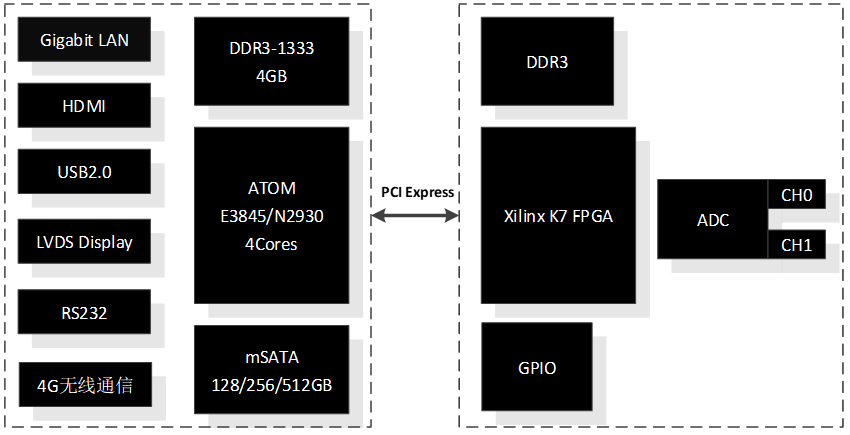

System block diagram
- CPU adopts Intel ATOM low-power E3845/N2930, 4 cores, chip type 4GB memory, to ensure the anti-shock performance of the CPU unit; provide a mSATA interface, flexible configuration of the hard disk capacity; provide HDMI and LVDS dual display interfaces, support dual-screen operation.
- The FPGA adopts Xilinx's K7 series, which has abundant RAM and multiplier resources and is suitable for high-performance digital signal processing operations; the external expansion of 1GB DDR3 unit provides large-capacity high-speed data cache space.
- The external expansion of 1GB DDR3 unit provides a large capacity of high-speed data cache.
Power supply and power consumption
- Power supply voltage: DC 12V
- Power consumption: 15W (Max)
Temperature range
- Operating temperature: 0~60℃ (optional -40~60℃)
- Storage temperature: -40~85℃
Machine Dimension
- 170mm(L) x 150mm(W) x 30mm(H)
