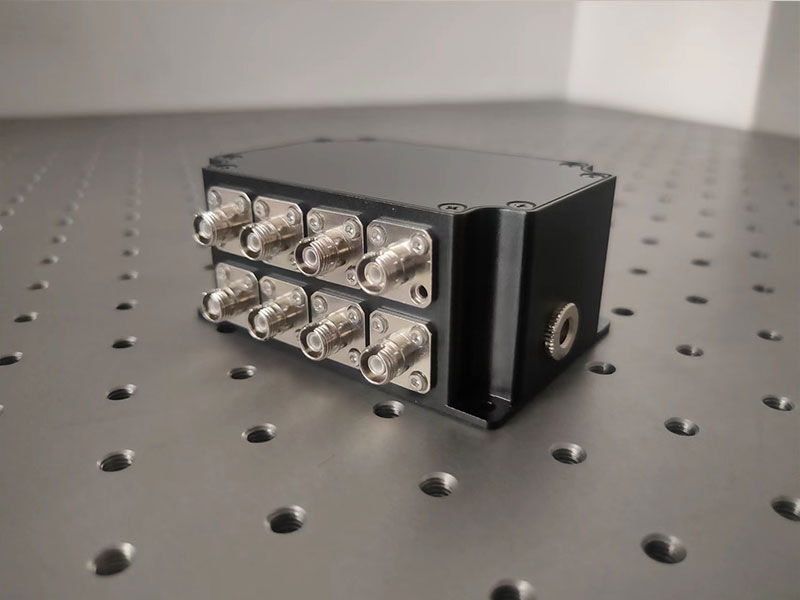

Multi-channel photodetector module 4/8/16 ports Customizable
Multi-port photodetector module with 4/8/16 ports integrated on one module, small size and cost-effective.
Model：PD1x
Tags：
Multi-channel photodetector
4-channel detector
8-channel detector
16-channel detector
Fiber-coupled
400-1100nm
800-1700nm
Contact：
Huang
Email: Hqy@ybphotonics.com
Huang
Email: Hqy@ybphotonics.com
Product Info
Introduction
One photodetector module with 4/8/16 channels, compact size, easy integration, customized parameters
We integrate 4/8/16 individual photodetectors in a very compact housing structure, which makes it very convenient for users to integrate the detector into equipment with limited space, and because each detector is independent of each other, it is more cost-effective than buying multiple detectors individually for multiple channels.
Item PD1x-250M PD1xA-200M PD1x-CUS Number of channels 4/16 material InGaAs Si InGaAs Wavelength Range 800-1700nm 400-1100nm 800-1700nm Optical Input FC/APC Active Area Diameter 75um 200um 75um Responsiveness 0.9A/W @ 1550nm 0.55A/W @ 850nm 0.9A/W @ 1550nm Bandwidth DC-250MHz DC-200MHz DC-500MHz Rise Time 1.4ns 1.4ns 800ps Conversion Gain (Max) 2x10^4V/A 1.1x10^4V/W - Minimum optical power -30.0dBm (1uw) -29.6dBm(1.1uw) - Saturated optical power -6.0dBm (0.25mw) -4.4dBm(0.36mw) 5mW Noise voltage <16mV <12mV - Maximum output amplitude 4.0V 4.0V 2.0V Operating voltage 12VDC ±10% Operating current <200mA Output connector SMA Output impedance 50Ω Output coupling mode DC DC DC Operating temperature -25~55℃ Storage temperature -55~85℃ Dimensions 90mm x 60mm x 22mm
Other models
model
channel
wavelength range
bandwidth
With or without amplification
Saturated optical power
Maximum voltage amplitude
note
PD14-CUS2-VIS
4
400-1100nm
DC-1MHz
without
5mw
10V
Measurement: 940nm
PD14-CUS2-NIR
4 1100-1680nm
DC-5MHz
without 5mw
10V
Measurement: 1550nm
PD14-C-10V
4 800-1700nm
DC-50K
without
6mw
10V
Measurement: 976nm
PD18-200K
8 950-1700nm
DC-200K
With
Sensitivity <-50dbm
One photodetector module with 4/8/16 channels, compact size, easy integration, customized parameters
We integrate 4/8/16 individual photodetectors in a very compact housing structure, which makes it very convenient for users to integrate the detector into equipment with limited space, and because each detector is independent of each other, it is more cost-effective than buying multiple detectors individually for multiple channels.
| Item | PD1x-250M | PD1xA-200M | PD1x-CUS |
|---|---|---|---|
| Number of channels | 4/16 | ||
| material | InGaAs | Si | InGaAs |
| Wavelength Range | 800-1700nm | 400-1100nm | 800-1700nm |
| Optical Input | FC/APC | ||
| Active Area Diameter | 75um | 200um | 75um |
| Responsiveness | 0.9A/W @ 1550nm | 0.55A/W @ 850nm | 0.9A/W @ 1550nm |
| Bandwidth | DC-250MHz | DC-200MHz | DC-500MHz |
| Rise Time | 1.4ns | 1.4ns | 800ps |
| Conversion Gain (Max) | 2x10^4V/A | 1.1x10^4V/W | - |
| Minimum optical power | -30.0dBm (1uw) | -29.6dBm(1.1uw) | - |
| Saturated optical power | -6.0dBm (0.25mw) | -4.4dBm(0.36mw) | 5mW |
| Noise voltage | <16mV | <12mV | - |
| Maximum output amplitude | 4.0V | 4.0V | 2.0V |
| Operating voltage | 12VDC ±10% | ||
| Operating current | <200mA | ||
| Output connector | SMA | ||
| Output impedance | 50Ω | ||
| Output coupling mode | DC | DC | DC |
| Operating temperature | -25~55℃ | ||
| Storage temperature | -55~85℃ | ||
| Dimensions | 90mm x 60mm x 22mm | ||
Other models
| model | channel | wavelength range | bandwidth | With or without amplification | Saturated optical power | Maximum voltage amplitude | note |
|---|---|---|---|---|---|---|---|
| PD14-CUS2-VIS | 4 | 400-1100nm | DC-1MHz | without | 5mw | 10V | Measurement: 940nm |
| PD14-CUS2-NIR | 4 | 1100-1680nm | DC-5MHz | without | 5mw | 10V | Measurement: 1550nm |
| PD14-C-10V | 4 | 800-1700nm | DC-50K | without | 6mw | 10V | Measurement: 976nm |
| PD18-200K | 8 | 950-1700nm | DC-200K | With | Sensitivity <-50dbm |
