ROF Analog Optical Transmitter and Receiver
Introduction

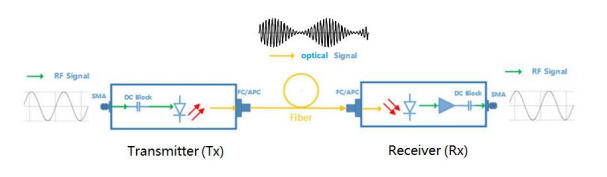

Radio over Fiber (RoF) is an analog transmission that uses RF signals to modulate light which is transmitted over a fiber-optic cable. At the receiving end, the RF energy is recovered. The optical link provides a high bandwidth, low-loss communications link to transport RF energy at optical frequencies, then the RF signal is recovered for use at the load point. Two technologies with tremendous impact have been wireless and fiber-optic communications. Linking these two technologies is RF over fiber (RoF) also referred to as RoF. RoF technology has been widely used in applications of avionics, distributed antenna, cellular, satellite communications, etc.
YB Photonics'S RF over fiber products have an ultrabroadband frequency range of DC-40GHz, and high-performance fiber optic links of 1 meter to 60km or more. A wide range of high-dynamic-range (HDR) applications are supported, such as inter-and intra-facility links, antenna signal distribution, broadband delay lines, site diversity systems and much more.
Applications
- WiFi6/7 and 4G / 5G/ 6G wireless
- GPS signal transport
- All-Digital QAM network
- CATV
- Distributed antenna system
- Satellite communications
- Fiber Delay line
Optical Transmitter (Tx)
| Picture | Series | Features | PN | Analog Bandwidth (GHz) | W/ or W/O LNA |
W/ or W/O TEC | Wavelength Range(1) (nm) | Operating Temperature (°C) | Link Gain（2）（dB）Typical | Ripple （dB）Typical | NF（dB）Typical | IIP3（dBm) Typical | SFDR （dB·Hz2/3) Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (L*W*H, mm): 77.9*18.3*8.5 Weight (g): 39.2 |
MT04 | XFP-RF Analog Optical Transmitter |
OM- TLXxxxNL- OT00 |
0.05-1.5 | W/ | W/O | CWDM,1270-1370、1550 | 0-+70 | 14, (Rx with LNA) | ±0.8 | 25@1GHz | 22@1GHz | 112@1GHz |
| OM- TSXxxxNL- OT00 |
0.05-3 | W/ | W/O | CWDM,1270-1370、1550 | 0-+70 | 14, (Rx with LNA) | ±1.2 | 25@1GHz | 22@1GHz | 112@1GHz | |||
| OM- TLXxxxNL- OT09 |
0.05-1.5 | W/ | W/O | CWDM,1270-1370、1550 | 0-+70 | 14, (Rx with LNA) | ±0.8 | 25@1GHz | 22@1GHz | 112@1GHz | |||
| OM- TSXxxxNL- OT09 |
0.05-3 | W/ | W/O | CWDM,1270-1370、1550 | 0-+70 | 14, (Rx with LNA) | ±1.2 | 25@1GHz | 22@1GHz | 112@1GHz | |||
| OM- TLXxxxNL- OT12 |
0.05-1.5 | W/ | W/O | CWDM,1270-1370、1550 | 0-+70 | 18, (Rx with LNA) | ±0.8 | 28@1GHz | 22@1GHz | 112@1GHz | |||
| OM- TSXxxxNL- OT12 |
0.05-3 | W/ | W/O | CWDM,1270-1370、1550 | 0-+70 | 18, (Rx with LNA) | ±1.2 | 28@1GHz | 22@1GHz | 112@1GHz | |||
| OM- TLXxxxNL- OTHL |
0.05-1.5 | W/ | W/O | 1550 | 0-+70 | 12, (Rx with LNA) | ±0.8 | 28@1GHz | 24@1GHz | 112@1GHz | |||
| OM- TSXxxxNL- OTHL |
0.05-3 | W/ | W/O | 1550 | 0-+70 | 12, (Rx with LNA) | ±1.2 | 28@1GHz | 24@1GHz | 112@1GHz |
| Picture | Series | Features | PN | Analog Bandwidth (GHz) | W/ or W/O LNA |
W/ or W/O TEC | Wavelength Range(1) (nm) | Operating Temperature (°C) | Link Gain（2）（dB）Typical | Ripple （dB）Typical | NF（dB）Typical | IIP3（dBm) Typical | SFDR （dB·Hz2/3) Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Size (L*W*H, mm): 31.3*17*10 Weight (g): 20 |
MT04 | S-Mini Analog Optical Transmitter | OM- TSCxxxNF- OS11 |
0.01-3 | W/ | W/O | CWDM:1270-1370,1530,1550 | -20-+70 | -3, (Rx without LNA)) | ±1.5@1310nm，±2.5@1550nm | 18@1.5GHz@1310nm, 20@1.5GHz@1550nm | 9@1.5GHz | 115@1.5GHz |
| OM- TSCxxxNF- OS10 |
0.01-3 | W/O | W/O | CWDM:1270-1370,1530,1550 | -20-+70 | -24, (Rx without LNA)) | ±1.5@1310nm，±2.5@1550nm | 32@1.5GHz@1310nm, 35@1.5GHz@1550nm | 33@1.5GHz | 115@1GHz | |||
| OM- TCCxxxNF- OS10 |
0.01-6 | W/O | W/O | CWDM:1270-1370,1530,1550 | -20-+70 | -26, (Rx without LNA)) | ±1.5@1310nm，±2.5@1550nm | 32@3GHz@1310nm, 38@3GHz@1550nm | 33@3GHz | 113@1GHz |
| Picture | Series | Features | PN | Analog Bandwidth (GHz) | W/ or W/O LNA |
W/ or W/O TEC | Wavelength Range(1) (nm) | Operating Temperature (°C) | Link Gain（2）（dB）Typical | Ripple （dB）Typical | NF（dB）Typical | IIP3（dBm) Typical | SFDR （dB·Hz2/3) Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Size (L*W*H, mm): 45*35*14.1 Weight (g): 58 |
MT07 | Coaxial Analog Optical Transmitter with TEC | OM- TSCxxxNF- OW00 |
0.01-3 | W/O | W/ | CWDM:1270-1370,1530,1550 | -40-+70 | -26 | ±1.2 | 33@1GHz，34@2GHz，35@3GHz，(1270nm-1370nm) | 34@1GHz, 33@2GHz, 33@3GHz | 117@1GHz，115@2GHz，115@3GHz，(1270nm-1370nm) |
| OM- TCCxxxNF- OW00 |
0.01-6 | W/O | W/ | CWDM:1270-1370,1530,1550 | -40-+70 | -26 | ±1.5 | 33@1GHz，35@3GHz，39@6GHz，(1270nm-1370nm) | 34@1GHz, 33@3GHz, 31@6GHz | 117@1GHz，115@3GHz，111@6GHz，(1270nm-1370nm) | |||
| OM- TXCxxxNF- OW00 |
0.01-12 | W/O | W/ | CWDM:1270-1370,1530,1550 | -40-+70 | -26 | ±2.0 | 33@1GHz，39@6GHz，41@12GHz，(1270nm-1370nm) | 34@1GHz, 31@6GHz, 28@12GHz | 117@1GHz，111@6GHz，107@12GHz，(1270nm-1370nm) | |||
| OM- TYCxxxNF- OW00 |
0.1-16 | W/O | W/ | CWDM:1270-1370,1530,1550 | -40-+70 | -26 | ±2.0 | 33@1GHz，37@10GHz，41@16GHz，(1270nm-1370nm) | 32@1GHz, 30@10GHz, 26@16GHz | 115@1GHz，111@10GHz，106@16GHz，(1270nm-1370nm) | |||
| OM- TUCxxxNF- OW00 |
0.1-18 | W/O | W/ | CWDM:1270-1370 | -40-+70 | -26 | ±2.5 | 35@1GHz，41@10GHz，43@18GHz | 34@1GHz, 32@10GHz, 27@18GHz | 115@1GHz，110@10GHz，105@18GHz | |||
| OM- TKCxxxNF- OW00 |
0.5-21 | W/O | W/ | CWDM:1270-1370 | -40-+70 | -26 | ±2.0 | 35@1GHz，41@10GHz，43@21GHz | 34@1GHz, 32@10GHz, 24@21GHz | 115@1GHz，110@10GHz，102@21GHz | |||
| OM- TSCxxCNF- OW00 |
0.01-3 | W/O | W/ | DWDM,ITU C-BAND | -40-+70 | -26 | ±1.5 | 35@1GHz，36@2GHz，37@3GHz | 38@1GHz, 33@2GHz, 27@3GHz | 118@1GHz，113@2GHz，105@3GHz | |||
| OM- TXCxxCNF- OW00 |
0.01-12 | W/O | W/ | DWDM,ITU C-BAND | -40-+70 | -26 | ±2.0 | 34@1GHz，41@6GHz，47@12GHz | 33@1GHz, 29@6GHz, 25@12GHz | 115@1GHz，108@6GHz，101@12GHz |
Optical Receiver (Rx)
| Picture | Series | Features | PN | Analog Bandwidth (GHz) | W/ or W/O LNA |
W/ or W/O TEC | Wavelength Range (nm) | Operating Temperature (°C) | Saturation input optical power（mW） | Responsivity（A/W）Typical | Back Reflection（dB） | Ripple of Passband（dB） | RF Return Loss（dB） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Size (L*W*H, mm): 31.3*17*10 Weight (g): 19 |
MR03 | S-Mini Analog Optical Receiver | OM-RSC000NF-OS11 | 0.01（5）-3 | W/ | W/O | 1100-1620 | -20-+70 | 10 | 0.8@1310, 0.85@1550 | ≤-35 | ≤±2 | ≤-8 |
| OM-RSC000NF-OS10 | 0.01（5）-3 | W/O | W/O | 1100-1620 | -20-+70 | 10 | 0.8@1310, 0.85@1550 | ≤-35 | ≤±2 | ≤-8 | |||
| OM-RCC000NF-OS11 | 0.01（5）-6 | W/ | W/O | 1100-1620 | -20-+70 | 10 | 0.8@1310, 0.85@1550 | ≤-35 | ≤±2.2 | ≤-7 | |||
| OM-RCC000NF-OS10 | 0.01（5）-6 | W/O | W/O | 1100-1620 | -20-+70 | 10 | 0.8@1310, 0.85@1550 | ≤-35 | ≤±2.2 | ≤-7 | |||
| OM-RXC000NF-OS10 | 0.01（5）-12 | W/O | W/O | 1100-1620 | -20-+70 | 10 | 0.8@1310, 0.85@1550 | ≤-35 | ≤±2.5 | ≤-5 | |||
 Size (L*W*H, mm): 22*17*8.9 Weight (g): 15 |
MR03 | Analog Optical Receiver | OM-RCC000NF-OW00 | 0.01（5）-6 | W/O | W/O | 1100-1620 | -40-+70 | 10 | 0.8@1310, 0.85@1550 | ≤-35 | ≤±1.2 | ≤-9 |
| OM-RXC000NF-OW00 | 0.01（5）-12 | W/O | W/O | 1100-1620 | -40-+70 | 10 | 0.8@1310, 0.85@1550 | ≤-35 | ≤±1.5 | ≤-7 | |||
| OM-RUC000NF-OW00 | 0.01（5）-18 | W/O | W/O | 1100-1620 | -40-+70 | 10 | 0.7@1310, 0.75@1550 | ≤-35 | ≤±2 | ≤-5 | |||
| OM-RKC000NF-OW00 | 0.01（5）-24 | W/O | W/O | 1100-1620 | -40-+70 | 10 | 0.7@1310, 0.75@1550 | ≤-35 | ≤±2.5 | ≤-5@≤18GHz，≤-3@18-24GHz | |||
 Size (L*W*H, mm): 100*90*28 Weight (g): TBD |
MR02 | 40GHz Analog Optical Receiver | OM-RVC000NF-OU00 | 0.1-40 | optional | W/O | 1100-1620 | -20-+50 | 20 | 0.7@1310, 0.75@1550 | ≤-35 | ≤±2 | ≤-9.5 |
