300-1100nm UV-enhanced Silicon Avalanche Photodetector
UV-enhanced silicon avalanche photodetector with 3 mm active area, very high gain and UV enhancement at 355 nm
Model：APD12703
Tags：
UV-enhanced photodetector
355nm photodetector
fluorescence photodetector
400-1100nm
800-1700nm
Free-Space
APD
Manual： Download
Contact：
Huang
Email: Hqy@ybphotonics.com
Huang
Email: Hqy@ybphotonics.com
Product Info
Introduction
The APD12703 series photodetector uses a 3mm diameter large target APD photodetector with very high gain and UV enhancement at 355nm, very suitable for fluorescence detection and other scenarios.
1. Overview
The APD12703 is based on an avalanche photodiode with a large 3mm photosensitive surface, capable of detecting light as well as its faintness and UV enhancement at 355nm.
The APD12703 has an integrated thermistor with adjustable bias voltage to compensate for the effect of temperature changes on the M-factor.
2. Features
- Temperature Compensation
- UV Enhanced
- Optional FC flange
- High sensitivity
- Large optical size (3mm)
- 30mm optical cage system
3. Applications
- Detection of weak light signals
- Fluorescence measurement
- Chemical analyzers
4.Specifications
Items APD12703A-100k APD12703A-1.5M
Materials Si Si Wavelength 300-1000nm 300-1000nm Photosensitive diameter 3mm 3mm Responsivity @M=1 0.5A/W @ 800nm 0.5A/W @ 800nm
Bandwidth（a） DC-50kHz DC-1.5MHz
Rise time（a） 7us 250ns
Gain（a） 1.6x10^7V/W 1x10^6V/W
Saturated Optical power 310nW 5uW
Noise voltage（a） 22mVpp 20mVpp
Maximum Output Voltage（a） 5V 5V
NEP 0.5pW/√Hz 0.82pW/√Hz
Operating voltage 9-12V 9-12V
Operating Current <200mA <200mA
Output Impedance 50Ω 50Ω
Output coupling mode DC DC
Output connector SMA female SMA female
Operating temperature -10~65℃ -10~65℃
Storage temperature -40~85℃ -40~85℃
Remarks:
a For high resistance loads
5. Mechanical dimensions
6. Response curve
Note: Response curves are typical values for reference only.
APD12703A-1 XRF experimental oscilloscope screenshot
The APD12703 series photodetector uses a 3mm diameter large target APD photodetector with very high gain and UV enhancement at 355nm, very suitable for fluorescence detection and other scenarios.
1. Overview
The APD12703 is based on an avalanche photodiode with a large 3mm photosensitive surface, capable of detecting light as well as its faintness and UV enhancement at 355nm.
The APD12703 has an integrated thermistor with adjustable bias voltage to compensate for the effect of temperature changes on the M-factor.
2. Features
- Temperature Compensation
- UV Enhanced
- Optional FC flange
- High sensitivity
- Large optical size (3mm)
- 30mm optical cage system
3. Applications
- Detection of weak light signals
- Fluorescence measurement
- Chemical analyzers
4.Specifications
| Items | APD12703A-100k | APD12703A-1.5M |
|---|---|---|
| Materials | Si | Si |
| Wavelength | 300-1000nm | 300-1000nm |
| Photosensitive diameter | 3mm | 3mm |
| Responsivity @M=1 | 0.5A/W @ 800nm | 0.5A/W @ 800nm |
| Bandwidth（a） | DC-50kHz | DC-1.5MHz |
| Rise time（a） | 7us | 250ns |
| Gain（a） | 1.6x10^7V/W | 1x10^6V/W |
| Saturated Optical power | 310nW | 5uW |
| Noise voltage（a） | 22mVpp | 20mVpp |
| Maximum Output Voltage（a） | 5V | 5V |
| NEP | 0.5pW/√Hz | 0.82pW/√Hz |
| Operating voltage | 9-12V | 9-12V |
| Operating Current | <200mA | <200mA |
| Output Impedance | 50Ω | 50Ω |
| Output coupling mode | DC | DC |
| Output connector | SMA female | SMA female |
| Operating temperature | -10~65℃ | -10~65℃ |
| Storage temperature | -40~85℃ | -40~85℃ |
Remarks:
a For high resistance loads

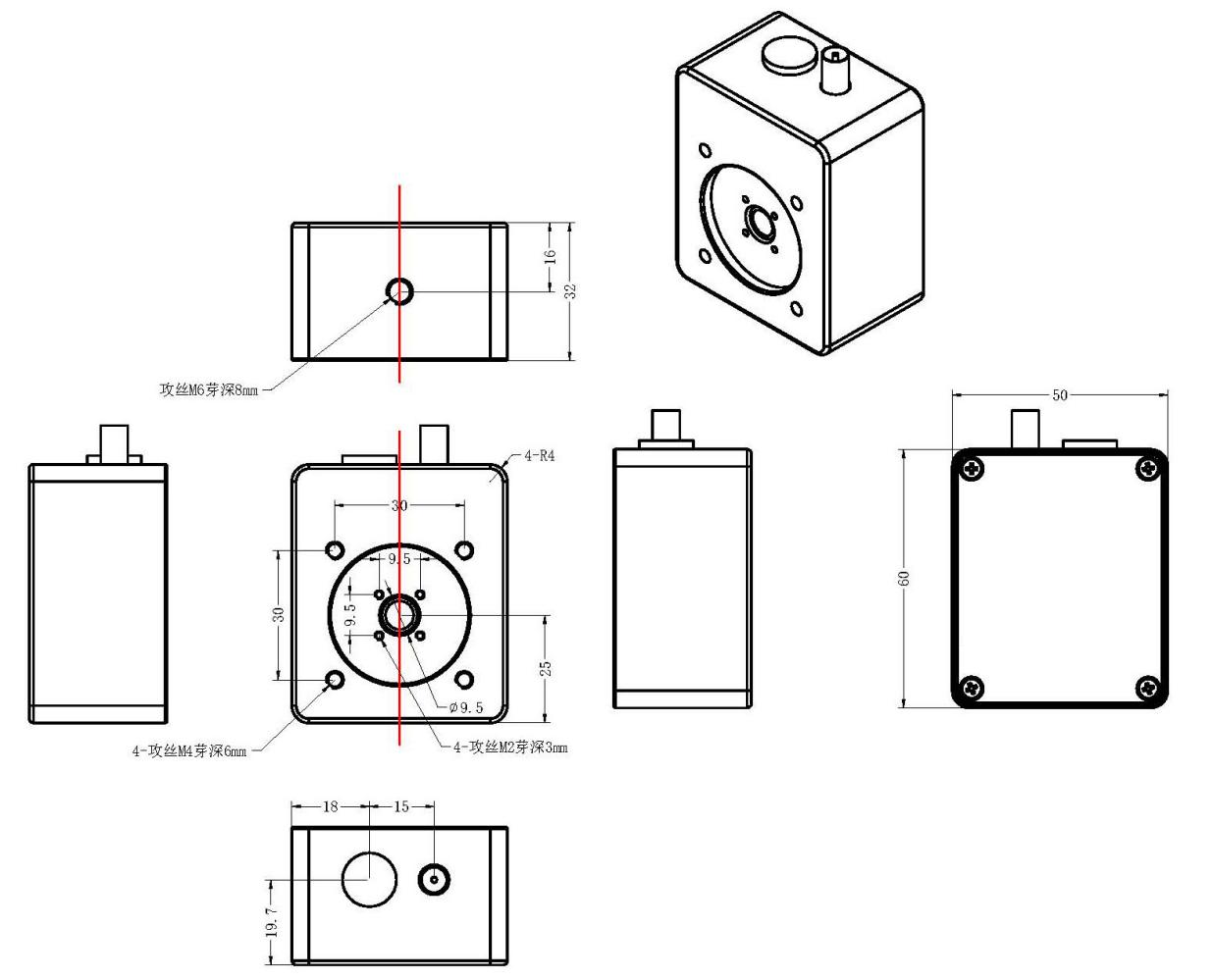

5. Mechanical dimensions

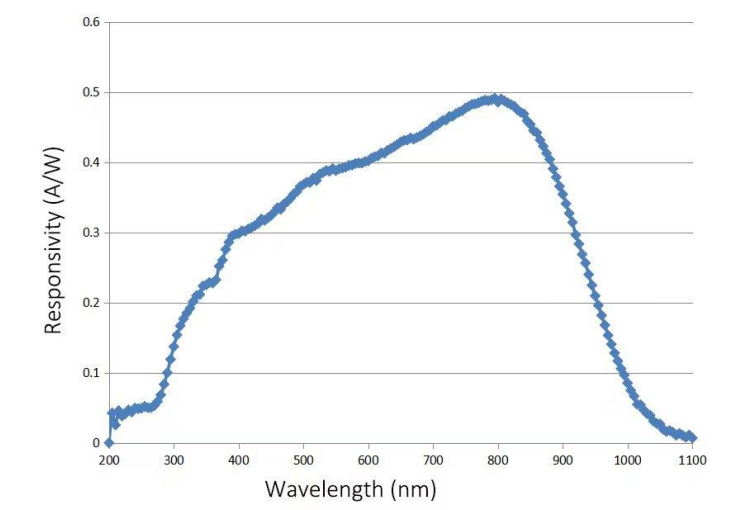

6. Response curve
Note: Response curves are typical values for reference only.

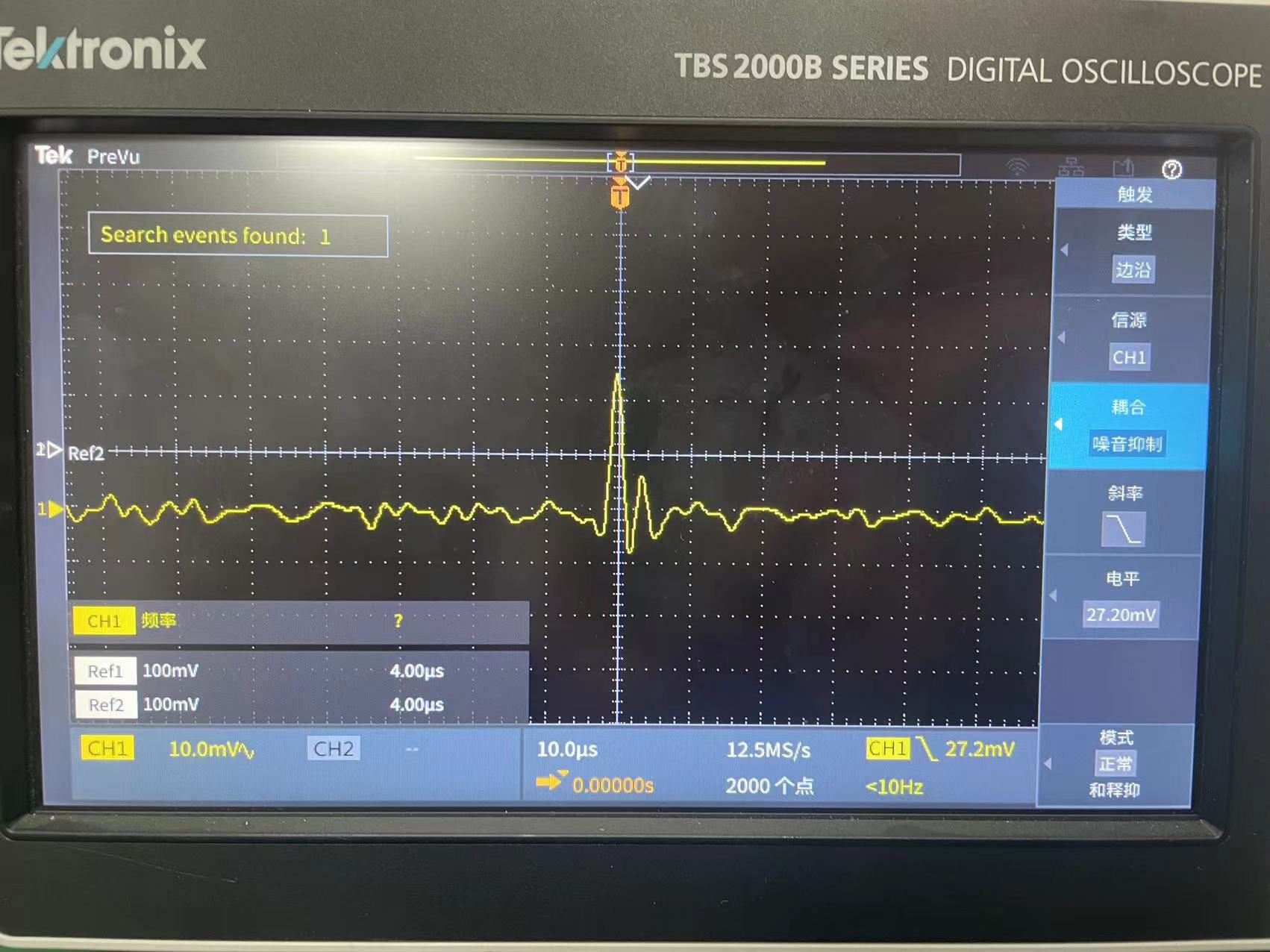

APD12703A-1 XRF experimental oscilloscope screenshot
