DAQ for Raman DTS with Ethernet interface 250MSps pulse-triggered output
A DAQ board for Distributed Temperature Sensing (DTS) with 3 models of 100M/200M/250M and built-in averaging algorithm.
Huang
Email: Hqy@ybphotonics.com
Download>>
Product Info

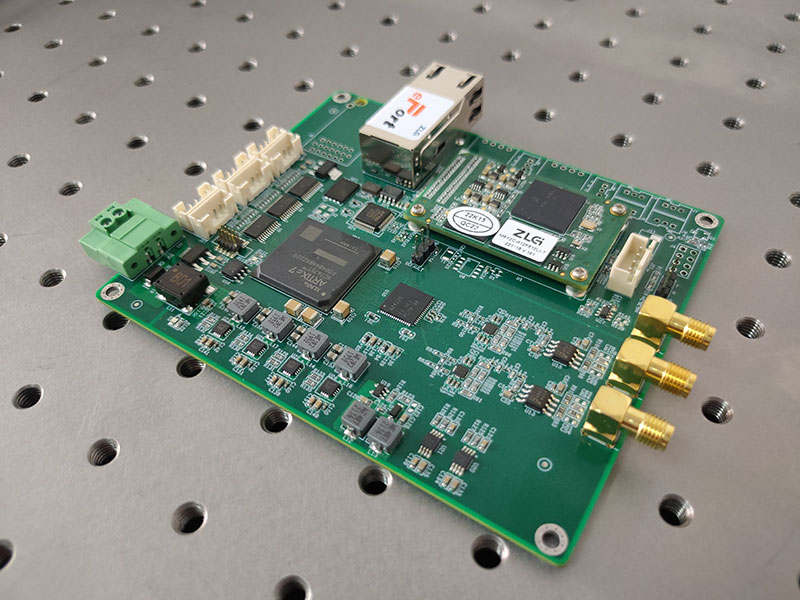

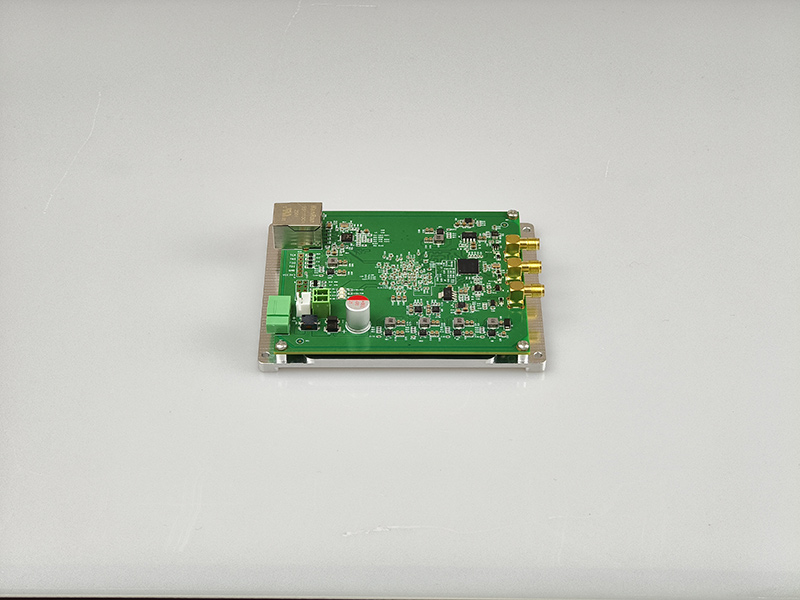

Introduction
The GY-DTS-X is a special DAQ card for DTS system，With 100/200/250MSps sampling rate. It adopts 100Mbps network port for data transmission，Built-in averaging function with a high signal-to-noise ratio. the maximum number of averaging can be up to 65536 times.
Download
DTS high-speed data acquisition card (DAQ).pdf download
Specification
- 12bits dual-channel simultaneous real-time sampling
- 100/200/250MSps sampling rate
- DC coupling, 50Ω input impedance
- ±2V input voltage range
- Support trigger input/output
- 100Mbps Ethernet port, TCP transmission protocol
- Support 32768 point acquisition per channel
- Built-in data averaging engine, maximum averaging times 65536

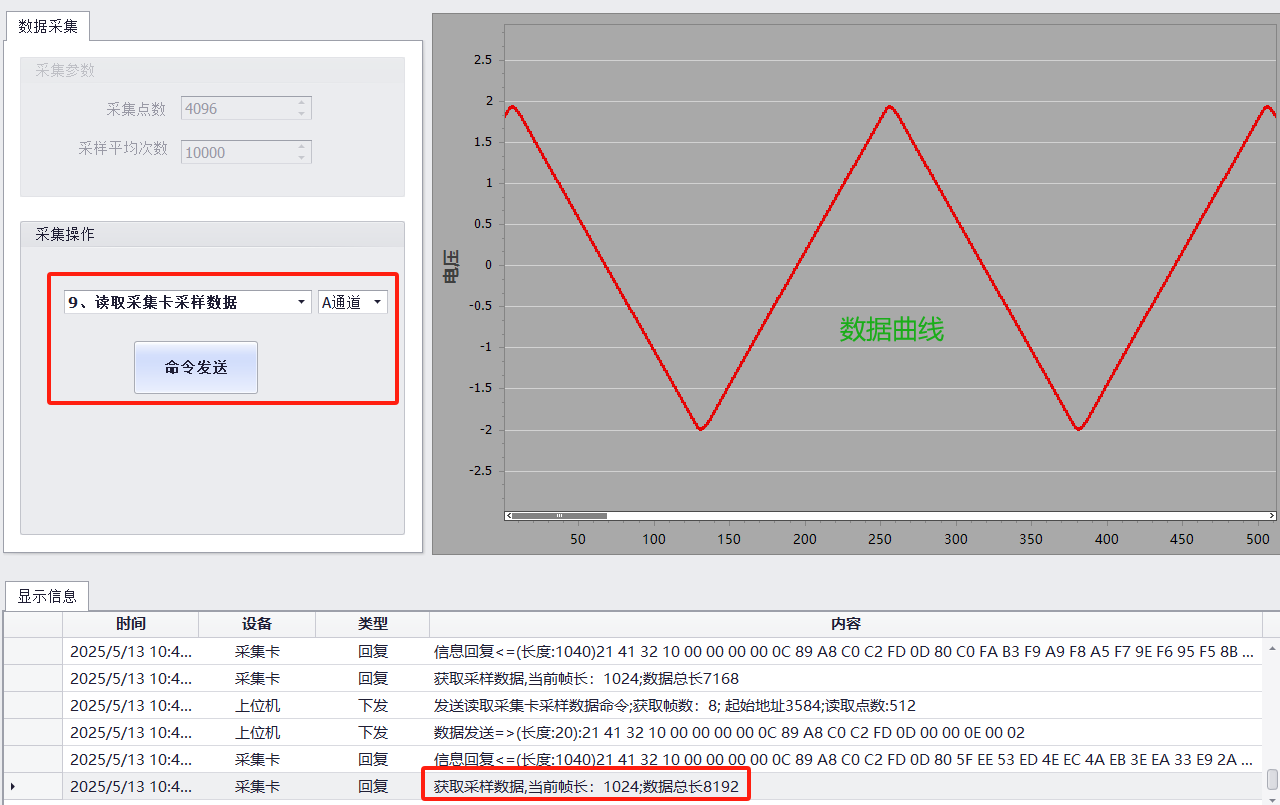

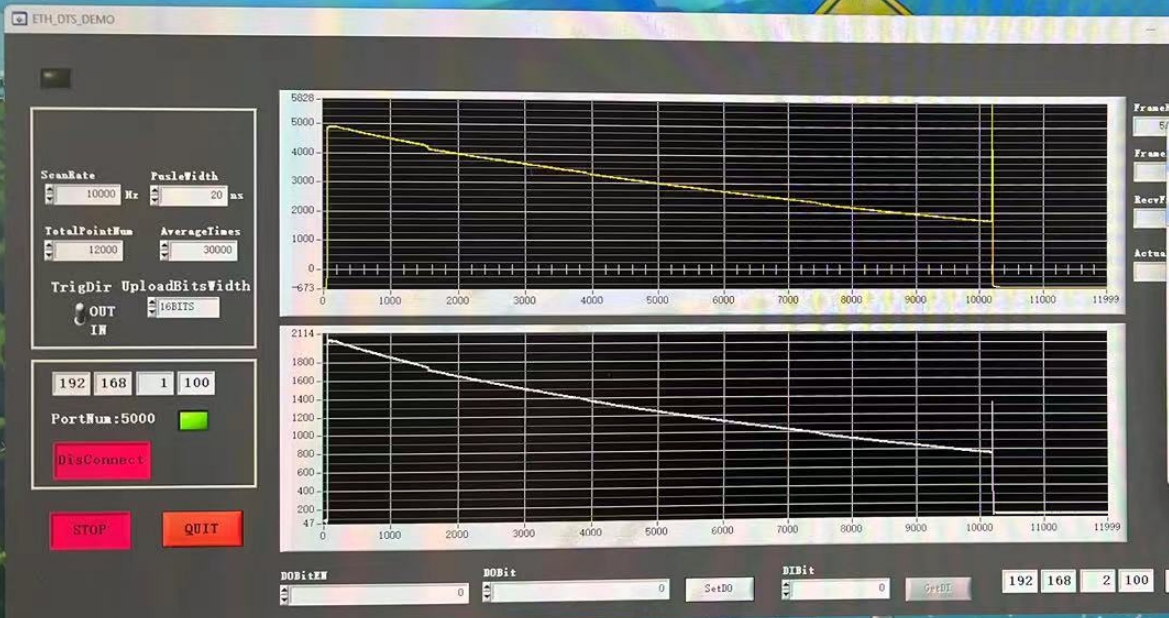

Overview
GY-DTS is a DTS data acquisition card with 100/200/250MSps sampling rate. It adopts 100Mbps network port for data transmission and uses TCP transmission protocol for stable and reliable data transmission. Built-in averaging function with high signal-to-noise ratio. Each channel supports 32768 point acquisition, and the maximum number of averaging can be up to 65536 times.

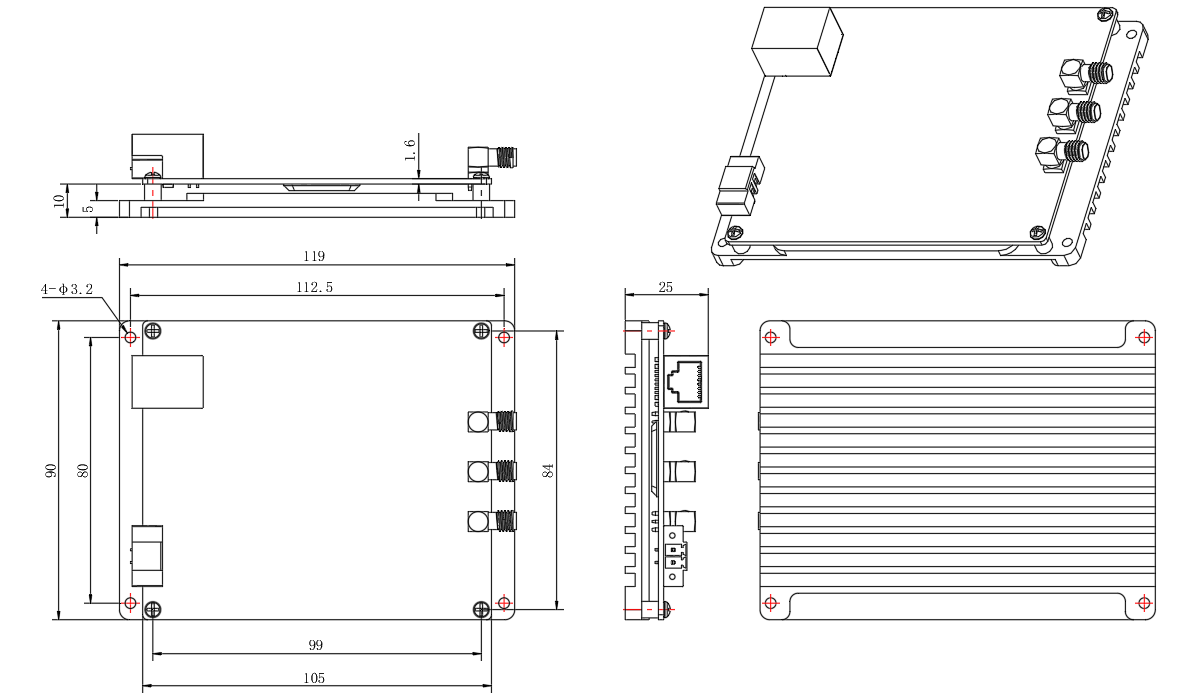

Pin Definitions
PIN Description J18 Channel 0 Analog Input (SMA)
J19 Channel 1 Analog Input (SMA)
J22
Trigger Input/Output (SMA)
J21.1
5V # Power connector (3.81 pin spacing)
J21.2
GND #Power connector (3.81 pin spacing)
Ordering Guide
PN Description GY-DTS-100 2-channel input, 100MSps GY-DTS-200 2-channel input, 200MSps GY-DTS-250 2-channel input, 250MSps
Recommended Module Products for DTS Systems
Product Name
Model Description
Pulsed Laser 1550nm 30W Peak Power For DTS
DTS-LASER-1550-30
1550nm, pulsed laser, maximum power peak: 30W
Dual Port Raman DTS InGaAS APD Receiver Module
DTS-APD-200M Multiple bandwidth options, dual ports, built-in temperature compensation
100/200M DTS dedicated data acquisition card
GY-DTS-X
The GY-DTS-X is a special DAQ card for DTS system，With 100/200/250MSps sampling rate. It adopts 100Mbps network port for data transmission
The GY-DTS-X is a special DAQ card for DTS system，With 100/200/250MSps sampling rate. It adopts 100Mbps network port for data transmission，Built-in averaging function with a high signal-to-noise ratio. the maximum number of averaging can be up to 65536 times.
Download
DTS high-speed data acquisition card (DAQ).pdf download
Specification
- 12bits dual-channel simultaneous real-time sampling
- 100/200/250MSps sampling rate
- DC coupling, 50Ω input impedance
- ±2V input voltage range
- Support trigger input/output
- 100Mbps Ethernet port, TCP transmission protocol
- Support 32768 point acquisition per channel
- Built-in data averaging engine, maximum averaging times 65536
Overview
GY-DTS is a DTS data acquisition card with 100/200/250MSps sampling rate. It adopts 100Mbps network port for data transmission and uses TCP transmission protocol for stable and reliable data transmission. Built-in averaging function with high signal-to-noise ratio. Each channel supports 32768 point acquisition, and the maximum number of averaging can be up to 65536 times.
Pin Definitions
| PIN | Description |
|---|---|
| J18 | Channel 0 Analog Input (SMA) |
| J19 | Channel 1 Analog Input (SMA) |
| J22 | Trigger Input/Output (SMA) |
| J21.1 | 5V # Power connector (3.81 pin spacing) |
| J21.2 | GND #Power connector (3.81 pin spacing) |
Ordering Guide
| PN | Description |
|---|---|
| GY-DTS-100 | 2-channel input, 100MSps |
| GY-DTS-200 | 2-channel input, 200MSps |
| GY-DTS-250 | 2-channel input, 250MSps |
Recommended Module Products for DTS Systems
| Product Name | Model | Description |
|---|---|---|
| Pulsed Laser 1550nm 30W Peak Power For DTS | DTS-LASER-1550-30 | 1550nm, pulsed laser, maximum power peak: 30W |
| Dual Port Raman DTS InGaAS APD Receiver Module | DTS-APD-200M | Multiple bandwidth options, dual ports, built-in temperature compensation |
| 100/200M DTS dedicated data acquisition card | GY-DTS-X | The GY-DTS-X is a special DAQ card for DTS system，With 100/200/250MSps sampling rate. It adopts 100Mbps network port for data transmission |
