OTDR module (40db) for fiber optic link monitoring, for easy secondary development
OTDR module is mainly used to measure the length of fiber optic cable, transmission loss, and can accurately locate the event point and fault point in the fiber optic line, which is convenient for secondary development.
Huang
Email: Hqy@ybphotonics.com
Product Info
Introduction
Overview

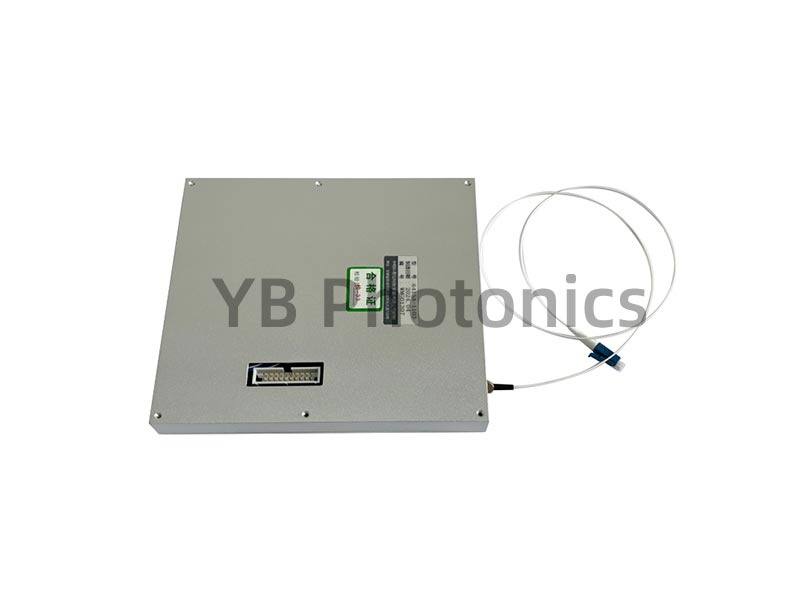

OTDR-6415A is a test module for fiber optic cable monitoring system. The product is mainly used to measure the length of fiber optic cable, transmission loss, splice loss and other physical characteristics of optical fiber, and can accurately locate the event point and fault point in the fiber optic line.
It is widely used in the engineering construction, maintenance test and emergency repair of fiber optic communication system, the development and production test of fiber optic cable.
The appearance structure of OTDR-6415A is made of aluminum alloy material, which is sturdy and durable. The product has general-purpose electrical interface and FC/PC optical interface. It is equipped with two communication interfaces: Ethernet and RS232. The RS232 interface is used to obtain product information, view and set the initial IP address;
The Ethernet interface is used to control the whole module and realize the sending of commands and data transmission.
Main features
- Modular, small size, light weight, easy to carry;
- Event blindness ≤ 1.5m, testing fiber optic patch cords with ease;
- Maximum dynamic range ≥ 45dBm, can realize long-distance link testing;
- Universal Ethernet, RS232 interface;
- The underlying control functions and dynamic link library, especially suitable for secondary development.
Electrical interface
The modular OTDR has a form factor of approximately 140mm x 160mm x 19mm, and the interface consists of an FC/PC optical interface and a 20PIN (2.54mm pitch) pin electrical interface.
No.
I/O
Pin Name
Desc No.
I/O
Pin Name
Desc
1 I
+12V
power supply
11
NC
2 I
+12V
power supply
12 I
232-RX
RS232
3
GND
13 O
232-TX
RS232
4
GND
14
NC
5 I
E-RX+
Ethernet
15
NC
6 I
E-RX-
Ethernet
16
NC
7 O
E-TX+
Ethernet
17
NC
8 O
E-TX-
Ethernet
18
NC
9
GND
19 I
RESET
Reset
10
GND
20
GND
Typical application
OTDR-6415A Modular Optical Time Domain Reflectometer is mainly used in fiber optic cable monitoring system, which is suitable for users to develop as a test module in monitoring system.
OTDR-6415A Modular Optical Time Domain Reflectometer can also be used as a small module OTDR to test the loss, length and event points of fiber optic links by connecting with the adapter board assembly.
Technical Specification
Maximum dynamic range
See "6415A OTDR Modules Technical Specification Module" for details.
ranging accuracy
± (0.75 + sampling interval + 0.003% x distance) (excluding refractive index placement error) (m)
Ranging resolution
0.125 m、0.25 m、0.5 m、1 m、2 m、4 m、8 m、16m
Test range
0.4 km、0.8 km、1.6 km、3.2 km、8 km、16 km、32 km、64 km、128 km、256km
Test pulse
3ns、5 ns、10 ns、30 ns、80 ns、160 ns、320 ns、640 ns、1280 ns、5120 ns、10240ns、20480ns
Maximum number of sampling points
256k
linearity
0.05dB/dB
Refractive index setting range
1.00000～1.99999
optical output interface
FC/UPC (standard)
electrical interface
Ethernet, RS232
Power supply
DC: 12V～20V (>1A, voltage ripple ≤50mV)
Maximum power consumption
≤6W
Maximum outside dimensions
W×H×D≤141mm×162mm×19mm
Weight
≤0.5kg
Environmental adaptation
Operating temperature: -10℃～50℃, storage temperature: -40℃～70℃, relative humidity: 5%～95%. No condensation
Ordering Information
Mainframe
6415A OTDR Module
standard equipment
No. Name Description 1 control software
Realization module OTDR upper control, test
2 user manual
3 Certificate of Conformity
module number
Module number 1
operating wavelength
optical fiber
Dynamic Range 2
Incident blindness 3
Attenuation blindness 4
6415A–1102
1550nm
43
1.5
10
6415A–1103
1550nm
40 1.5
10
6415A–1105
1625nm (built-in filter)
38 1.5
10
6415A–1106
1625nm (built-in filter)
38 1.5
10
6415A–1108
1550nm
48 1.5
10
6415A–1110
1383nm
36 1.5
10
6415A–1111
1625nm
42 1.5
10
6415A–1201
850nm
multi-mode
24 1.5
10
6415A–2101
1310/1550nm
single mode
42 / 40
1.5
10
6415A–2103
1310/1550nm
single mode
37 / 35
1.5
10
6415A–2104
1550/1625nm
single mode
38 / 38
1.5
10
Note:
1. The standard module must and can only choose one.
2. Ambient temperature 23℃±2℃, maximum test pulse width, average number of times greater than 500, SNR = 1.
3. Blind test mode (range ≤ 1km, pulse width 5ns or smaller pulse), fiber end face reflection loss ≥ 40dB, typical value.
4. Blind test mode (range ≤ 1km, pulse width 5ns or less), fiber endface reflection loss ≥ 50dB (multimode ≥ 40dB), typical value.
Options.
No. Name Description 6415A-H01
Adapter Plate Assembly
Adapter board and wiring for separate control module OTDR.
6515A-XX XX-选件

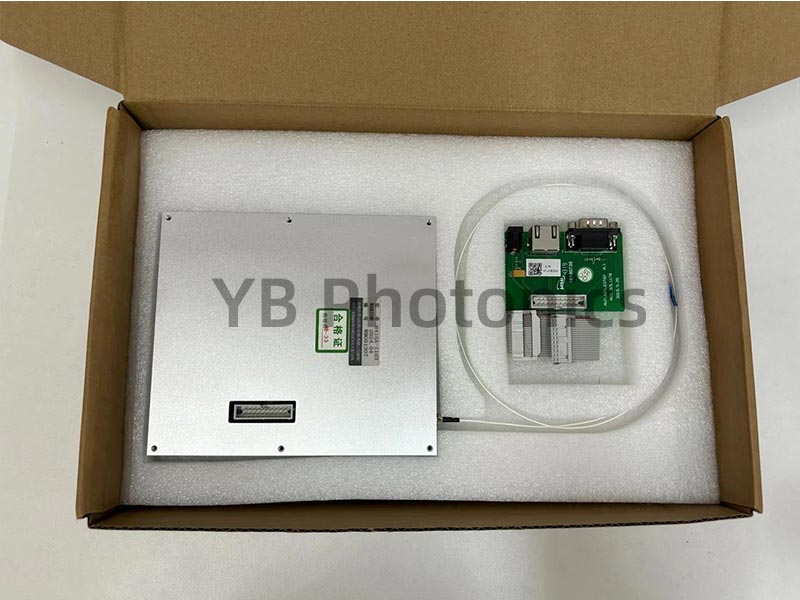

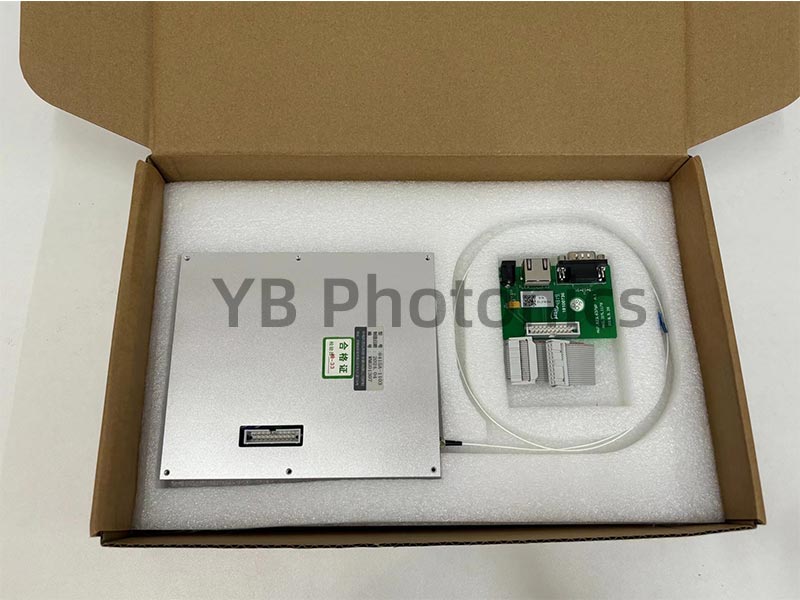

Shipment Packaging Pictures
Overview
OTDR-6415A is a test module for fiber optic cable monitoring system. The product is mainly used to measure the length of fiber optic cable, transmission loss, splice loss and other physical characteristics of optical fiber, and can accurately locate the event point and fault point in the fiber optic line.
It is widely used in the engineering construction, maintenance test and emergency repair of fiber optic communication system, the development and production test of fiber optic cable.
The appearance structure of OTDR-6415A is made of aluminum alloy material, which is sturdy and durable. The product has general-purpose electrical interface and FC/PC optical interface. It is equipped with two communication interfaces: Ethernet and RS232. The RS232 interface is used to obtain product information, view and set the initial IP address;
The Ethernet interface is used to control the whole module and realize the sending of commands and data transmission.
Main features
- Modular, small size, light weight, easy to carry;
- Event blindness ≤ 1.5m, testing fiber optic patch cords with ease;
- Maximum dynamic range ≥ 45dBm, can realize long-distance link testing;
- Universal Ethernet, RS232 interface;
- The underlying control functions and dynamic link library, especially suitable for secondary development.
Electrical interface
The modular OTDR has a form factor of approximately 140mm x 160mm x 19mm, and the interface consists of an FC/PC optical interface and a 20PIN (2.54mm pitch) pin electrical interface.
| No. | I/O | Pin Name | Desc | No. | I/O | Pin Name | Desc |
|---|---|---|---|---|---|---|---|
| 1 | I | +12V | power supply | 11 | NC | ||
| 2 | I | +12V | power supply | 12 | I | 232-RX | RS232 |
| 3 | GND | 13 | O | 232-TX | RS232 | ||
| 4 | GND | 14 | NC | ||||
| 5 | I | E-RX+ | Ethernet | 15 | NC | ||
| 6 | I | E-RX- | Ethernet | 16 | NC | ||
| 7 | O | E-TX+ | Ethernet | 17 | NC | ||
| 8 | O | E-TX- | Ethernet | 18 | NC | ||
| 9 | GND | 19 | I | RESET | Reset | ||
| 10 | GND | 20 | GND |
Typical application
OTDR-6415A Modular Optical Time Domain Reflectometer is mainly used in fiber optic cable monitoring system, which is suitable for users to develop as a test module in monitoring system.
OTDR-6415A Modular Optical Time Domain Reflectometer can also be used as a small module OTDR to test the loss, length and event points of fiber optic links by connecting with the adapter board assembly.
Technical Specification
| Maximum dynamic range | See "6415A OTDR Modules Technical Specification Module" for details. |
|---|---|
| ranging accuracy | ± (0.75 + sampling interval + 0.003% x distance) (excluding refractive index placement error) (m) |
| Ranging resolution | 0.125 m、0.25 m、0.5 m、1 m、2 m、4 m、8 m、16m |
| Test range | 0.4 km、0.8 km、1.6 km、3.2 km、8 km、16 km、32 km、64 km、128 km、256km |
| Test pulse | 3ns、5 ns、10 ns、30 ns、80 ns、160 ns、320 ns、640 ns、1280 ns、5120 ns、10240ns、20480ns |
| Maximum number of sampling points | 256k |
| linearity | 0.05dB/dB |
| Refractive index setting range | 1.00000～1.99999 |
| optical output interface | FC/UPC (standard) |
| electrical interface | Ethernet, RS232 |
| Power supply | DC: 12V～20V (>1A, voltage ripple ≤50mV) |
| Maximum power consumption | ≤6W |
| Maximum outside dimensions | W×H×D≤141mm×162mm×19mm |
| Weight | ≤0.5kg |
| Environmental adaptation | Operating temperature: -10℃～50℃, storage temperature: -40℃～70℃, relative humidity: 5%～95%. No condensation |
Ordering Information
Mainframe
6415A OTDR Module
standard equipment
| No. | Name | Description |
|---|---|---|
| 1 | control software | Realization module OTDR upper control, test |
| 2 | user manual | |
| 3 | Certificate of Conformity |
module number
| Module number 1 | operating wavelength | optical fiber | Dynamic Range 2 | Incident blindness 3 | Attenuation blindness 4 |
|---|---|---|---|---|---|
| 6415A–1102 | 1550nm | 43 | 1.5 | 10 | |
| 6415A–1103 | 1550nm | 40 | 1.5 | 10 | |
| 6415A–1105 | 1625nm (built-in filter) | 38 | 1.5 | 10 | |
| 6415A–1106 | 1625nm (built-in filter) | 38 | 1.5 | 10 | |
| 6415A–1108 | 1550nm | 48 | 1.5 | 10 | |
| 6415A–1110 | 1383nm | 36 | 1.5 | 10 | |
| 6415A–1111 | 1625nm | 42 | 1.5 | 10 | |
| 6415A–1201 | 850nm | multi-mode | 24 | 1.5 | 10 |
| 6415A–2101 | 1310/1550nm | single mode | 42 / 40 | 1.5 | 10 |
| 6415A–2103 | 1310/1550nm | single mode | 37 / 35 | 1.5 | 10 |
| 6415A–2104 | 1550/1625nm | single mode | 38 / 38 | 1.5 | 10 |
Note:
1. The standard module must and can only choose one.
2. Ambient temperature 23℃±2℃, maximum test pulse width, average number of times greater than 500, SNR = 1.
3. Blind test mode (range ≤ 1km, pulse width 5ns or smaller pulse), fiber end face reflection loss ≥ 40dB, typical value.
4. Blind test mode (range ≤ 1km, pulse width 5ns or less), fiber endface reflection loss ≥ 50dB (multimode ≥ 40dB), typical value.
Options.
| No. | Name | Description |
|---|---|---|
| 6415A-H01 | Adapter Plate Assembly | Adapter board and wiring for separate control module OTDR. |
6515A-XX XX-选件
Shipment Packaging Pictures
