DAS related photodetectors and fiber optic sensing products
DAS related products
Cost-Effective DAQ Boards For Distributed Acoustic Sensor DAS
[DAQ] 2024-02-16 04:27:39
Data Acquisition Card for Distributed Acoustic Fiber Sensing (DAS) with Pulse Output sends TTL pulses directly to the AOM driver, eliminating the need for an additional pulse generator and greatly reducing system complexity.
1GSps dual-channel high-speed data acquisition card
[DAQ] 2024-02-16 04:24:51
The DAQ board, which can be set up to 1G sample rate and has built-in trigger output and input interfaces, can be used for applications such as DAS distributed acoustic sensing system with 200M AOM acquisition or LIDAR.
100MSps high speed DAQ card for DVS
[DAQ] 2024-02-16 04:29:34
This is a data acquisition card for distributed fiber optic vibration monitoring system (DVS) with built-in TTL pulse signal trigger output function to provide signal to the AOM driver, saving extra signal generator (AWG) and reducing the integration difficulty and complexity of the system.
DVS/DAS Integrated Optical Module
[DVS Module] 2024-04-15 23:49:52
YB Photonics’s DVS/DAS integrated optical module highly integrates inside our own proprietary ultra-narrow linewidth laser, pulsed EDFA, Raman amplifier, AOM and other optical components in single compact package.
Distributed Optical Fiber Vibration Sensor Module
[DVS Module] 2024-02-16 08:27:14
The DVS integrated module of distributed fiber optic vibration sensing system integrates ultra-narrow linewidth light source, AOM acousto-optic modulator, pulsed EDFA, optical circulator, Raman amplifier, DVS coherent receiver module, etc., which only needs to be matched with a high-speed data acquisition card to make a set of DVS distributed vibration measurement system.
DAS related articles
What are DVS, DTS, DAS, FBG in fiber optic sensing
What are the DVS, DTS, DAS, FBG of fiber optic sensing, what are their technical features, and what are their main uses.

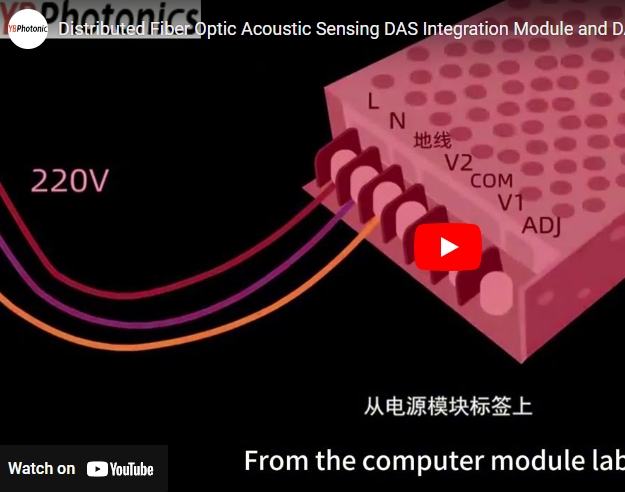

DAS Integration Module and DAQ Installation and Wiring Tutorials
Distributed fiber optic acoustic sensing system installation and wiring tutorial, DAS integrated module and DAQ board wiring steps and precautions.
YB-DAS-250-DAQ Distributed Fiber Optic Vibration Data Acquisition Card Description
YB-DAS-250-DAQ Distributed Fiber Optic Vibration Data Acquisition Card Description of how long the fiber optic length can be supported
Difference Between DAS and DVS
What was the difference between DAS and DVS before. How easy it is to develop and how it compares in terms of sensitivity.
[Tutorial] How to wire the DVS/DAS system installation process?
A tutorial on how to wire a distributed fiber optic vibration sensing system DVS/DAS, and notes related to the wiring process.
What programming language is used for the software of DVS/DAS system
The software programming of DVS/DAS system is actually for the interface programming of data acquisition card, you can use C, C++, Python, labview, matlab, etc. for programming.
What are the laser requirements for the DVS/DAS system?
DVS/DAS system with ultra-narrow linewidth lasers, 1550nm 3k linewidth 20mW lasers are usually used in our system.
Component Configuration of a Distributed Fiber Optic Acoustic Sensing DAS
Distributed fiber optic acoustic sensing system DAS configuration of 2 ways, one is 80M AOM + 250M DAQ, the other is 200M AOM + 1G DAQ
