Wiring Diagram for the Acquisition Card
2026-06-21 22:35:07
Keywords：
GY-DAQ-2480-E

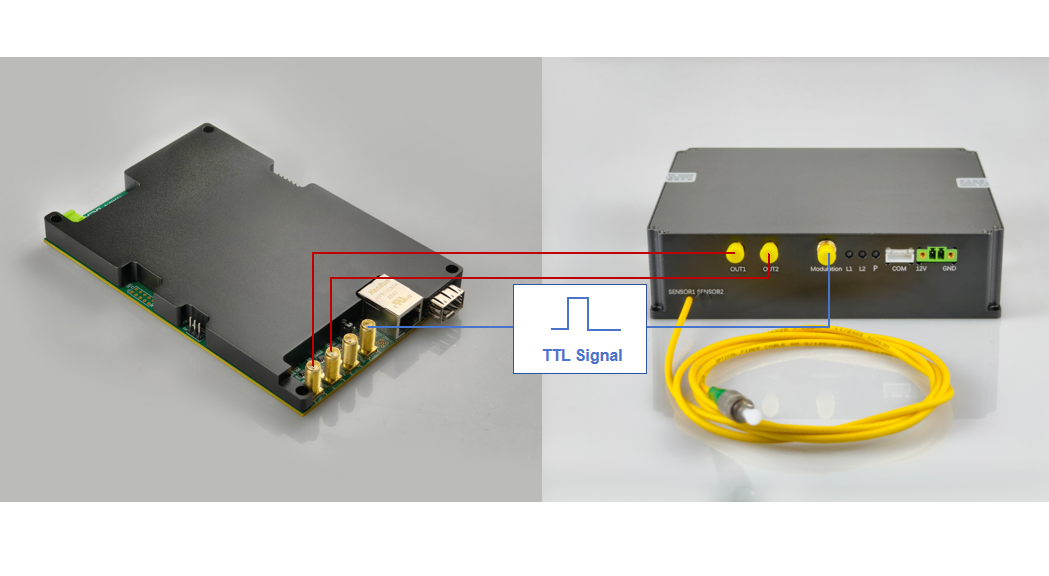

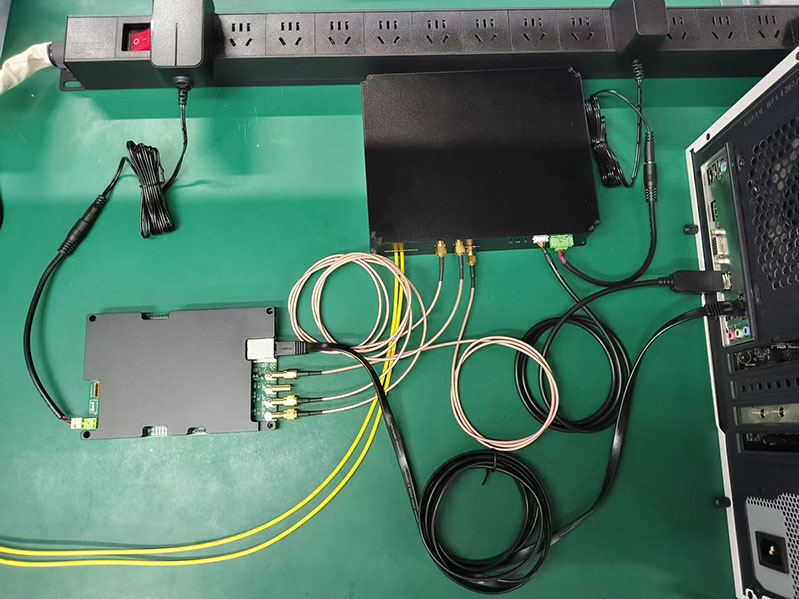

Connecting the DAS acquisition card to the DAS module
- Connect Channel 1 (Ch1) of the acquisition card to Channel 1 (Ch1) of the DAS module.
- Connect Channel 2 (Ch2) of the acquisition card to Channel 2 (Ch2) of the DAS module (if the DAS module has only one sensor channel, this connection is not necessary).
- The Trigger Out SMA on the acquisition card is connected to the modulation Port of the DAS module.
