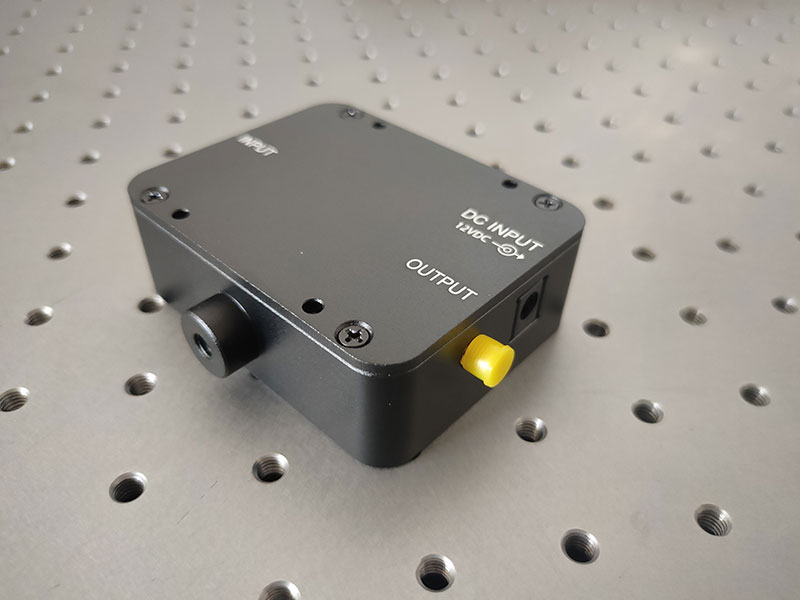

PD10C Pin Photodetector Fiber-coupled Bandwidth 50 to 700 kHz
Previous Generation, View Alternatives
The PD10C series is a kHz bandwidth low speed photodetector module with fiber optic FC interface input that can detect optical power down to the nW level. Ideally suited for low power measurements.
Model：PD10C
Contact：
Huang
Email: Hqy@ybphotonics.com
Huang
Email: Hqy@ybphotonics.com
Product Info
Introduction
The PD10C series are low-speed photodetector modules with a bandwidth at the kHz level and fiber-coupled inputs that can detect optical power down to the nW level.
PD10C has 2 sub-series VIS visible and NIR near infrared, which can detect optical fiber input light at wavelengths of 400-1100nm and 800-1700nm respectively.
In addition to the standard products, we support customized parameters for this series, and can fine-tune the parameters (e.g. bandwidth, gain, etc.) for you to better suit your application.It is also possible to customize the photodetector module for multiple channels.
Download
PD10C-Spec.pdf download
Features
- High temperature stability
- Low noise, high gain
- All-metal housing, excellent shielding performance
- Customizable multi-channel modules
Application
- Detection of low light signals
- Detection of laser pulses
- RF and pulse waveform extraction of laser light sources

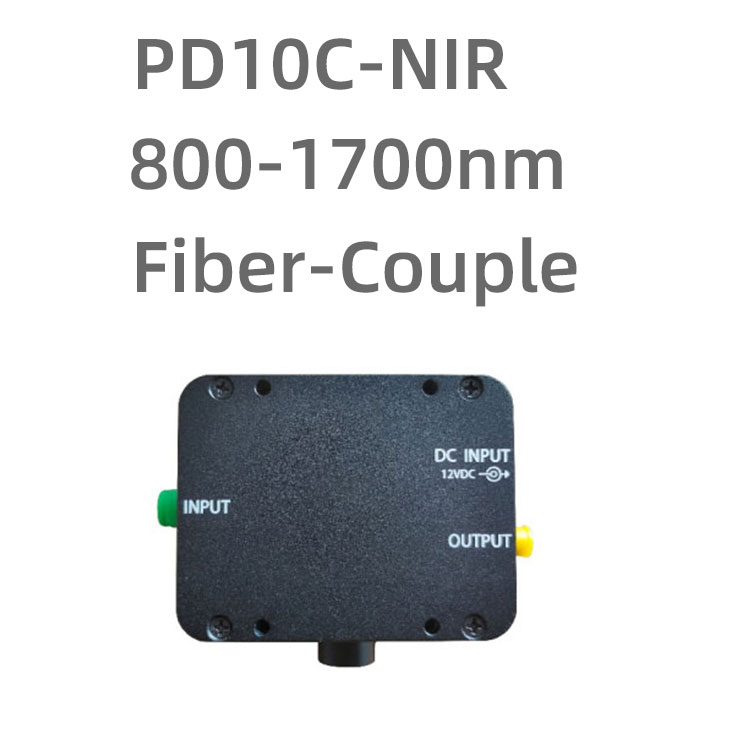

PD10C-NIR
Item PD10C-NIR-50k PD10C-NIR-300k PD10C-NIR-700k Materials
InGaAs InGaAs InGaAs Wavelength range
800-1700nm 800-1700nm 800-1700nm Input Connector
FC FC FC Responsiveness
0.9A/W @ 1550nm 0.9A/W @ 1550nm 0.9A/W @ 1550nm Bandwidth
DC-50kHz DC-300kHz DC-700kHz Rise time
7us 1us 500ns Maximum Gain@HiZ
0.9x10^6V/W 1.8x10^5V/W 4.6x10^4V/W Minimum optical power
-53.6dBm (4.4nw) -47.8dBm (16.7nw) -43.7dBm (43nw) Saturated optical power
-23.8dBm (4.2uw) -15.6dBm (27.8uw) -6dBm (0.25mw) Output Bias Voltage@HiZ 10mV 10mV 10mV Noise voltage@HiZ <4mVpp <3mVpp <2.5mVpp Maximum output amplitude@HiZ 5.0V 5.0V 5.0V Working Voltage
12VDC ±10% 12VDC ±10% 12VDC ±10% Working current
<100mA <100mA <100mA Output connector
SMA SMA SMA Output Impedance
50Ω 50Ω 50Ω Output coupling mode
DC DC DC Working temperature
-20~65℃ -20~65℃ -20~65℃ Storage temperature
-40~85℃ -40~85℃ -40~85℃ Dimension
81mm x 64mm x 25mm（长x宽x厚） 81mm x 64mm x 25mm（长x宽x厚） 81mm x 64mm x 25mm（长x宽x厚）
PD10C-VIS
Item PD10C-VIS-50k PD10C-VIS-300k PD10C-VIS-700k Materials
Si Si Si Wavelength range 400-1100nm 400-1100nm 400-1100nm Input Connector FC FC FC Responsiveness
0.55A/W @ 850nm 0.55A/W @ 850nm 0.55A/W @ 850nm Bandwidth
DC-50kHz DC-300kHz DC-700kHz Rise time
7us 1us 500ns Maximum Gain@HiZ
0.55x10^6V/W 1.1x10^5V/W 2.8x10^4V/W Minimum optical power
-51.4dBm (7.3nw) -45.6dBm (27.3nw) -39.7dBm (107nw) Saturated optical power
-20.4dBm (9.1uw) -13.4dBm (45.5uw) -7.5dBm (0.18mw) Output Bias Voltage@HiZ 10mV 10mV 10mV Noise voltage@HiZ <4mVpp <3mVpp <2.5mVpp Maximum output amplitude@HiZ 5.0V 5.0V 5.0V Working Voltage 12VDC ±10% 12VDC ±10% 12VDC ±10% Working current <100mA <100mA <100mA Output connector SMA SMA SMA Output Impedance 50Ω 50Ω 50Ω Output coupling mode DC DC DC Working temperature -20~65℃ -20~65℃ -20~65℃ Storage temperature -40~85℃ -40~85℃ -40~85℃ Dimension 81mm x 64mm x 25mm（长x宽x厚） 81mm x 64mm x 25mm（长x宽x厚） 81mm x 64mm x 25mm（长x宽x厚）

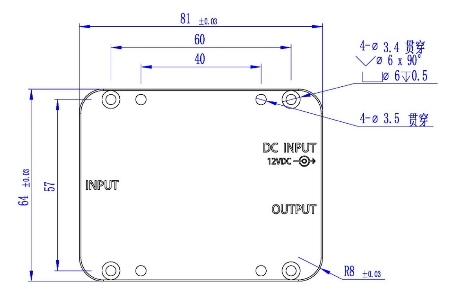

Mechanical Drawing
The PD10C series are low-speed photodetector modules with a bandwidth at the kHz level and fiber-coupled inputs that can detect optical power down to the nW level.
PD10C has 2 sub-series VIS visible and NIR near infrared, which can detect optical fiber input light at wavelengths of 400-1100nm and 800-1700nm respectively.
In addition to the standard products, we support customized parameters for this series, and can fine-tune the parameters (e.g. bandwidth, gain, etc.) for you to better suit your application.It is also possible to customize the photodetector module for multiple channels.
DownloadPD10C-Spec.pdf download
Features
- High temperature stability
- Low noise, high gain
- All-metal housing, excellent shielding performance
- Customizable multi-channel modules
Application
- Detection of low light signals
- Detection of laser pulses
- RF and pulse waveform extraction of laser light sources
PD10C-NIR
| Item | PD10C-NIR-50k | PD10C-NIR-300k | PD10C-NIR-700k |
|---|---|---|---|
| Materials | InGaAs | InGaAs | InGaAs |
| Wavelength range | 800-1700nm | 800-1700nm | 800-1700nm |
| Input Connector | FC | FC | FC |
| Responsiveness | 0.9A/W @ 1550nm | 0.9A/W @ 1550nm | 0.9A/W @ 1550nm |
| Bandwidth | DC-50kHz | DC-300kHz | DC-700kHz |
| Rise time | 7us | 1us | 500ns |
| Maximum Gain@HiZ | 0.9x10^6V/W | 1.8x10^5V/W | 4.6x10^4V/W |
| Minimum optical power | -53.6dBm (4.4nw) | -47.8dBm (16.7nw) | -43.7dBm (43nw) |
| Saturated optical power | -23.8dBm (4.2uw) | -15.6dBm (27.8uw) | -6dBm (0.25mw) |
| Output Bias Voltage@HiZ | 10mV | 10mV | 10mV |
| Noise voltage@HiZ | <4mVpp | <3mVpp | <2.5mVpp |
| Maximum output amplitude@HiZ | 5.0V | 5.0V | 5.0V |
| Working Voltage | 12VDC ±10% | 12VDC ±10% | 12VDC ±10% |
| Working current | <100mA | <100mA | <100mA |
| Output connector | SMA | SMA | SMA |
| Output Impedance | 50Ω | 50Ω | 50Ω |
| Output coupling mode | DC | DC | DC |
| Working temperature | -20~65℃ | -20~65℃ | -20~65℃ |
| Storage temperature | -40~85℃ | -40~85℃ | -40~85℃ |
| Dimension | 81mm x 64mm x 25mm（长x宽x厚） | 81mm x 64mm x 25mm（长x宽x厚） | 81mm x 64mm x 25mm（长x宽x厚） |
PD10C-VIS
| Item | PD10C-VIS-50k | PD10C-VIS-300k | PD10C-VIS-700k |
|---|---|---|---|
| Materials | Si | Si | Si |
| Wavelength range | 400-1100nm | 400-1100nm | 400-1100nm |
| Input Connector | FC | FC | FC |
| Responsiveness | 0.55A/W @ 850nm | 0.55A/W @ 850nm | 0.55A/W @ 850nm |
| Bandwidth | DC-50kHz | DC-300kHz | DC-700kHz |
| Rise time | 7us | 1us | 500ns |
| Maximum Gain@HiZ | 0.55x10^6V/W | 1.1x10^5V/W | 2.8x10^4V/W |
| Minimum optical power | -51.4dBm (7.3nw) | -45.6dBm (27.3nw) | -39.7dBm (107nw) |
| Saturated optical power | -20.4dBm (9.1uw) | -13.4dBm (45.5uw) | -7.5dBm (0.18mw) |
| Output Bias Voltage@HiZ | 10mV | 10mV | 10mV |
| Noise voltage@HiZ | <4mVpp | <3mVpp | <2.5mVpp |
| Maximum output amplitude@HiZ | 5.0V | 5.0V | 5.0V |
| Working Voltage | 12VDC ±10% | 12VDC ±10% | 12VDC ±10% |
| Working current | <100mA | <100mA | <100mA |
| Output connector | SMA | SMA | SMA |
| Output Impedance | 50Ω | 50Ω | 50Ω |
| Output coupling mode | DC | DC | DC |
| Working temperature | -20~65℃ | -20~65℃ | -20~65℃ |
| Storage temperature | -40~85℃ | -40~85℃ | -40~85℃ |
| Dimension | 81mm x 64mm x 25mm（长x宽x厚） | 81mm x 64mm x 25mm（长x宽x厚） | 81mm x 64mm x 25mm（长x宽x厚） |
Mechanical Drawing
FAQ
-
Q：Do you have an unboxing picture of the photodetector?
A：When you buy our photodetectors, we will deliver SMA to BNC RF cable, and power supply for free. -
Q: What are the advantages of your photodetectors compared to Thorlabs?
A: We support custom development and we offer better prices. -
Q: What is the lead time for photodetector modules?
A: Basically, we have more than 90% of detectors in stock, only a few models need 3 weeks lead time. -
Q: Do you support the sale of those countries, and is the shipping included?
A: Our service is available worldwide, regardless of country or region. Shipping is included. -
Q: Who are your typical customers?
A: More than 100 top universities and research institutes in China have chosen us and given us high evaluations, such as: Chinese Academy of Sciences, CEC, Tsinghua University, Peking University and other clients.
