PDA60A2 Si Free Space Photodetector 6x6mm 320-1100nm 10MHz
PDA60A2 is a Si free space coupled photodetector with response wavelength of 320-1100nm, bandwidth DC-10Mhz, target surface 6x6mm, designed for photoelectric detection, semiconductor detection industry.
Model：PDA60A2
Contact：
Huang
Email: Hqy@ybphotonics.com
Huang
Email: Hqy@ybphotonics.com
Product Info
Introduction
PDA60A2 photodetector based on 6x6mm large size target surface photodiode, response wavelength 320-1100nm, bandwidth DC-10MHz, With amplifier circuit with 10^3 gain.
Download
PDA60A2-spec.pdf download
Specifications
Model
PDA60A2
Materials
Si
Spectral range
320-1100nm
Input Interface
Free space (optional FC flange)
Active Area
6x6mm
Peak responsivity
0.5A/W @ 960nm
Bandwidth
DC-10MHz
Rise time
35ns
Max Gain
2x10^3V/A @HiZ
1x10^3V/A @50Ω
Saturated optical power@515nm
8mW
Output derating voltage
±2mV
Max. output amplitude
4V @HiZ
2V @50Ω
Operating Voltage
12VDC
Operating current
<200mA
Output connector
SMA
Output Impedance
50Ω
Output coupling method
DC
Operating temperature
-20~65℃
Storage temperature
-40~85℃

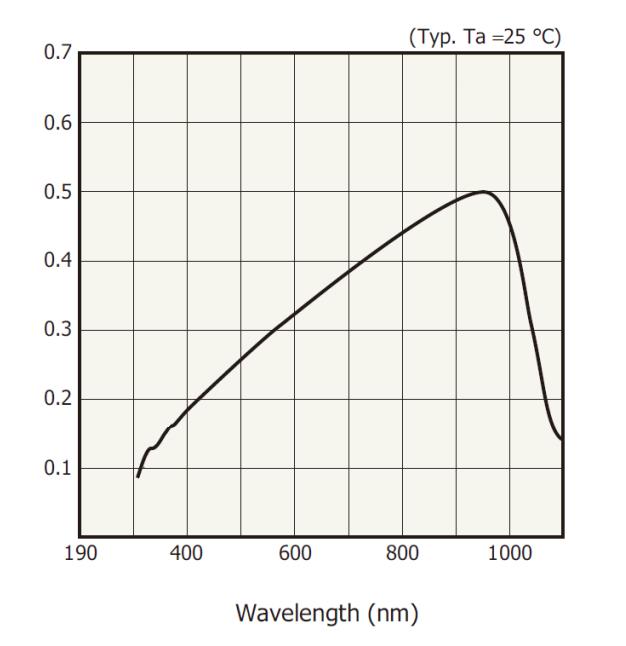

Response curve
PDA60A2 photodetector based on 6x6mm large size target surface photodiode, response wavelength 320-1100nm, bandwidth DC-10MHz, With amplifier circuit with 10^3 gain.
Download
PDA60A2-spec.pdf download
Specifications
| Model | PDA60A2 |
|---|---|
| Materials | Si |
| Spectral range | 320-1100nm |
| Input Interface | Free space (optional FC flange) |
| Active Area | 6x6mm |
| Peak responsivity | 0.5A/W @ 960nm |
| Bandwidth | DC-10MHz |
| Rise time | 35ns |
| Max Gain | 2x10^3V/A @HiZ 1x10^3V/A @50Ω |
| Saturated optical power@515nm | 8mW |
| Output derating voltage | ±2mV |
| Max. output amplitude | 4V @HiZ 2V @50Ω |
| Operating Voltage | 12VDC |
| Operating current | <200mA |
| Output connector | SMA |
| Output Impedance | 50Ω |
| Output coupling method | DC |
| Operating temperature | -20~65℃ |
| Storage temperature | -40~85℃ |
Response curve
FAQ
-
Q：Do you have an unboxing picture of the photodetector?
A：When you buy our photodetectors, we will deliver SMA to BNC RF cable, and power supply for free. -
Q: What are the advantages of your photodetectors compared to Thorlabs?
A: We support custom development and we offer better prices. -
Q: What is the lead time for photodetector modules?
A: Basically, we have more than 90% of detectors in stock, only a few models need 3 weeks lead time. -
Q: Do you support the sale of those countries, and is the shipping included?
A: Our service is available worldwide, regardless of country or region. Shipping is included. -
Q: Who are your typical customers?
A: More than 100 top universities and research institutes in China have chosen us and given us high evaluations, such as: Chinese Academy of Sciences, CEC, Tsinghua University, Peking University and other clients.
