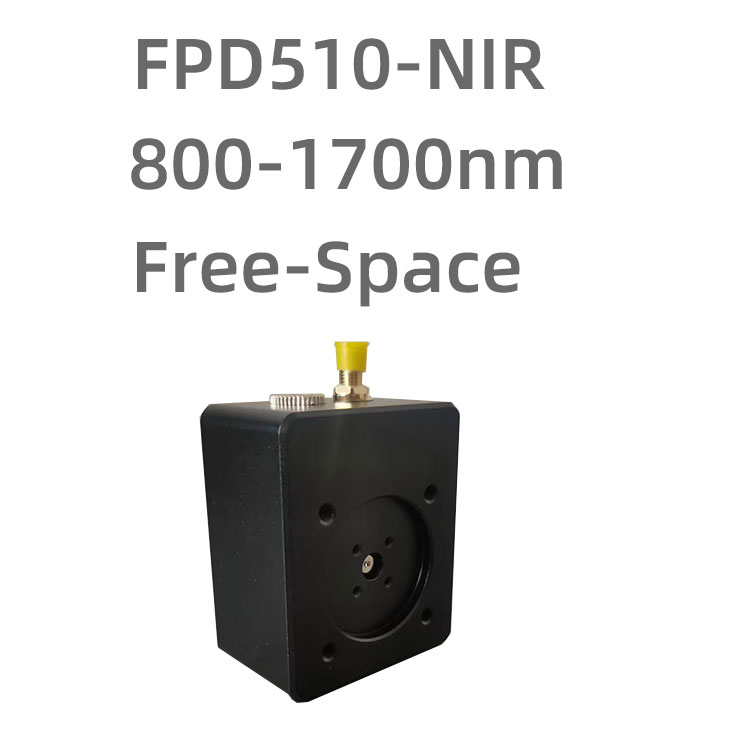

FPD510-NIR InGaAs Amplified Photodetector Module Free-Space 800-1700nm
Previous Generation, View Alternatives

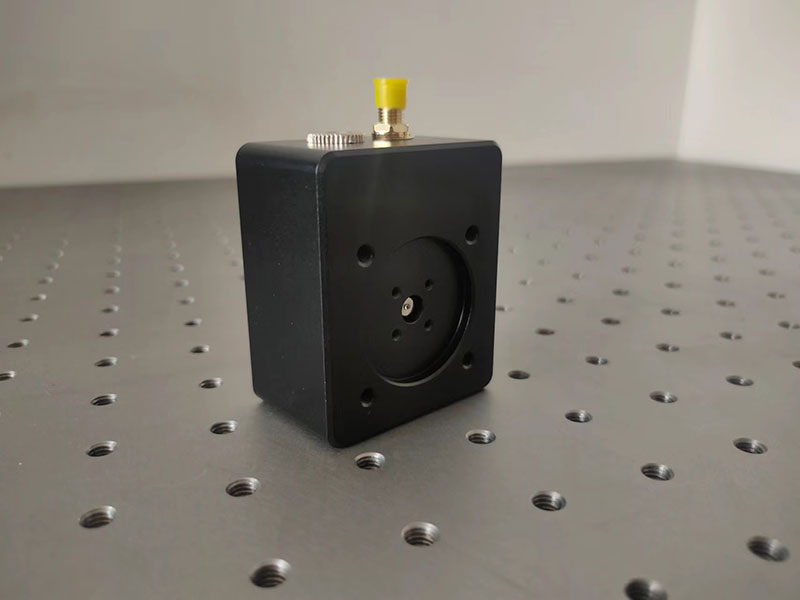

FPD510-NIR InGaAs amplified photodetector module With free space coupling output, it responds to light of wavelength 800-1700nm, typical wavelength 1550nm, with analog signal output.
Model：FPD510-NIR
Contact：
Huang
Email: Hqy@ybphotonics.com
Huang
Email: Hqy@ybphotonics.com
Product Info
Introduction
This series fpd510-nir is a photodetector module with free-space optical input to detect light in the near infrared region from 800 to 1700 nm with a response time of 0.7 ns. It is suitable for detecting near infrared light at the uW level of optical power.
Manual
FPD510-NIR-spec.pdf Download
Features
- High temperature stability
- Low noise, high gain
- All metal shell, excellent shielding performance
- M6 threaded hole for easy installation
Application
- Lidar
- Industrial imaging
- Detects low-light signals in space
- Detect fast space laser pulses
- Rf and pulse waveform extraction of laser light sources
- Spatial heterodyne laser beat signal detection
- Wireless optical communication
- Radio frequency optical transmission (ROF) systems
- TOF
Specifications
Item FPD510-NIR-250M FPD510-NIR-500M Materials
InGaAs InGaAs Wavelength range
800-1700nm 800-1700nm Input Connector
Free-Space Free-Space Photosensitive diameter
200um 200um Responsiveness
0.9A/W @ 1550nm 0.9A/W @ 1550nm Bandwidth
DC-250MHz DC-500MHz Rise time
1.4ns 0.7ns Maximum Gain@HiZ
1.6x10^4 V/W 1.1x10^3 V/W Minimum optical power
-30.0dBm (1uw) -23.5dBm (4.5uw) Saturated optical power
-6.0dBm (0.25mw) 3.6dBm (2.3mw) Noise voltage@50Ω <16mV <5mV Maximum output amplitude@Hiz
4.0V 2.5V Worker Voltage
12VDC ±10% 12VDC ±10% Worker current
<100mA <100mA Output connector
SMA SMA Output Impedance
50Ω 50Ω Output coupling mode
DC DC Worker temperature
-20~65℃ -20~65℃ Storage temperature
-40~85℃ -40~85℃ Dimension
60 mm x 50 mm x 32 mm 60 mm x 50 mm x 32 mm

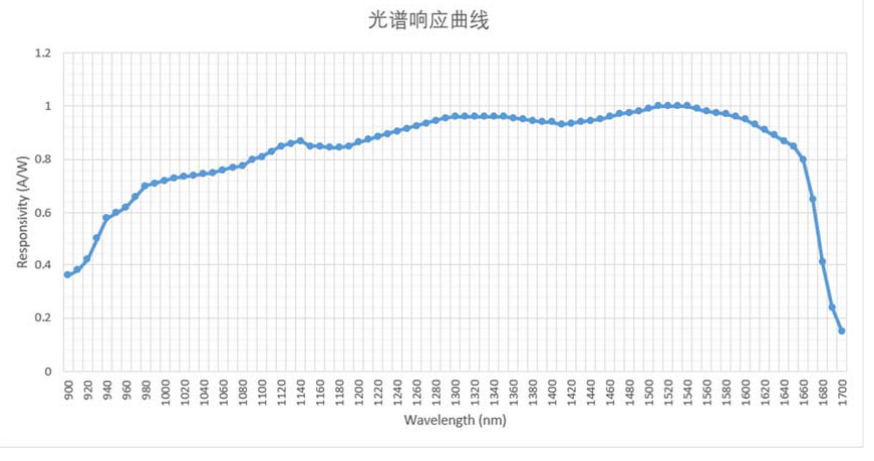

Responsivity
Mechanical Drawing
This series fpd510-nir is a photodetector module with free-space optical input to detect light in the near infrared region from 800 to 1700 nm with a response time of 0.7 ns. It is suitable for detecting near infrared light at the uW level of optical power.
Manual
FPD510-NIR-spec.pdf Download
Features
- High temperature stability
- Low noise, high gain
- All metal shell, excellent shielding performance
- M6 threaded hole for easy installation
Application
- Lidar
- Industrial imaging
- Detects low-light signals in space
- Detect fast space laser pulses
- Rf and pulse waveform extraction of laser light sources
- Spatial heterodyne laser beat signal detection
- Wireless optical communication
- Radio frequency optical transmission (ROF) systems
- TOF
Specifications
| Item | FPD510-NIR-250M | FPD510-NIR-500M |
|---|---|---|
| Materials | InGaAs | InGaAs |
| Wavelength range | 800-1700nm | 800-1700nm |
| Input Connector | Free-Space | Free-Space |
| Photosensitive diameter | 200um | 200um |
| Responsiveness | 0.9A/W @ 1550nm | 0.9A/W @ 1550nm |
| Bandwidth | DC-250MHz | DC-500MHz |
| Rise time | 1.4ns | 0.7ns |
| Maximum Gain@HiZ | 1.6x10^4 V/W | 1.1x10^3 V/W |
| Minimum optical power | -30.0dBm (1uw) | -23.5dBm (4.5uw) |
| Saturated optical power | -6.0dBm (0.25mw) | 3.6dBm (2.3mw) |
| Noise voltage@50Ω | <16mV | <5mV |
| Maximum output amplitude@Hiz | 4.0V | 2.5V |
| Worker Voltage | 12VDC ±10% | 12VDC ±10% |
| Worker current | <100mA | <100mA |
| Output connector | SMA | SMA |
| Output Impedance | 50Ω | 50Ω |
| Output coupling mode | DC | DC |
| Worker temperature | -20~65℃ | -20~65℃ |
| Storage temperature | -40~85℃ | -40~85℃ |
| Dimension | 60 mm x 50 mm x 32 mm | 60 mm x 50 mm x 32 mm |
Responsivity
Mechanical Drawing
