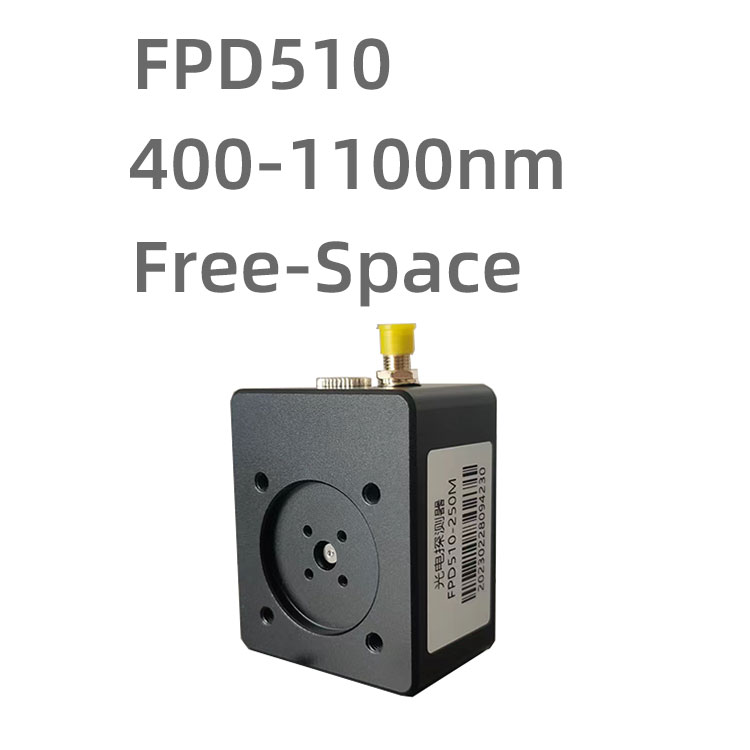

FPD510 si free-space amplified photodetectors DC-500M noise 3mV
Previous Generation, View Alternatives
FPD510 series Si free-space amplified photodetector for detecting uW optical power at wavelengths of 400-1100nm with amplification circuitry and noise as low as 3mV.
Model：FPD510
Contact：
Huang
Email: Hqy@ybphotonics.com
Huang
Email: Hqy@ybphotonics.com
Product Info
Introduction
It is a PIN type photodetector module that can detect 400-1100nm visible region with free space optical input and bandwidth from 20M to 500M; it is used for laser applications that detect uW level optical power, such as measuring laser pulse width, LIDAR and other applications.
Manual
FPD510-spec.pdf Download
Features
- High temperature stability
- Low noise, high gain
- All metal shell, excellent shielding performance
- M6 threaded hole for easy installation
Application
- Lidar
- Industrial imaging
- Detects low-light signals in space
- Detect fast space laser pulses
- Rf and pulse waveform extraction of laser light sources
- Spatial heterodyne laser beat signal detection
- Wireless optical communication
- Radio frequency optical transmission (ROF) systems
- TOF
Specifications
Item FPD510-20M FPD510-250M FPD510-500M Materials Si Wavelength range
400-1100nm Input Connector
Free Space Photosensitive diameter
1.2mm 0.2mm 0.2mm Responsiveness 0.55A/W @850nm Bandwidth DC-20MHz DC-250MHz DC-500MHz Rise time
25ns 1.5ns 800ps Maximum Gain@HiZ 11kV/W @850nm 11kV/W @850nm 660V/W @850nm Minimum optical power -30.5dBm(0.9uW)@850nm -28.2dBm(1.5uW)@850nm -22.1dBm(6.1uW)@850nm Saturated optical power -4.4dBm(0.36mW)@850nm -4.4dBm(0.36mW)@850nm 5.8dBm(3.8mW)@850nm Noise voltage@50Ω <4mV <16mV <3mV Maximum output amplitude@Hiz 3.7V 4V 2.5V Working Voltage 12VDC ±10% 12VDC ±10% 12VDC ±10% Working current <100mA <100mA <100mA Output connector SMA SMA SMA Output Impedance 50Ω 50Ω 50Ω Output coupling mode DC DC DC Working temperature
-20~65℃ -20~65℃ -20~65℃ Storage temperature
-40~85℃ -40~85℃ -40~85℃ Dimension
50 mm x 60 mm x 27 mm

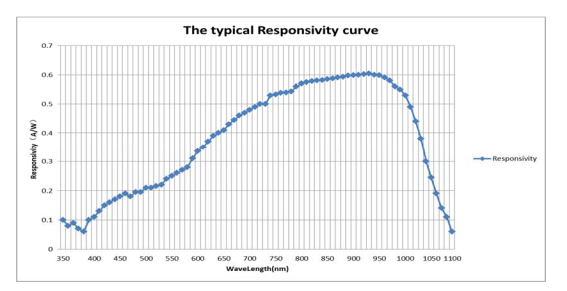

Responsivity
Mechanical Drawing
It is a PIN type photodetector module that can detect 400-1100nm visible region with free space optical input and bandwidth from 20M to 500M; it is used for laser applications that detect uW level optical power, such as measuring laser pulse width, LIDAR and other applications.
Manual
FPD510-spec.pdf Download
Features
- High temperature stability
- Low noise, high gain
- All metal shell, excellent shielding performance
- M6 threaded hole for easy installation
Application
- Lidar
- Industrial imaging
- Detects low-light signals in space
- Detect fast space laser pulses
- Rf and pulse waveform extraction of laser light sources
- Spatial heterodyne laser beat signal detection
- Wireless optical communication
- Radio frequency optical transmission (ROF) systems
- TOF
Specifications
| Item | FPD510-20M | FPD510-250M | FPD510-500M |
|---|---|---|---|
| Materials | Si | ||
| Wavelength range | 400-1100nm | ||
| Input Connector | Free Space | ||
| Photosensitive diameter | 1.2mm | 0.2mm | 0.2mm |
| Responsiveness | 0.55A/W @850nm | ||
| Bandwidth | DC-20MHz | DC-250MHz | DC-500MHz |
| Rise time | 25ns | 1.5ns | 800ps |
| Maximum Gain@HiZ | 11kV/W @850nm | 11kV/W @850nm | 660V/W @850nm |
| Minimum optical power | -30.5dBm(0.9uW)@850nm | -28.2dBm(1.5uW)@850nm | -22.1dBm(6.1uW)@850nm |
| Saturated optical power | -4.4dBm(0.36mW)@850nm | -4.4dBm(0.36mW)@850nm | 5.8dBm(3.8mW)@850nm |
| Noise voltage@50Ω | <4mV | <16mV | <3mV |
| Maximum output amplitude@Hiz | 3.7V | 4V | 2.5V |
| Working Voltage | 12VDC ±10% | 12VDC ±10% | 12VDC ±10% |
| Working current | <100mA | <100mA | <100mA |
| Output connector | SMA | SMA | SMA |
| Output Impedance | 50Ω | 50Ω | 50Ω |
| Output coupling mode | DC | DC | DC |
| Working temperature | -20~65℃ | -20~65℃ | -20~65℃ |
| Storage temperature | -40~85℃ | -40~85℃ | -40~85℃ |
| Dimension | 50 mm x 60 mm x 27 mm | ||
Responsivity
Mechanical Drawing
