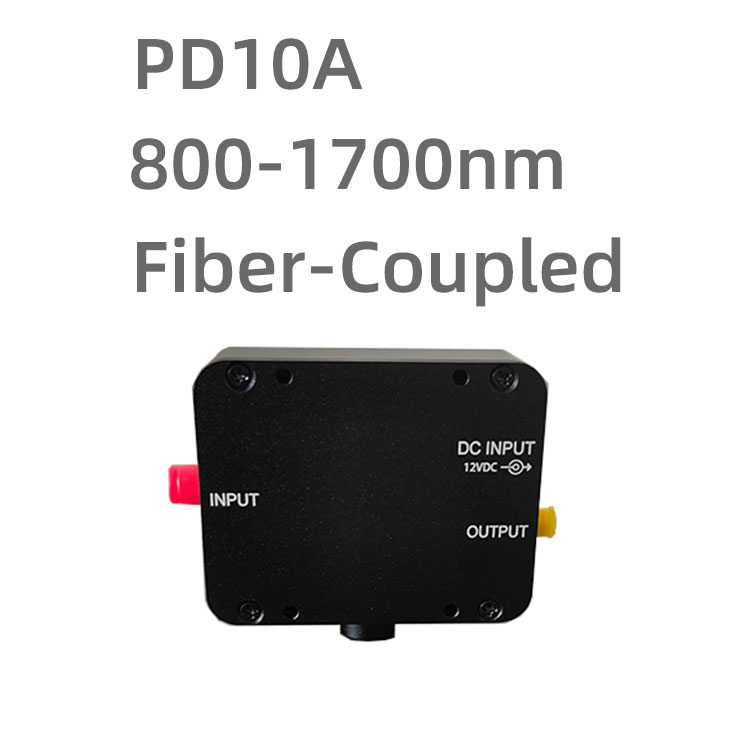

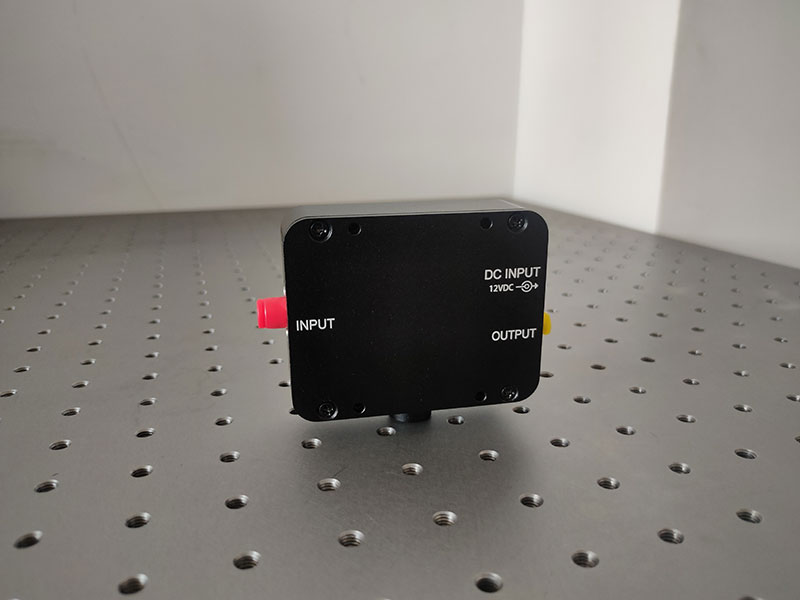

PD10A InGaAs Fiber Coupled Amplified Photodetector 200M to 1Ghz
Previous Generation, View Alternatives
Photodiode with PIN-type InGaAs material,built-in amplifier circuit with 10^4 gain but less than 15mV noise,FC fiber coupling input for weak light detection or fiber sensing.
Huang
Email: Hqy@ybphotonics.com
Product Info
Introduction
PD10A series amplified photodetector, based on PIN type InGaAs photodiode, can detect 800-1700nm light wave, self-developed precision amplification circuit, can achieve 10^4 gain while the noise is only 15mV. PIN type photodiode is not sensitive to temperature, so this series of photodetector can adapt to more severe working conditions.
This series of products use fiber-coupled FC interface input, with 200M, 500M, 1Ghz 3 bandwidths to choose from. They are suitable for laser detection of uW level optical power, optical pulse detection and fiber optic sensing related applications.
Manual
PD10A-spec.pdf Download
Features
- High temperature stability
- Low noise, high gain
- All metal shell, excellent shielding performance
- M6 threaded hole for easy installation
Application
- Detection of low-light signals, spectral measurements
- Detect fast laser pulses
- Rf and pulse waveform extraction of laser light sources
- Heterodyne laser beat frequency signal detection
- Picosecond light pulse detection
- Fiber Optic Communications & Fiber Optic Sensing
Specification
Item PD10A-200M PD10A-500M PD10A-1G material InGaAs InGaAs InGaAs Wavelength Range 800-1700nm 800-1700nm 800-1700nm Optical Input FC FC FC Active Area Diameter 75um 75um 75um Responsiveness 0.9A/W @ 1550nm 0.9A/W @ 1550nm 0.9A/W @ 1550nm Bandwidth DC-200MHz DC-500MHz DC-1GHz Rise Time 1.8ns 0.7ns 350ps Conversion Gain (Max) 1.6x10^4V/W 1.2x10^3V/W 680V/W Minimum optical power -32.5dBm -24.3dBm -22.3dBm Saturated optical power -6.5dBm 3.8dBm 5.8dBm Operating voltage 12VDC ±10% 12VDC ±10% 12VDC ±10% Operating current <100mA <100mA <100mA Noise voltage <15mV <6mV <4mV Output connector SMA SMA SMA Output impedance 50Ω 50Ω 50Ω Output coupling mode DC DC DC Maximum output amplitude 4.0V 2.6V 2.6V Operating temperature 0~40℃ 0~40℃ 0~40℃ Storage temperature 0~50℃ 0~50℃ 0~50℃ Dimensions 81mm x 64mm x 25mm（Length x width x thickness） 81mm x 64mm x 25mm（Length x width x thickness） 81mm x 64mm x 25mm（Length x width x thickness）
Responsivity
Mechanical Drawing
Screenshot of the measured data along the rising edge

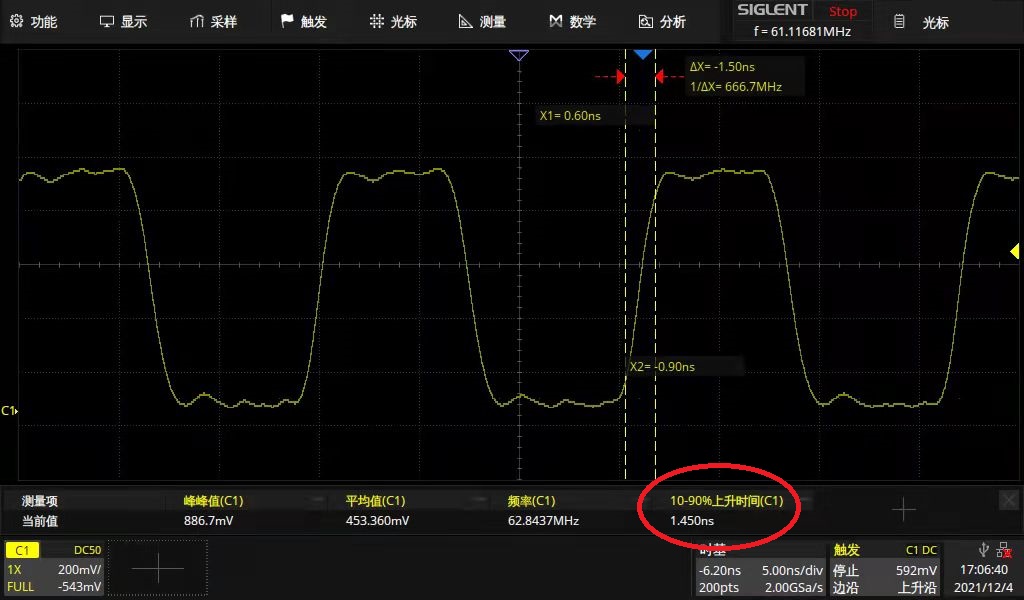

Screenshot of PD10A-200M's rise time test

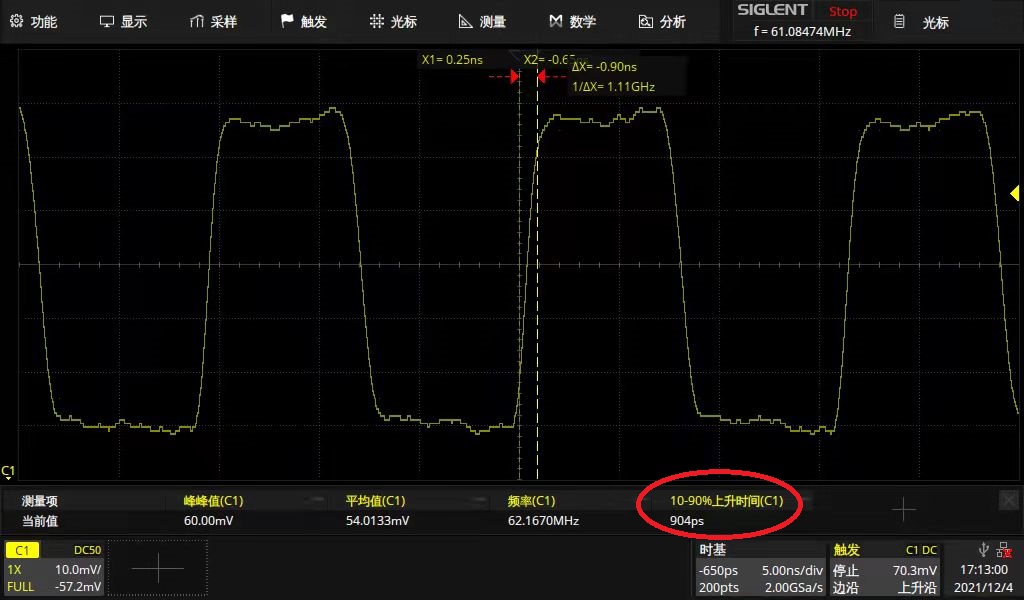

Screenshot of PD10A-500M's rise time test
PD10A series amplified photodetector, based on PIN type InGaAs photodiode, can detect 800-1700nm light wave, self-developed precision amplification circuit, can achieve 10^4 gain while the noise is only 15mV. PIN type photodiode is not sensitive to temperature, so this series of photodetector can adapt to more severe working conditions.
This series of products use fiber-coupled FC interface input, with 200M, 500M, 1Ghz 3 bandwidths to choose from. They are suitable for laser detection of uW level optical power, optical pulse detection and fiber optic sensing related applications.
Manual
PD10A-spec.pdf Download
Features
- High temperature stability
- Low noise, high gain
- All metal shell, excellent shielding performance
- M6 threaded hole for easy installation
Application
- Detection of low-light signals, spectral measurements
- Detect fast laser pulses
- Rf and pulse waveform extraction of laser light sources
- Heterodyne laser beat frequency signal detection
- Picosecond light pulse detection
- Fiber Optic Communications & Fiber Optic Sensing
Specification
| Item | PD10A-200M | PD10A-500M | PD10A-1G |
|---|---|---|---|
| material | InGaAs | InGaAs | InGaAs |
| Wavelength Range | 800-1700nm | 800-1700nm | 800-1700nm |
| Optical Input | FC | FC | FC |
| Active Area Diameter | 75um | 75um | 75um |
| Responsiveness | 0.9A/W @ 1550nm | 0.9A/W @ 1550nm | 0.9A/W @ 1550nm |
| Bandwidth | DC-200MHz | DC-500MHz | DC-1GHz |
| Rise Time | 1.8ns | 0.7ns | 350ps |
| Conversion Gain (Max) | 1.6x10^4V/W | 1.2x10^3V/W | 680V/W |
| Minimum optical power | -32.5dBm | -24.3dBm | -22.3dBm |
| Saturated optical power | -6.5dBm | 3.8dBm | 5.8dBm |
| Operating voltage | 12VDC ±10% | 12VDC ±10% | 12VDC ±10% |
| Operating current | <100mA | <100mA | <100mA |
| Noise voltage | <15mV | <6mV | <4mV |
| Output connector | SMA | SMA | SMA |
| Output impedance | 50Ω | 50Ω | 50Ω |
| Output coupling mode | DC | DC | DC |
| Maximum output amplitude | 4.0V | 2.6V | 2.6V |
| Operating temperature | 0~40℃ | 0~40℃ | 0~40℃ |
| Storage temperature | 0~50℃ | 0~50℃ | 0~50℃ |
| Dimensions | 81mm x 64mm x 25mm（Length x width x thickness） | 81mm x 64mm x 25mm（Length x width x thickness） | 81mm x 64mm x 25mm（Length x width x thickness） |
Responsivity
Mechanical Drawing
Screenshot of the measured data along the rising edge
Screenshot of PD10A-200M's rise time test
Screenshot of PD10A-500M's rise time test
