Coaxial Analog Optical Transmitter with TEC
Optical Transmitte Low noise TEC C Band APC&ATC functions
Model：OM-TxCxxxNF-OW0x
Contact：
Huang
Email: Hqy@ybphotonics.com
Huang
Email: Hqy@ybphotonics.com
Product Info
Introduction
OM-TxCxxxNF-OW0x has ultra-low noise performance, integrated TEC, APC, ATC; 1530nm-1635nm compatibility, frequency range of 10MHz-21GHz; suitable for high-sensitivity scenarios, support for extreme environments, support for complex modulation signals, excellent stability
Features
- Low noise, use coaxial optical device with TEC
- Support ITU C Band
- Wide operating frequency from 10MHz to 21GHz
- APC&ATC functions
- Flat frequency response
- High dynamic range
- Excellent EMI/EMC design, CE certification
Applications
- Antenna remoting
- Secure communication
- Fiber delay line
- Distributed antenna system
- Wideband wireless communication
- OFDM fiber transmission
Absolute Maximum Ratings
Parameter Symbol Condition Min. Max. Unit Operating Temperature Topr Case temperature -40 +70 °C Storage Temperature Tstg -40 +85 °C DC Operating Voltage Vd -5V -5.5 -4.7 V +5V +4.7 +5.5 RF Input Power Prf Continuous -- 20 dBm Relative Humidity Hr 10 95 % Atmospheric Pressure Pr 86 106 kPa ESD Human body model -- Class 1A
Typical Specification (CWDM) Parameter Test Condition Min. Typ. Max. Unit Frequency
Range TSC 0.01 ~ 3 GHz TCC 0.01 ~ 6 TXC 0.01 ~ 12 TYC 0.1 ~ 16 TUC① 0.1 ~ 18 TUC② 0.5 ~ 18 TKC 0.5 ~ 21 Optical Wavelength λ0 is standard CWDM wavelength Optional nm Optical Wavelength
Range Operating Temperature Range λ0-3 λ0 λ0 +3 nm Output Optical Power +25℃ -- 9 -- dBm Gain (1) Operating Temperature Range -30 -26 -- dB Gain Flatness (1) TSC 100MHz~3GHz -- ±1.2 ±2 dB TCC 100MHz~6GHz -- ±1.5 ±2.2 TXC 100MHz~12GHz,
1270nm～1370nm -- ±2.0 ±2.5 100MHz~12GHz, 1550nm -- ±2.0 ±3.0 TYC 100MHz~16GHz -- ±2.0 ±3.0 TUC① 100MHz~18GHz -- ±2.5 ±3 TUC② 500MHz~18GHz -- ±2.0 ±3 TKC 500MHz~21GHz -- ±2.0 ±3 RF Return
Loss TSC 100MHz~3GHz -- -15 -10 dB TCC 100MHz~6GHz -- -10 -7 TXC 100MHz~12GHz -- -10 -5 TYC 100MHz~16GHz -- -10 -5 TUC① 100MHz~18GHz -- -10 -4 TUC② 500MHz~18GHz -- -10 -4 TKC 500MHz~21GHz -10 -3 Iutput P-1dB 1GHz -- 18 -- dBm SFDR (1) TSC 1GHZ 1270nm～1370nm 111 117 -- dB·Hz2/3 1530nm/1550nm 111 117 -- 2GHz 1270nm～1370nm 109 115 -- 1530nm/1550nm 109 115 -- 3GHz 1270nm～1370nm 107 115 -- 1530nm/1550nm 105 113 -- TCC 1GHz 1270nm～1370nm 111 117 -- 1530nm/1550nm 111 117 -- 3GHz 1270nm～1370nm 107 115 -- 1530nm/1550nm 105 113 -- 6GHz 1270nm～1370nm 104 111 -- 1530nm/1550nm 103 110 -- TXC 1GHz 111 117 -- 6GHz 104 111 -- 12GHz 99 107 -- TYC 1GHz 110 115 -- 10GHz 105 111 -- 16GHz 100 106 -- TUC① 1GHz 110 115 -- 10GHz 105 110 -- 18GHz 100 105 -- TUC② 1GHz 110 115 -- 10GHz 105 110 -- 18GHz 100 105 -- TKC 1GHz 110 115 -- 10GHz 105 110 -- 21GHz 97 102 -- IIP3 (1) TSC 1GHz 30 34 -- dBm 2GHz 28 33 -- 3GHz 26 33 -- TCC 1GHz 30 34 -- 3GHz 26 33 -- 6GHz 25 31 -- TXC 1GHz 30 34 -- 6GHz 25 31 -- 12GHz 20 28 -- TYC 1GHz 28 32 -- 10GHz 25 30 -- 16GHz 22 26 -- TUC① 1GHz 30 34 -- 10GHz 28 32 -- 18GHz 23 27 -- TUC② 1GHz 30 34 -- 10GHz 28 32 -- 18GHz 23 27 -- TKC 1GHz 30 34 -- 10GHz 28 32 -- 21GHz 20 24 -- Noise Figure (1) TSC 1GHz 1270nm～1370nm -- 33 37 dB 1530nm/1550nm -- 33 37 2GHz 1270nm～1370nm -- 34 38 1530nm/1550nm -- 35 39 3GHz 1270nm～1370nm -- 35 39 1530nm/1550nm -- 37 42 TCC 1GHz 1270nm～1370nm -- 33 37 1530nm/1550nm -- 33 37 3GHz 1270nm～1370nm -- 35 39 1530nm/1550nm -- 37 42 6GHz 1270nm～1370nm -- 39 43 1530nm/1550nm -- 40 45 Noise Figure (1) TXC 1GHz -- 33 37 dB 6GHz -- 39 43 12GHz -- 41 45 TYC 1GHz -- 33 37 10GHz -- 37 42 16GHz -- 41 46 TUC① 1GHz -- 35 39 10GHz -- 41 45 18GHz -- 43 47 TUC② 1GHz -- 35 39 10GHz -- 41 45 18GHz -- 43 47 TKC 1GHz -- 35 39 10GHz -- 41 45 21GHz -- 45 49 Operating Current +5V -- 45 280 mA -5V -- 75 100 Operating Voltage +5V 4.8 5 5.2 VDC -5V -5.2 -5 -4.8 Weight -- 58 59 g
Note: （ 1 ）Test with YBPhotonics Optical Receiver and 1.0-meter SMF-28 fiber.
Typical Specification (DWDM) Parameter Test Condition Min. Typ. Max. Unit Frequency Range TSC 0.01 ~ 3 GHz TCC 0.01 ~ 6 TXC 0.01 ~ 12 Optical Wavelength λ0 is ITU C wavelength Optional nm Optical Wavelength Range Operating Temperature Range λ0-0.2 λ0 λ0 +0.2 nm Output Optical Power +25℃ -- 9 -- dBm Gain (2) Operating Temperature Range -30 -26 -- dB Gain Flatness(2) TSC 100MHz~3GHz -- ±1.5 ±2 dB TCC 100MHz~6GHz -- ±1.8 ±2.2 TXC 100MHz~12GHz -- ±2.0 ±2.5 Iutput P-1dB 1GHz -- 18 -- dBm Parameter Test Condition Min. Typ. Max. Unit RF Return Loss TSC 100MHz~3GHz -- -15 -10 dB TCC 100MHz~6GHz -- -10 -7 TXC 100MHz~12GHz -- -10 -5 SFDR (2) TSC 1GHz 112 118 dB·Hz2/3 2GHz 110 115 -- 3GHz 108 113 -- TCC 1GHz 112 118 -- 3GHz 108 113 -- 6GHz 99 105 -- TXC 1GHz 109 115 -- 6GHz 102 108 -- 12GHz 95 101 -- IIP3 (2) TSC 1GHz 33 38 dBm 2GHz 31 35 -- 3GHz 29 33 -- TCC 1GHz 33 38 -- 3GHz 29 33 -- 6GHz 22 27 -- TXC 1GHz 28 33 -- 6GHz 24 29 -- 12GHz 20 25 -- Noise Figure (2) TSC 1GHz -- 35 39 dB 2GHz -- 36 40 3GHz -- 37 41 TCC 1GHz -- 35 39 3GHz -- 37 41 6GHz -- 43 47 TXC 1GHz -- 34 38 6GHz -- 41 45 12GHz -- 47 51 Operating Current +5V -- 45 280 mA -5V -- 65 100 Operating Voltage +5V 4.8 5 5.2 VDC -5V -5.2 -5 -4.8 Weight -- 58 59 g
Note: （ 2 ）Test with YBPhotonics Optical Receiver and 1.0-meter SMF-28 fiber.
ConnectorType Connector RF SMA ( Female , 50Ω) Optical FC/APC (3) Optical Fiber Type SMF-28(Standard)(3) Power EMI Low Pass Filter, Feed Through Capacitor, Soldering Temperature Should not Exceed 300℃ and 3s
Note: （ 3 ）Other optical connector type or fiber type is also available upon request.
PIN Function
PIN Name Direction Note 1 +5V Ⅰ +5V DC Power 2 -5V Ⅰ -5V DC Power 3 GND Ⅰ GND 4 OP O Optical Power Monitor ，TTL Level ，Low Level（＜0.4V）is Optical Power Low ，High Level（ +5V）is Optical Power Normal.
Heat Dissipation Requirements
In order to ensure proper performance, heat sinking and heat removal must be provided by the user to limit maximum temperature of the transmitter module.
Mechanical (unit: mm)
Note: The mounting holes of the module are asymmetric. Heat is dissipated from the bottom of the module. M2.5 screws are used for module installation.
Ordering Information
OM - T x C xxx N F - O W 00 Frequency
Range（4）
S ：3GHz
C ：6GHz
X ：12GHz Laser Wavelength（ 5 ）
127 ：1270nm
129 ：1290nm…137 ：1370nm
153 ：1530nm
155 ：1550nm
xxC ：xx is the ITU C band wavelength code number, see the table below Optical Connector and Fiber TypeF ：FC/APC
SMF- 28(Standard) OperatingTemperature Range
W ：-40 to 70℃ Special 00 ：Start
From
10MHz
Note: （ 4 ）The lower start frequency such as 9kHz is also available upon request.
（ 5 ）12GHz series modules are not include 1530nm wavelength.
Other optical wavelength is also available upon request.
OM - T x C xxx N F - O W 0x Frequency Range（6）
Y ：16GHz
U ：18GHz
K ：21GHz Laser
Wavelength （7） 127 ：1270nm
129 ：1290nm
…
137 ：1370nm
155 ：1550nm Optical Connector and Fiber TypeF ：FC/APC SMF- 28(Standard) OperatingTemperature RangeW ：-40 to 70℃ Special 00 ：Start From100MHz 01 ：Start From500MHz
Note: （ 6 ）The lower start frequency such as 9kHz is also available upon request.
（ 7 ）21GHz series modules are not include 1350nm/1370nm/1550nm wavelength. Other optical wavelength is also available upon request.
ITU C band Wavelength Code Number Table
xx Frequency(THz) Center Wavelength (nm) xx Frequency(THz) Center Wavelength (nm) 17 191.7 1563.86 27 192.7 1555.75 18 191.8 1563.05 28 192.8 1554.94 19 191.9 1562.23 29 192.9 1554.13 20 192 1561.42 30 193 1553.33 21 192.1 1560.61 31 193.1 1552.52 22 192.2 1559.79 32 193.2 1551.72 23 192.3 1558.98 33 193.3 1550.92 24 192.4 1558.17 34 193.4 1550.12 25 192.5 1557.36 35 193.5 1549.32 26 192.6 1556.55 36 193.6 1548.51 37 193.7 1547.72 50 195 1537.4 38 193.8 1546.92 51 195.1 1536.61 39 193.9 1546.12 52 195.2 1535.82 40 194 1545.32 53 195.3 1535.04 41 194.1 1544.53 54 195.4 1534.25 42 194.2 1543.73 55 195.5 1533.47 43 194.3 1542.94 56 195.6 1532.68 44 194.4 1542.14 57 195.7 1531.9 45 194.5 1541.35 58 195.8 1531.12 46 194.6 1540.56 59 195.9 1530.33 47 194.7 1539.77 60 196 1529.55 48 194.8 1538.98 61 196.1 1528.77 49 194.9 1538.19
OM-TxCxxxNF-OW0x has ultra-low noise performance, integrated TEC, APC, ATC; 1530nm-1635nm compatibility, frequency range of 10MHz-21GHz; suitable for high-sensitivity scenarios, support for extreme environments, support for complex modulation signals, excellent stability
Features
- Low noise, use coaxial optical device with TEC
- Support ITU C Band
- Wide operating frequency from 10MHz to 21GHz
- APC&ATC functions
- Flat frequency response
- High dynamic range
- Excellent EMI/EMC design, CE certification
Applications
- Antenna remoting
- Secure communication
- Fiber delay line
- Distributed antenna system
- Wideband wireless communication
- OFDM fiber transmission
Absolute Maximum Ratings
| Parameter | Symbol | Condition | Min. | Max. | Unit |
|---|---|---|---|---|---|
| Operating Temperature | Topr | Case temperature | -40 | +70 | °C |
| Storage Temperature | Tstg | -40 | +85 | °C | |
| DC Operating Voltage | Vd | -5V | -5.5 | -4.7 | V |
| +5V | +4.7 | +5.5 | |||
| RF Input Power | Prf | Continuous | -- | 20 | dBm |
| Relative Humidity | Hr | 10 | 95 | % | |
| Atmospheric Pressure | Pr | 86 | 106 | kPa | |
| ESD | Human body model | -- | Class 1A |
Typical Specification (CWDM)
| Parameter | Test Condition | Min. | Typ. | Max. | Unit | ||
| Frequency Range | TSC | 0.01 ~ 3 | GHz | ||||
| TCC | 0.01 ~ 6 | ||||||
| TXC | 0.01 ~ 12 | ||||||
| TYC | 0.1 ~ 16 | ||||||
| TUC① | 0.1 ~ 18 | ||||||
| TUC② | 0.5 ~ 18 | ||||||
| TKC | 0.5 ~ 21 | ||||||
| Optical Wavelength | λ0 is standard CWDM wavelength | Optional | nm | ||||
| Optical Wavelength Range | Operating Temperature Range | λ0-3 | λ0 | λ0 +3 | nm | ||
| Output Optical Power | +25℃ | -- | 9 | -- | dBm | ||
| Gain (1) | Operating Temperature Range | -30 | -26 | -- | dB | ||
| Gain Flatness (1) | TSC | 100MHz~3GHz | -- | ±1.2 | ±2 | dB | |
| TCC | 100MHz~6GHz | -- | ±1.5 | ±2.2 | |||
| TXC | 100MHz~12GHz, 1270nm～1370nm | -- | ±2.0 | ±2.5 | |||
| 100MHz~12GHz, 1550nm | -- | ±2.0 | ±3.0 | ||||
| TYC | 100MHz~16GHz | -- | ±2.0 | ±3.0 | |||
| TUC① | 100MHz~18GHz | -- | ±2.5 | ±3 | |||
| TUC② | 500MHz~18GHz | -- | ±2.0 | ±3 | |||
| TKC | 500MHz~21GHz | -- | ±2.0 | ±3 | |||
| RF Return Loss | TSC | 100MHz~3GHz | -- | -15 | -10 | dB | |
| TCC | 100MHz~6GHz | -- | -10 | -7 | |||
| TXC | 100MHz~12GHz | -- | -10 | -5 | |||
| TYC | 100MHz~16GHz | -- | -10 | -5 | |||
| TUC① | 100MHz~18GHz | -- | -10 | -4 | |||
| TUC② | 500MHz~18GHz | -- | -10 | -4 | |||
| TKC | 500MHz~21GHz | -10 | -3 | ||||
| Iutput P-1dB | 1GHz | -- | 18 | -- | dBm | ||
| SFDR (1) | TSC | 1GHZ | 1270nm～1370nm | 111 | 117 | -- | dB·Hz2/3 |
| 1530nm/1550nm | 111 | 117 | -- | ||||
| 2GHz | 1270nm～1370nm | 109 | 115 | -- | |||
| 1530nm/1550nm | 109 | 115 | -- | ||||
| 3GHz | 1270nm～1370nm | 107 | 115 | -- | |||
| 1530nm/1550nm | 105 | 113 | -- | ||||
| TCC | 1GHz | 1270nm～1370nm | 111 | 117 | -- | ||
| 1530nm/1550nm | 111 | 117 | -- | ||||
| 3GHz | 1270nm～1370nm | 107 | 115 | -- | |||
| 1530nm/1550nm | 105 | 113 | -- | ||||
| 6GHz | 1270nm～1370nm | 104 | 111 | -- | |||
| 1530nm/1550nm | 103 | 110 | -- | ||||
| TXC | 1GHz | 111 | 117 | -- | |||
| 6GHz | 104 | 111 | -- | ||||
| 12GHz | 99 | 107 | -- | ||||
| TYC | 1GHz | 110 | 115 | -- | |||
| 10GHz | 105 | 111 | -- | ||||
| 16GHz | 100 | 106 | -- | ||||
| TUC① | 1GHz | 110 | 115 | -- | |||
| 10GHz | 105 | 110 | -- | ||||
| 18GHz | 100 | 105 | -- | ||||
| TUC② | 1GHz | 110 | 115 | -- | |||
| 10GHz | 105 | 110 | -- | ||||
| 18GHz | 100 | 105 | -- | ||||
| TKC | 1GHz | 110 | 115 | -- | |||
| 10GHz | 105 | 110 | -- | ||||
| 21GHz | 97 | 102 | -- | ||||
| IIP3 (1) | TSC | 1GHz | 30 | 34 | -- | dBm | |
| 2GHz | 28 | 33 | -- | ||||
| 3GHz | 26 | 33 | -- | ||||
| TCC | 1GHz | 30 | 34 | -- | |||
| 3GHz | 26 | 33 | -- | ||||
| 6GHz | 25 | 31 | -- | ||||
| TXC | 1GHz | 30 | 34 | -- | |||
| 6GHz | 25 | 31 | -- | ||||
| 12GHz | 20 | 28 | -- | ||||
| TYC | 1GHz | 28 | 32 | -- | |||
| 10GHz | 25 | 30 | -- | ||||
| 16GHz | 22 | 26 | -- | ||||
| TUC① | 1GHz | 30 | 34 | -- | |||
| 10GHz | 28 | 32 | -- | ||||
| 18GHz | 23 | 27 | -- | ||||
| TUC② | 1GHz | 30 | 34 | -- | |||
| 10GHz | 28 | 32 | -- | ||||
| 18GHz | 23 | 27 | -- | ||||
| TKC | 1GHz | 30 | 34 | -- | |||
| 10GHz | 28 | 32 | -- | ||||
| 21GHz | 20 | 24 | -- | ||||
| Noise Figure (1) | TSC | 1GHz | 1270nm～1370nm | -- | 33 | 37 | dB |
| 1530nm/1550nm | -- | 33 | 37 | ||||
| 2GHz | 1270nm～1370nm | -- | 34 | 38 | |||
| 1530nm/1550nm | -- | 35 | 39 | ||||
| 3GHz | 1270nm～1370nm | -- | 35 | 39 | |||
| 1530nm/1550nm | -- | 37 | 42 | ||||
| TCC | 1GHz | 1270nm～1370nm | -- | 33 | 37 | ||
| 1530nm/1550nm | -- | 33 | 37 | ||||
| 3GHz | 1270nm～1370nm | -- | 35 | 39 | |||
| 1530nm/1550nm | -- | 37 | 42 | ||||
| 6GHz | 1270nm～1370nm | -- | 39 | 43 | |||
| 1530nm/1550nm | -- | 40 | 45 | ||||
| Noise Figure (1) | TXC | 1GHz | -- | 33 | 37 | dB | |
| 6GHz | -- | 39 | 43 | ||||
| 12GHz | -- | 41 | 45 | ||||
| TYC | 1GHz | -- | 33 | 37 | |||
| 10GHz | -- | 37 | 42 | ||||
| 16GHz | -- | 41 | 46 | ||||
| TUC① | 1GHz | -- | 35 | 39 | |||
| 10GHz | -- | 41 | 45 | ||||
| 18GHz | -- | 43 | 47 | ||||
| TUC② | 1GHz | -- | 35 | 39 | |||
| 10GHz | -- | 41 | 45 | ||||
| 18GHz | -- | 43 | 47 | ||||
| TKC | 1GHz | -- | 35 | 39 | |||
| 10GHz | -- | 41 | 45 | ||||
| 21GHz | -- | 45 | 49 | ||||
| Operating Current | +5V | -- | 45 | 280 | mA | ||
| -5V | -- | 75 | 100 | ||||
| Operating Voltage | +5V | 4.8 | 5 | 5.2 | VDC | ||
| -5V | -5.2 | -5 | -4.8 | ||||
| Weight | -- | 58 | 59 | g | |||
Note: （ 1 ）Test with YBPhotonics Optical Receiver and 1.0-meter SMF-28 fiber.
Typical Specification (DWDM)
| Parameter | Test Condition | Min. | Typ. | Max. | Unit | |
| Frequency Range | TSC | 0.01 ~ 3 | GHz | |||
| TCC | 0.01 ~ 6 | |||||
| TXC | 0.01 ~ 12 | |||||
| Optical Wavelength | λ0 is ITU C wavelength | Optional | nm | |||
| Optical Wavelength Range | Operating Temperature Range | λ0-0.2 | λ0 | λ0 +0.2 | nm | |
| Output Optical Power | +25℃ | -- | 9 | -- | dBm | |
| Gain (2) | Operating Temperature Range | -30 | -26 | -- | dB | |
| Gain Flatness(2) | TSC | 100MHz~3GHz | -- | ±1.5 | ±2 | dB |
| TCC | 100MHz~6GHz | -- | ±1.8 | ±2.2 | ||
| TXC | 100MHz~12GHz | -- | ±2.0 | ±2.5 | ||
| Iutput P-1dB | 1GHz | -- | 18 | -- | dBm | |
| Parameter | Test Condition | Min. | Typ. | Max. | Unit | |
| RF Return Loss | TSC | 100MHz~3GHz | -- | -15 | -10 | dB |
| TCC | 100MHz~6GHz | -- | -10 | -7 | ||
| TXC | 100MHz~12GHz | -- | -10 | -5 | ||
| SFDR (2) | TSC | 1GHz | 112 | 118 | dB·Hz2/3 | |
| 2GHz | 110 | 115 | -- | |||
| 3GHz | 108 | 113 | -- | |||
| TCC | 1GHz | 112 | 118 | -- | ||
| 3GHz | 108 | 113 | -- | |||
| 6GHz | 99 | 105 | -- | |||
| TXC | 1GHz | 109 | 115 | -- | ||
| 6GHz | 102 | 108 | -- | |||
| 12GHz | 95 | 101 | -- | |||
| IIP3 (2) | TSC | 1GHz | 33 | 38 | dBm | |
| 2GHz | 31 | 35 | -- | |||
| 3GHz | 29 | 33 | -- | |||
| TCC | 1GHz | 33 | 38 | -- | ||
| 3GHz | 29 | 33 | -- | |||
| 6GHz | 22 | 27 | -- | |||
| TXC | 1GHz | 28 | 33 | -- | ||
| 6GHz | 24 | 29 | -- | |||
| 12GHz | 20 | 25 | -- | |||
| Noise Figure (2) | TSC | 1GHz | -- | 35 | 39 | dB |
| 2GHz | -- | 36 | 40 | |||
| 3GHz | -- | 37 | 41 | |||
| TCC | 1GHz | -- | 35 | 39 | ||
| 3GHz | -- | 37 | 41 | |||
| 6GHz | -- | 43 | 47 | |||
| TXC | 1GHz | -- | 34 | 38 | ||
| 6GHz | -- | 41 | 45 | |||
| 12GHz | -- | 47 | 51 | |||
| Operating Current | +5V | -- | 45 | 280 | mA | |
| -5V | -- | 65 | 100 | |||
| Operating Voltage | +5V | 4.8 | 5 | 5.2 | VDC | |
| -5V | -5.2 | -5 | -4.8 | |||
| Weight | -- | 58 | 59 | g | ||
Note: （ 2 ）Test with YBPhotonics Optical Receiver and 1.0-meter SMF-28 fiber.
Connector
| Type | Connector |
|---|---|
| RF | SMA ( Female , 50Ω) |
| Optical | FC/APC (3) |
| Optical Fiber Type | SMF-28(Standard)(3) |
| Power | EMI Low Pass Filter, Feed Through Capacitor, Soldering Temperature Should not Exceed 300℃ and 3s |
Note: （ 3 ）Other optical connector type or fiber type is also available upon request.

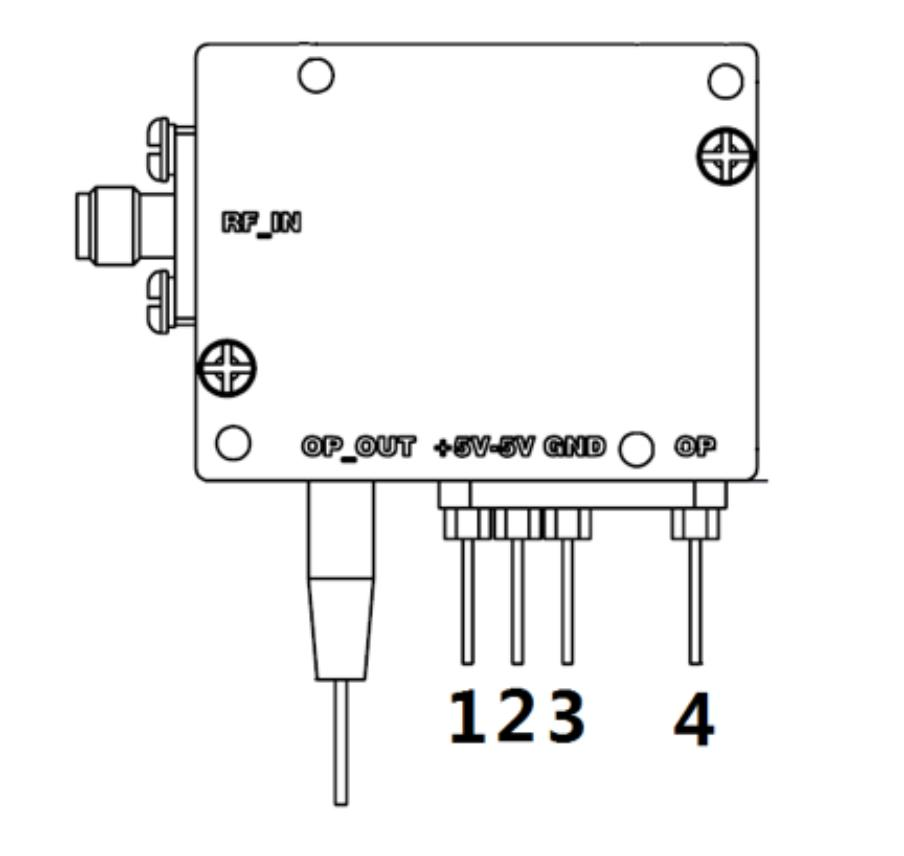

PIN Function
| PIN | Name | Direction | Note |
|---|---|---|---|
| 1 | +5V | Ⅰ | +5V DC Power |
| 2 | -5V | Ⅰ | -5V DC Power |
| 3 | GND | Ⅰ | GND |
| 4 | OP | O | Optical Power Monitor ，TTL Level ，Low Level（＜0.4V）is Optical Power Low ，High Level（ +5V）is Optical Power Normal. |
Heat Dissipation Requirements
In order to ensure proper performance, heat sinking and heat removal must be provided by the user to limit maximum temperature of the transmitter module.

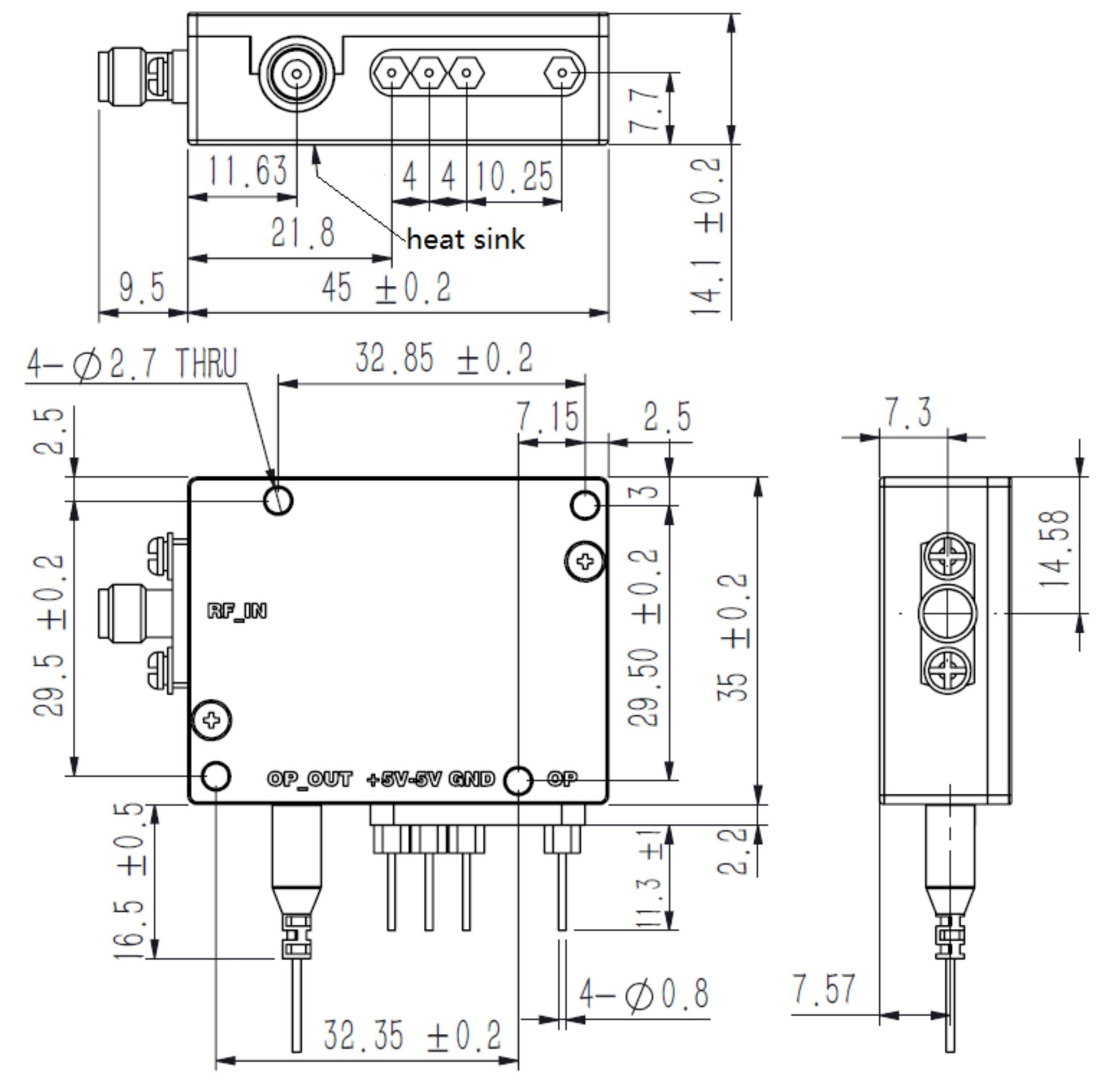

Mechanical (unit: mm)
Note: The mounting holes of the module are asymmetric. Heat is dissipated from the bottom of the module. M2.5 screws are used for module installation.
Ordering Information
| OM | - | T | x | C | xxx | N | F | - | O | W | 00 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Frequency Range（4） S ：3GHz C ：6GHz X ：12GHz | Laser Wavelength（ 5 ） 127 ：1270nm 129 ：1290nm…137 ：1370nm 153 ：1530nm 155 ：1550nm xxC ：xx is the ITU C band wavelength code number, see the table below | Optical Connector and Fiber TypeF ：FC/APC SMF- 28(Standard) | OperatingTemperature Range W ：-40 to 70℃ | Special 00 ：Start From 10MHz |
Note: （ 4 ）The lower start frequency such as 9kHz is also available upon request.
（ 5 ）12GHz series modules are not include 1530nm wavelength.
Other optical wavelength is also available upon request.
| OM | - | T | x | C | xxx | N | F | - | O | W | 0x |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Frequency Range（6） Y ：16GHz U ：18GHz K ：21GHz | Laser Wavelength （7） 127 ：1270nm 129 ：1290nm … 137 ：1370nm 155 ：1550nm | Optical Connector and Fiber TypeF ：FC/APC SMF- 28(Standard) | OperatingTemperature RangeW ：-40 to 70℃ | Special 00 ：Start From100MHz 01 ：Start From500MHz |
Note: （ 6 ）The lower start frequency such as 9kHz is also available upon request.
（ 7 ）21GHz series modules are not include 1350nm/1370nm/1550nm wavelength. Other optical wavelength is also available upon request.
ITU C band Wavelength Code Number Table
| xx | Frequency(THz) | Center Wavelength (nm) | xx | Frequency(THz) | Center Wavelength (nm) |
|---|---|---|---|---|---|
| 17 | 191.7 | 1563.86 | 27 | 192.7 | 1555.75 |
| 18 | 191.8 | 1563.05 | 28 | 192.8 | 1554.94 |
| 19 | 191.9 | 1562.23 | 29 | 192.9 | 1554.13 |
| 20 | 192 | 1561.42 | 30 | 193 | 1553.33 |
| 21 | 192.1 | 1560.61 | 31 | 193.1 | 1552.52 |
| 22 | 192.2 | 1559.79 | 32 | 193.2 | 1551.72 |
| 23 | 192.3 | 1558.98 | 33 | 193.3 | 1550.92 |
| 24 | 192.4 | 1558.17 | 34 | 193.4 | 1550.12 |
| 25 | 192.5 | 1557.36 | 35 | 193.5 | 1549.32 |
| 26 | 192.6 | 1556.55 | 36 | 193.6 | 1548.51 |
| 37 | 193.7 | 1547.72 | 50 | 195 | 1537.4 |
| 38 | 193.8 | 1546.92 | 51 | 195.1 | 1536.61 |
| 39 | 193.9 | 1546.12 | 52 | 195.2 | 1535.82 |
| 40 | 194 | 1545.32 | 53 | 195.3 | 1535.04 |
| 41 | 194.1 | 1544.53 | 54 | 195.4 | 1534.25 |
| 42 | 194.2 | 1543.73 | 55 | 195.5 | 1533.47 |
| 43 | 194.3 | 1542.94 | 56 | 195.6 | 1532.68 |
| 44 | 194.4 | 1542.14 | 57 | 195.7 | 1531.9 |
| 45 | 194.5 | 1541.35 | 58 | 195.8 | 1531.12 |
| 46 | 194.6 | 1540.56 | 59 | 195.9 | 1530.33 |
| 47 | 194.7 | 1539.77 | 60 | 196 | 1529.55 |
| 48 | 194.8 | 1538.98 | 61 | 196.1 | 1528.77 |
| 49 | 194.9 | 1538.19 |
Product Inquiry
Leading manufacturer of photodetector modules and fiber optic sensing system modules
