1064nm-80MHz PM Fiber Acousto-Optic Modulator
PM Fiber Acousto-Optic Modulator AOM 1064nm-80MHz
Model：GY-1064-80-PM-A
Contact：
Huang
Email: Hqy@ybphotonics.com
Huang
Email: Hqy@ybphotonics.com
Product Info
Introduction
This is a polarization-maintaining fiber acousto-optic modulator (AOM) commonly used in optical switching and optical frequency shifting, operating at a wavelength of 1064 nm with a central frequency of 80 MHz.
Applications：For optical switching, optical frequency shifting, etc.

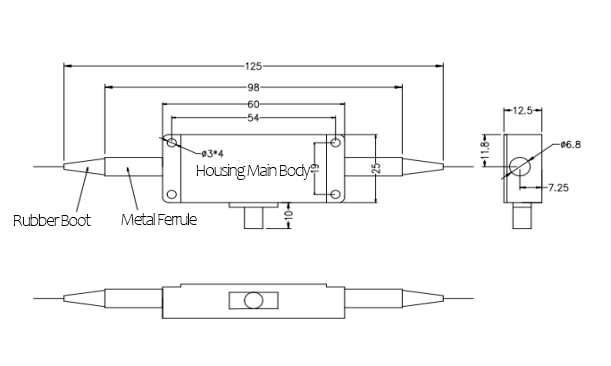

Mechanical Dimension：
General Specification
Parameter Unit Min Max Typical Comments Material TeO2 Wavelength nm 1030 1080 1064 Average optical power handling W 3 Peak (pulse) optical power handling kW 3 Ultrasonic Velocity m/s 4200 Insertion Loss dB 2 PER dB 18 ER(1st order on / off) dB 50 Return Loss (RF ON) dB 40 Rise-time / Fall-time: ns 45 (10% - 90%) Frequency MHz 80 Frequency Shift MHz +80 Can be customised-80 Radio Frequency Power W 1.8 VSWR 1.2:1 Input Impedance Ω 50 Device Interface SMA Fibre Type PM980 Fibre Length m 1 Fibre Termination FC/APC Working temperature ℃ -20~60 Storage Temperature ℃ -30~70
This is a polarization-maintaining fiber acousto-optic modulator (AOM) commonly used in optical switching and optical frequency shifting, operating at a wavelength of 1064 nm with a central frequency of 80 MHz.
Applications：For optical switching, optical frequency shifting, etc.
Mechanical Dimension：
General Specification
| Parameter | Unit | Min | Max | Typical | Comments |
|---|---|---|---|---|---|
| Material | TeO2 | ||||
| Wavelength | nm | 1030 | 1080 | 1064 | |
| Average optical power handling | W | 3 | |||
| Peak (pulse) optical power handling | kW | 3 | |||
| Ultrasonic Velocity | m/s | 4200 | |||
| Insertion Loss | dB | 2 | |||
| PER | dB | 18 | |||
| ER(1st order on / off) | dB | 50 | |||
| Return Loss (RF ON) | dB | 40 | |||
| Rise-time / Fall-time: | ns | 45 | (10% - 90%) | ||
| Frequency | MHz | 80 | |||
| Frequency Shift | MHz | +80 | Can be customised-80 | ||
| Radio Frequency Power | W | 1.8 | |||
| VSWR | 1.2:1 | ||||
| Input Impedance | Ω | 50 | |||
| Device Interface | SMA | ||||
| Fibre Type | PM980 | ||||
| Fibre Length | m | 1 | |||
| Fibre Termination | FC/APC | ||||
| Working temperature | ℃ | -20~60 | |||
| Storage Temperature | ℃ | -30~70 |
