PD10D-NIR Amplified Photodetector Free-Space Price Specs
Previous Generation, View Alternatives

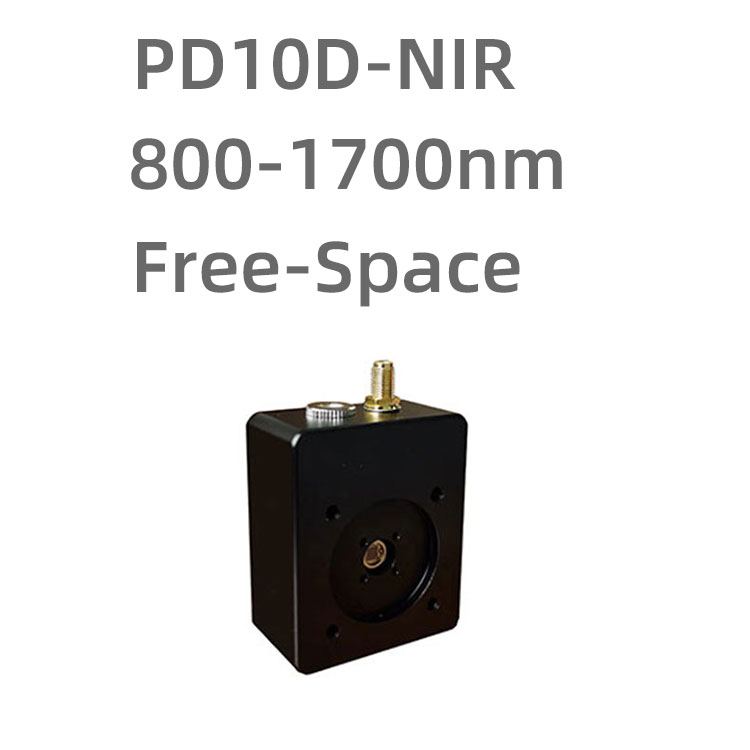

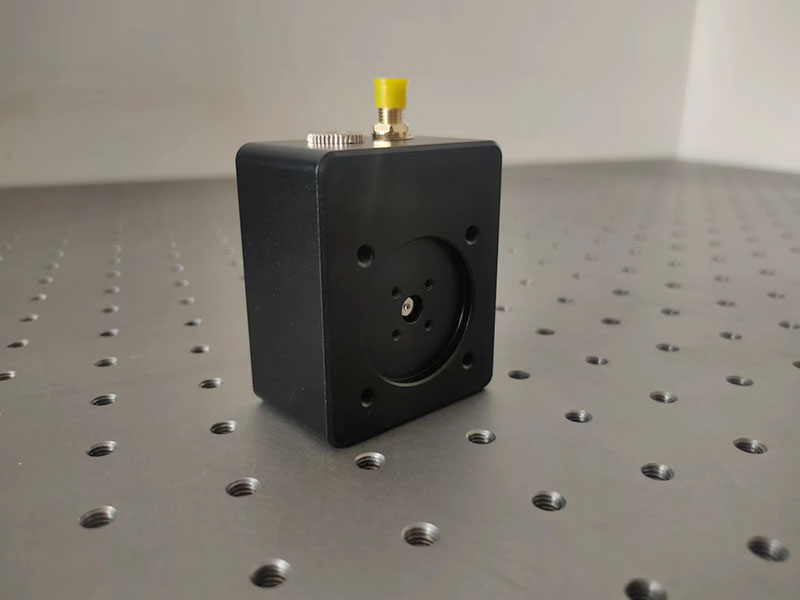

InGaAs Amplified Photodetector 900-1700nm Free-Space
Model：PD10D
Contact：
Huang
Email: Hqy@ybphotonics.com
Huang
Email: Hqy@ybphotonics.com
Product Info
Introduction
The series of photodetectors with 2mm large target surface photodetector chip has very high sensitivity, suitable for the response speed in the us level of photodetection equipment.
Download
PD10D-spec.pdf download
Features
- High temperature stability
- Low noise, high gain
- All metal shell, excellent shielding performance
- 2mm Active Area Diameter
Application
- Detect low light signals
- Detection of laser pulses
- Biochemical medical analysis instruments
- RF and pulse waveform extraction from laser light sources
Specifications
Item
PD10D-NIR-10k PD10D-NIR-70k PD10D-NIR-200k Materials
InGaAs InGaAs InGaAs Wavelength
900-1700nm 900-1700nm 900-1700nm Input Connector
Free-Space Free-Space Free-Space
Responsiveness
0.9A/W @ 1550nm 0.9A/W @ 1550nm 0.9A/W @ 1550nm Photosensitive diameter
1mm 2mm 2mm Bandwidth
DC-10kHz DC-70kHz DC-200kHz Rise time
35us 5us 1.8us Cross-group gain
3kV/A 1000kV/A 100kV/A Minimum optical power
-26.5dBm (2.22uw) -56.5dBm (2.22nw) -47.8dBm (16.6nw) Saturated optical power
2.7dBm (1.85mw) -22.6dBm (5.55uw) -12.6dBm (55.5uw) Noise voltage@50Ω
≤3mVpp ≤2mVpp ≤1.5mVpp Maximum output amplitude@Hiz
5.0V 5.0V 5.0V Working Voltage
9-12VDC 9-12VDC 9-12VDC Working current
<100mA <100mA <100mA Output connector
SMA SMA SMA Output Impedance
50Ω 50Ω 50Ω Output coupling mode
DC DC DC Working temperature
-20~65℃ -20~65℃ -20~65℃ Storage temperature
-40~85℃ -40~85℃ -40~85℃ Dimension
81mm x 64mm x 25mm 81mm x 64mm x 25mm 81mm x 64mm x 25mm
The series of photodetectors with 2mm large target surface photodetector chip has very high sensitivity, suitable for the response speed in the us level of photodetection equipment.
Download
PD10D-spec.pdf download
Features
- High temperature stability
- Low noise, high gain
- All metal shell, excellent shielding performance
- 2mm Active Area Diameter
Application
- Detect low light signals
- Detection of laser pulses
- Biochemical medical analysis instruments
- RF and pulse waveform extraction from laser light sources
Specifications
| Item | PD10D-NIR-10k | PD10D-NIR-70k | PD10D-NIR-200k |
|---|---|---|---|
| Materials | InGaAs | InGaAs | InGaAs |
| Wavelength | 900-1700nm | 900-1700nm | 900-1700nm |
| Input Connector | Free-Space | Free-Space | Free-Space |
| Responsiveness | 0.9A/W @ 1550nm | 0.9A/W @ 1550nm | 0.9A/W @ 1550nm |
| Photosensitive diameter | 1mm | 2mm | 2mm |
| Bandwidth | DC-10kHz | DC-70kHz | DC-200kHz |
| Rise time | 35us | 5us | 1.8us |
| Cross-group gain | 3kV/A | 1000kV/A | 100kV/A |
| Minimum optical power | -26.5dBm (2.22uw) | -56.5dBm (2.22nw) | -47.8dBm (16.6nw) |
| Saturated optical power | 2.7dBm (1.85mw) | -22.6dBm (5.55uw) | -12.6dBm (55.5uw) |
| Noise voltage@50Ω | ≤3mVpp | ≤2mVpp | ≤1.5mVpp |
| Maximum output amplitude@Hiz | 5.0V | 5.0V | 5.0V |
| Working Voltage | 9-12VDC | 9-12VDC | 9-12VDC |
| Working current | <100mA | <100mA | <100mA |
| Output connector | SMA | SMA | SMA |
| Output Impedance | 50Ω | 50Ω | 50Ω |
| Output coupling mode | DC | DC | DC |
| Working temperature | -20~65℃ | -20~65℃ | -20~65℃ |
| Storage temperature | -40~85℃ | -40~85℃ | -40~85℃ |
| Dimension | 81mm x 64mm x 25mm | 81mm x 64mm x 25mm | 81mm x 64mm x 25mm |
