PDLX Long Wavelength Photodetector
900-2600nm Long Wavelength Photodetector, Long wavelength biased photodetector without amplification.
Huang
Email: Hqy@ybphotonics.com
Download>>
Product Info
Introduction
1. Features
- 30mm mounting holes for optical cage system
- Wavelength range 900-2600nm
- Optional lithium battery power supply, lower noise
- Optional FC flange, can use fiber optic coupling
2. Applications
- Optical experiment
- Pulsed light waveform detection
3. Specifications
Items PDLX03D2-200M Materials InGaAs Wavelength 900-2600nm Photosensitive diameter 0.3mm Responsivity 1.3A/W @2300nm Bandwidtha DC-200MHz Rise timea 1.8ns Damage threshold 5mW Output Impedance 50Ω Output coupling method DC Output connector SMA female Operating voltage 9-12VDC Operating temperature -20~65℃ Storage temperature -40~85℃
Remarks:
a For 50Ω load
4. Block Diagram
5. Operating Procedures
- Adjust the voltage grid of the oscilloscope to 10mV/div and set the input impedance of the oscilloscope to 50Ω;
- Connect the output of the detector to the input of the oscilloscope with a coaxial cable;
- Ensure that the power received by the detector is within the saturation power, and then turn on the light source to be measured and align it with the photosensitive area;
- Observe the waveform of the oscilloscope.
Note: We use a load resistor R to convert the photocurrent I to a voltage V for viewing on an oscilloscope: V = I x R
Load resistance affects response speed, and for maximum bandwidth we recommend using a 50 ohm coaxial cable with a 50 ohm terminating resistor at the other end of the cable for impedance matching. If bandwidth is not important, the amount of voltage in a given light can be increased by gaining the load resistor. The length of the coaxial cable can have a profound effect on the response, so it is recommended to keep the cable as short as possible.

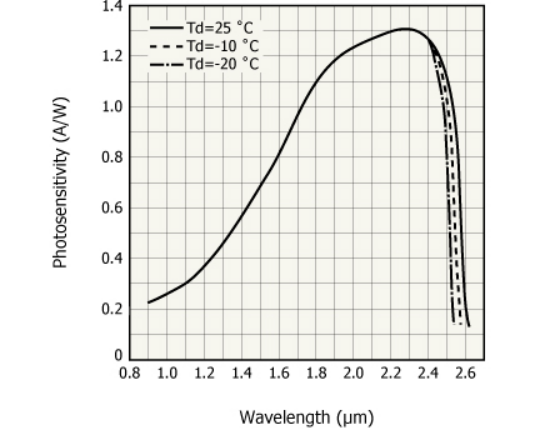

6. Response curve
7. Mechanical dimensions
