40Ghz Analog Photodetector 1100nm-1620nm
DC-40G analog photodetector, wavelength 1100nm to 1620nm, high responsiveness, for antenna remote control, satellite communication, distributed antenna system, High speed test and measurement.
Huang
Email: Hqy@ybphotonics.com
Product Info
Introduction
This is DC-40G analog photodetector, Small size package, High responsivity: typical 0.75 mA/mW@ 1550nm, for antenna remote control, satellite communication, distributed antenna system, high speed test and measurement, Video Signal Distribution in HFC and FTTx Nodes, Wireless signal transport and other applications.
Features
- Wide operating analog frequency up to 40GHz
- High responsivity: typical 0.75 mA/mW@1550nm
- Wide wavelength range from 1100nm to 1620nm
- Matched to 50Ω
- K type RF connector
- Small size package
Applications
- High speed test and measurement
- Distributed antenna system
- Wireless signal transport
- Antenna remoting
- Satellite communications
- Video signal distribution in HFC and FTTx Nodes
Absolute Maximum Ratings
Parameter
Symbol
Condition
Min.
Max.
Unit
Operating Temperature
Topr
Case temperature
-40
+85
°C
Storage Temperature
Tstg
-40
+85
°C
Saturation Input Power
Ps
--
10
mW
Forward Current
If
--
10
mA
Reverse Bias
Vr
--
20
V DC Operating Voltage
Vd
+5V pin
+4.7
+5.5
V Dark Current
Id
10
nA
Relative Humidity
Hr
--
--
85
% Pressure
Pr
--
86
106
kPa
ESD
Human body model
--
Class 0
Electrical and Optical Characteristics (@25°C)
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
Wavelength Range
λ
1100 --
1620 nm Responsivity
R
1310nm
0.65
0.7 --
mA/mW
Responsivity
R
1550nm
0.7
0.75 --
mA/mW
Frequency Bandwidth（1）
BW
DC --
40 GHz Ripple of Passband（2）
Flatness
1GHz~40GHz
--
±3.5
±4.5
dB
Second Order Intermodulation (1)
IMD2
@1GHz
--
--
-65
dBc
Third Order Intermodulation (1)
IMD3
@1GHz
--
--
-70 dBc Back Reflection
ORL
PD
--
-35
--
dB
Dark Current
Id
PD
--
5
10 nA Operating Voltage
Vd
+5V Pin
+4.8
+5
+5.2
V
Power Consumption
Pdiss
+5V bias
--
35
60
mW
Note (1): Test with YB Photonics optical source and modulator. The length of testing fiber is 1-meter. The ripple of passband
has deducted the ripple of optical source and modulator.
Fiber Specification
Parameter
Typ.
Unit
Fiber Type
Single Mode
Optical Connector Type
FC/APC
Pigtail Length
1±0.1
m Minimum Bend Radius
30
mm

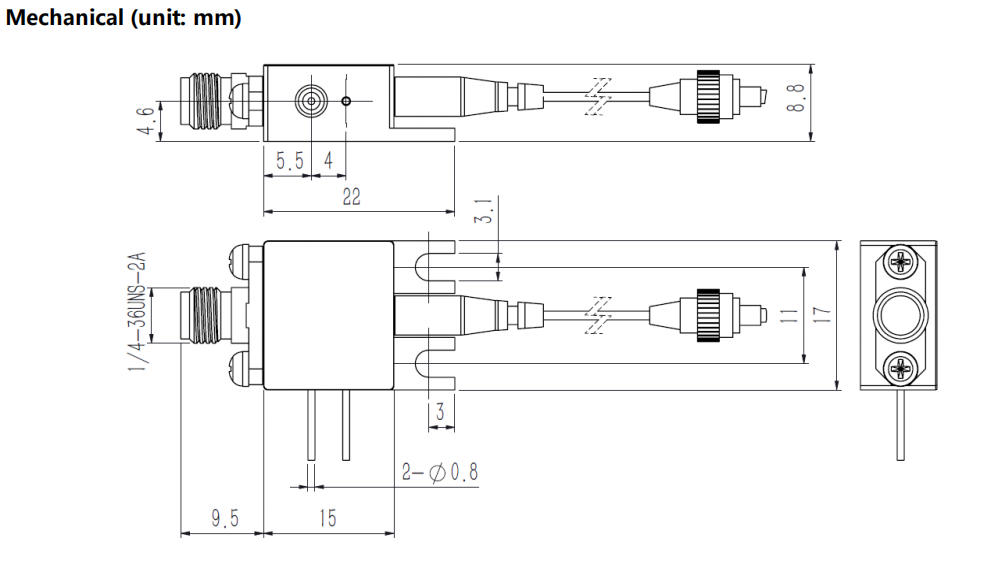

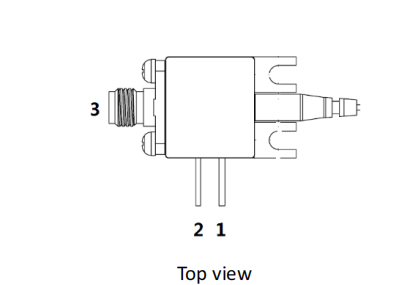

PIN Function
PIN
Name
Direction
Note
1
GND
GND
2 +5V
Ⅰ
+5V DC Power
3 RF
O
RF output, K type, female，50Ω
Ordering Information
OD
- PVR
000
P
F - O
X K0
Wavelength：
000:1100nm ~ 1620nm
Optical Connector and Fiber Type（2）：
F：FC/APC SM
Operating
Temperature（3）
W: -40 to 85℃
Frequency Response For 40GHz PD(Unit:dB)
This is DC-40G analog photodetector, Small size package, High responsivity: typical 0.75 mA/mW@ 1550nm, for antenna remote control, satellite communication, distributed antenna system, high speed test and measurement, Video Signal Distribution in HFC and FTTx Nodes, Wireless signal transport and other applications.
Features
- Wide operating analog frequency up to 40GHz
- High responsivity: typical 0.75 mA/mW@1550nm
- Wide wavelength range from 1100nm to 1620nm
- Matched to 50Ω
- K type RF connector
- Small size package
Applications
- High speed test and measurement
- Distributed antenna system
- Wireless signal transport
- Antenna remoting
- Satellite communications
- Video signal distribution in HFC and FTTx Nodes
Absolute Maximum Ratings
| Parameter | Symbol | Condition | Min. | Max. | Unit |
|---|---|---|---|---|---|
| Operating Temperature | Topr | Case temperature | -40 | +85 | °C |
| Storage Temperature | Tstg | -40 | +85 | °C | |
| Saturation Input Power | Ps | -- | 10 | mW | |
| Forward Current | If | -- | 10 | mA | |
| Reverse Bias | Vr | -- | 20 | V | |
| DC Operating Voltage | Vd | +5V pin | +4.7 | +5.5 | V |
| Dark Current | Id | 10 | nA | ||
| Relative Humidity | Hr | -- | -- | 85 | % |
| Pressure | Pr | -- | 86 | 106 | kPa |
| ESD | Human body model | -- | Class 0 |
Electrical and Optical Characteristics (@25°C)
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|---|
| Wavelength Range | λ | 1100 | -- | 1620 | nm | |
| Responsivity | R | 1310nm | 0.65 | 0.7 | -- | mA/mW |
| Responsivity | R | 1550nm | 0.7 | 0.75 | -- | mA/mW |
| Frequency Bandwidth（1） | BW | DC | -- | 40 | GHz | |
| Ripple of Passband（2） | Flatness | 1GHz~40GHz | -- | ±3.5 | ±4.5 | dB |
| Second Order Intermodulation (1) | IMD2 | @1GHz | -- | -- | -65 | dBc |
| Third Order Intermodulation (1) | IMD3 | @1GHz | -- | -- | -70 | dBc |
| Back Reflection | ORL | PD | -- | -35 | -- | dB |
| Dark Current | Id | PD | -- | 5 | 10 | nA |
| Operating Voltage | Vd | +5V Pin | +4.8 | +5 | +5.2 | V |
| Power Consumption | Pdiss | +5V bias | -- | 35 | 60 | mW |
Note (1): Test with YB Photonics optical source and modulator. The length of testing fiber is 1-meter. The ripple of passband
has deducted the ripple of optical source and modulator.
Fiber Specification
| Parameter | Typ. | Unit |
|---|---|---|
| Fiber Type | Single Mode | |
| Optical Connector Type | FC/APC | |
| Pigtail Length | 1±0.1 | m |
| Minimum Bend Radius | 30 | mm |
PIN Function
| PIN | Name | Direction | Note |
|---|---|---|---|
| 1 | GND | GND | |
| 2 | +5V | Ⅰ | +5V DC Power |
| 3 | RF | O | RF output, K type, female，50Ω |
Ordering Information
| OD | - | PVR | 000 | P | F | - | O | X | K0 |
|---|---|---|---|---|---|---|---|---|---|
| Wavelength： 000:1100nm ~ 1620nm | Optical Connector and Fiber Type（2）： F：FC/APC SM | Operating Temperature（3） W: -40 to 85℃ |
Frequency Response For 40GHz PD(Unit:dB)
