ghz photodiode analog optical receiver with pigtail
Analog optical receiver with pigtail, high speed ghz photodiode, 800nm to 1650nm Operating frequency up to 24GHz
Model：OM-RxC000Nx-OW0x
Contact：
Huang
Email: Hqy@ybphotonics.com
Huang
Email: Hqy@ybphotonics.com
Product Info
Introduction
High-speed photodetectors, 800nm to 1650nm, bandwidths from 6G to 24G, with DC or AC coupling options. Suitable for high speed photodetection.
Features
- Operating frequency up to 24GHz
- High responsivity: typical 0.8 mA/mW @ 1310nm
- Wide wavelength range from 800nm to 1650nm
- DC-couple or AC-couple optional and matched to 50 Ohm
- Small size：22mm*17mm*8.9mm
Applications
- High speed test and measurement
- Distributed antenna system
- Antenna remoting
- Satellite communications
- GPS signal transport
- Pulse signal transport
- 5G/4G/3G Mobile Communication
- Video signal distribution in HFC and FTTx Nodes
Absolute Maximum Ratings
Parameter
Symbol
Condition
Min.
Max.
Unit
Operating Temperature
Topr
-40
+70
°C
Storage Temperature
Tstg
-40
+85
°C
Saturation Input Power
Ps
--
10
mW
Forward Current
If
--
10
mA
Reverse Bias
Vr
PD
--
20
V DC Operating Voltage
Vd
+5V pin
+4.7
+5.5
V Dark Current
Id
10
nA
Relative Humidity
Hr
--
--
95
% Pressure
Pr
--
86
106
kPa
ESD
Human body model
--
Class 1B
Note：Operation beyond these absolute maximum conditions may degrade device performance, lead to device failure, shorter lifetime, and will invalidate the device warranty.
Electrical and Optical Characteristics
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
Wavelength Range
λ
800 --
1650 nm Responsivity
R
1310nm
0.7
0.8 --
mA/mW
Responsivity
R
1550nm
0.7
0.85 --
mA/mW
Frequency Bandwidth（1）
BW
RCC
0.01
--
6 GHz Frequency Bandwidth（1）
BW
RXC
0.01 --
12 GHz Frequency Bandwidth（1）
BW
RUC
0.01 --
18 GHz Frequency Bandwidth（1）
BW
RKC
0.01 --
24 GHz Ripple of Passband（2）
Flatness
RCC,0.1GHz~6GHz
--
±1
±1.2
dB
Ripple of Passband（2）
Flatness
RXC,0.1GHz~12GHz
--
±1.2
±1.5
dB
Ripple of Passband（2）
Flatness
RUC,0.1GHz~18GHz
--
±1.5
±2
dB
Ripple of Passband（2）
Flatness
RKC,0.1GHz~24GHz
--
±1.7
±2.5
dB
RF Return Loss
RL
RCC,0.1GHz~6GHz
--
-12
-9
dB
RF Return Loss
RL
RXC,0.1GHz~12GHz
--
-10
-7
dB
RF Return Loss
RL
RUC,0.1GHz~18GHz
--
-10
-5
dB
RF Return Loss
RL
RKC,0.1GHz~18GHz
--
-10
-5
dB
RF Return Loss
RL
RKC,18GHz~24GHz
--
-5
-3
dB
Back Reflection
ORL
PD
--
-35
--
dB
Dark Current
Id
PD
--
5
10 nA Operating Voltage
Vd
+5V Pin
+4.8
+5
+5.2
V
Power Consumption
Pdiss
+5V power supply
--
25
50
mW
- Note：
（1）The lower start frequency such as DC or 9kHz is available upon request.
（2）The ripple of passband has deducted the ripple of optical Tx.
Fiber Specification
Parameter
Typ.
Unit
Fiber Type
Single Mode
Optical Connector Type
FC/APC（1）
Pigtail Length
1±0.1
m Minimum Bend Radius
30（2）
mm

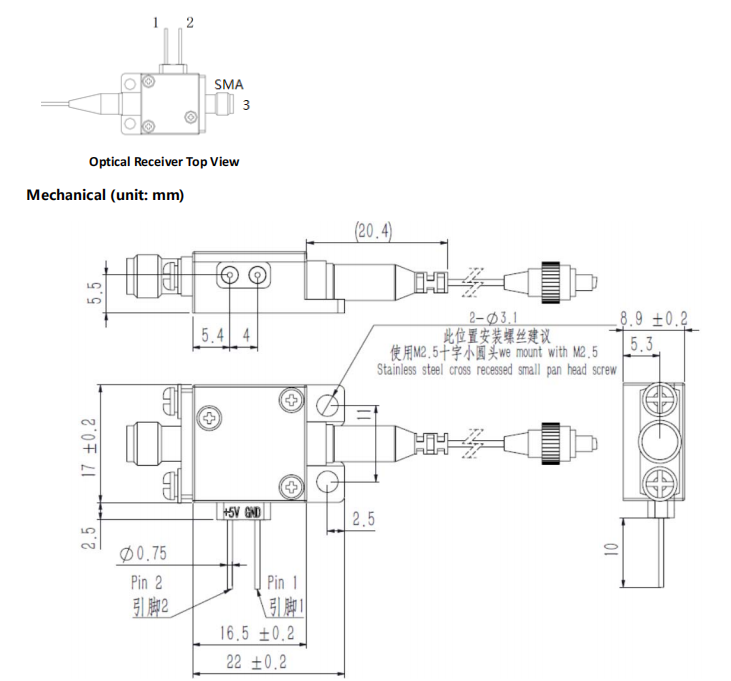

PIN Function
PIN
Name
Direction
Note
1
GND
Ⅰ
GND
2 +5V
Ⅰ
+5V DC Power
3 RF
O
RF Out, SMA Female,50Ω
Note：Do not squeeze the M2.5 screws of the module to the optical component, otherwise it may cause the optical component to break.

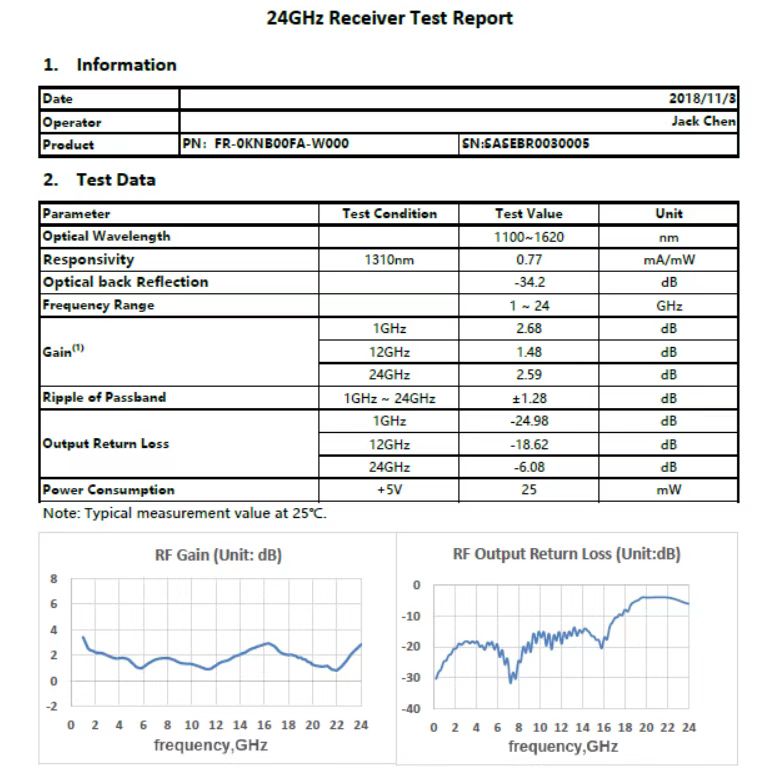

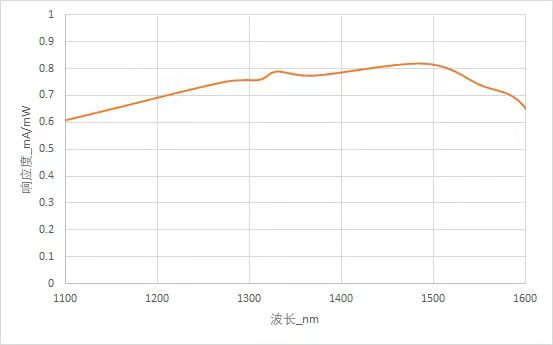

Typical Response Curve
Ordering Information
OM
- RXC
000
N
x
- O
W
0x
OM：
Optical Module
Frequency Range（1）：
RCC：0.01~6GHz
RXC：0.01~12GHz
RUC：0.01~18GHz
RKC：0.01~24GHz
Wavelength：
000:800nm ~ 1650nm
Optical Connector and Fiber Type（2）：
F：FC/APC SM
C: FC/PC SM
L: LC/APC SM
Operating
Temperature（3）
W: -40 to 70℃
00：
AC
couple
01：
DC
couple
- Note:
(1)The lower start frequency such as DC or 9kHz is available upon request；
（2）ther optical connector and fiber type can be customized;
(3) Other temperature range need to be customized.
High-speed photodetectors, 800nm to 1650nm, bandwidths from 6G to 24G, with DC or AC coupling options. Suitable for high speed photodetection.
Features
- Operating frequency up to 24GHz
- High responsivity: typical 0.8 mA/mW @ 1310nm
- Wide wavelength range from 800nm to 1650nm
- DC-couple or AC-couple optional and matched to 50 Ohm
- Small size：22mm*17mm*8.9mm
Applications
- High speed test and measurement
- Distributed antenna system
- Antenna remoting
- Satellite communications
- GPS signal transport
- Pulse signal transport
- 5G/4G/3G Mobile Communication
- Video signal distribution in HFC and FTTx Nodes
Absolute Maximum Ratings
| Parameter | Symbol | Condition | Min. | Max. | Unit |
|---|---|---|---|---|---|
| Operating Temperature | Topr | -40 | +70 | °C | |
| Storage Temperature | Tstg | -40 | +85 | °C | |
| Saturation Input Power | Ps | -- | 10 | mW | |
| Forward Current | If | -- | 10 | mA | |
| Reverse Bias | Vr | PD | -- | 20 | V |
| DC Operating Voltage | Vd | +5V pin | +4.7 | +5.5 | V |
| Dark Current | Id | 10 | nA | ||
| Relative Humidity | Hr | -- | -- | 95 | % |
| Pressure | Pr | -- | 86 | 106 | kPa |
| ESD | Human body model | -- | Class 1B |
Note：Operation beyond these absolute maximum conditions may degrade device performance, lead to device failure, shorter lifetime, and will invalidate the device warranty.
Electrical and Optical Characteristics
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|---|
| Wavelength Range | λ | 800 | -- | 1650 | nm | |
| Responsivity | R | 1310nm | 0.7 | 0.8 | -- | mA/mW |
| Responsivity | R | 1550nm | 0.7 | 0.85 | -- | mA/mW |
| Frequency Bandwidth（1） | BW | RCC | 0.01 | -- | 6 | GHz |
| Frequency Bandwidth（1） | BW | RXC | 0.01 | -- | 12 | GHz |
| Frequency Bandwidth（1） | BW | RUC | 0.01 | -- | 18 | GHz |
| Frequency Bandwidth（1） | BW | RKC | 0.01 | -- | 24 | GHz |
| Ripple of Passband（2） | Flatness | RCC,0.1GHz~6GHz | -- | ±1 | ±1.2 | dB |
| Ripple of Passband（2） | Flatness | RXC,0.1GHz~12GHz | -- | ±1.2 | ±1.5 | dB |
| Ripple of Passband（2） | Flatness | RUC,0.1GHz~18GHz | -- | ±1.5 | ±2 | dB |
| Ripple of Passband（2） | Flatness | RKC,0.1GHz~24GHz | -- | ±1.7 | ±2.5 | dB |
| RF Return Loss | RL | RCC,0.1GHz~6GHz | -- | -12 | -9 | dB |
| RF Return Loss | RL | RXC,0.1GHz~12GHz | -- | -10 | -7 | dB |
| RF Return Loss | RL | RUC,0.1GHz~18GHz | -- | -10 | -5 | dB |
| RF Return Loss | RL | RKC,0.1GHz~18GHz | -- | -10 | -5 | dB |
| RF Return Loss | RL | RKC,18GHz~24GHz | -- | -5 | -3 | dB |
| Back Reflection | ORL | PD | -- | -35 | -- | dB |
| Dark Current | Id | PD | -- | 5 | 10 | nA |
| Operating Voltage | Vd | +5V Pin | +4.8 | +5 | +5.2 | V |
| Power Consumption | Pdiss | +5V power supply | -- | 25 | 50 | mW |
- Note：
（1）The lower start frequency such as DC or 9kHz is available upon request.
（2）The ripple of passband has deducted the ripple of optical Tx.
Fiber Specification
| Parameter | Typ. | Unit |
|---|---|---|
| Fiber Type | Single Mode | |
| Optical Connector Type | FC/APC（1） | |
| Pigtail Length | 1±0.1 | m |
| Minimum Bend Radius | 30（2） | mm |
PIN Function
| PIN | Name | Direction | Note |
|---|---|---|---|
| 1 | GND | Ⅰ | GND |
| 2 | +5V | Ⅰ | +5V DC Power |
| 3 | RF | O | RF Out, SMA Female,50Ω |
Note：Do not squeeze the M2.5 screws of the module to the optical component, otherwise it may cause the optical component to break.
Typical Response Curve
Ordering Information
| OM | - | RXC | 000 | N | x | - | O | W | 0x |
|---|---|---|---|---|---|---|---|---|---|
| OM： Optical Module | Frequency Range（1）： RCC：0.01~6GHz RXC：0.01~12GHz RUC：0.01~18GHz RKC：0.01~24GHz | Wavelength： 000:800nm ~ 1650nm | Optical Connector and Fiber Type（2）： F：FC/APC SM C: FC/PC SM L: LC/APC SM | Operating Temperature（3） W: -40 to 70℃ | 00： AC couple 01： DC couple |
- Note:
(1)The lower start frequency such as DC or 9kHz is available upon request；
（2）ther optical connector and fiber type can be customized;
(3) Other temperature range need to be customized.
