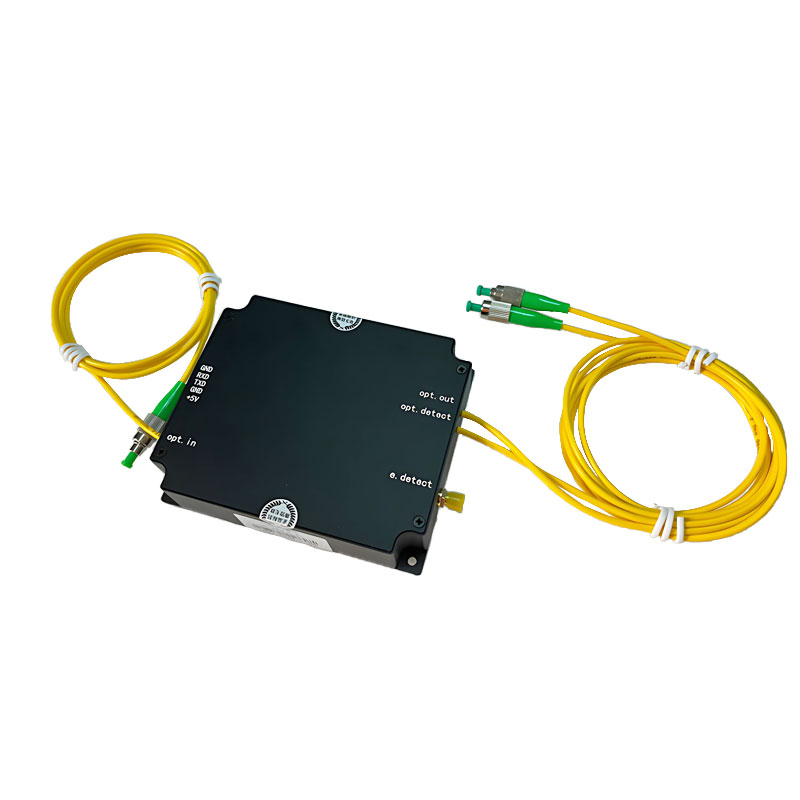

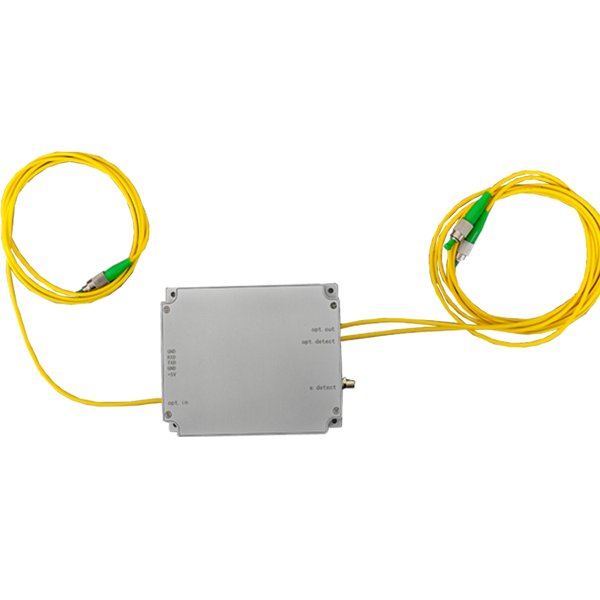

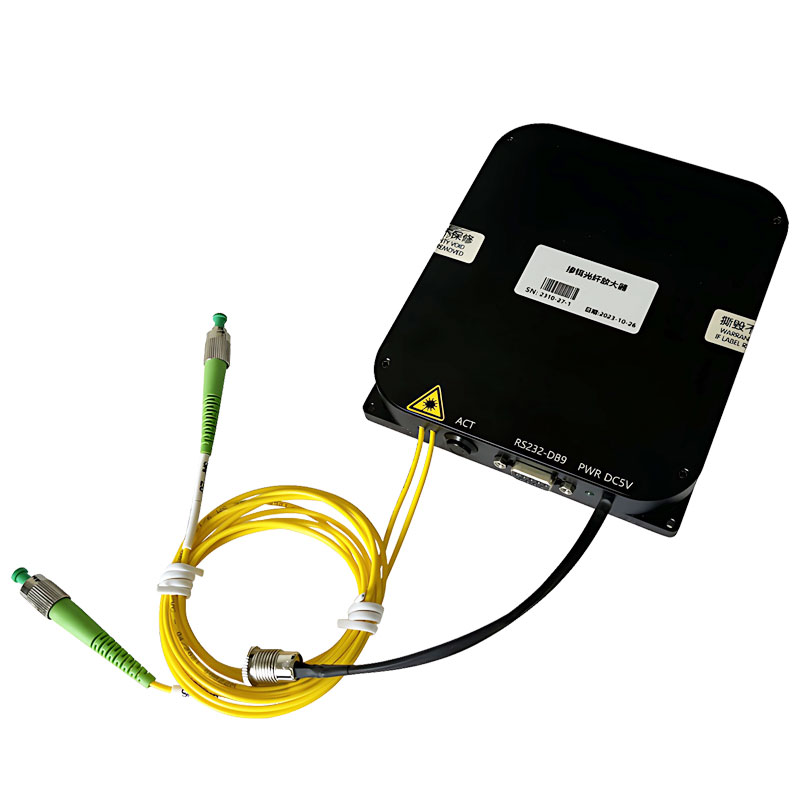

EDFA & Raman Integrated Amplification Module 1550nm Fiber Optic Sensing DVS DAS
The pulsed EDFA & Raman integrated module is suitable for amplification of weak light information well in distributed fiber optic sensing system to achieve longer detection distance.
Huang
Email: Hqy@ybphotonics.com
Product Info
Introduction
The module integrates both an EDFA erbium-doped fiber amplifier and a Raman fiber amplifier inside the module, which significantly reduces system complexity, increases reliability, and reduces size compared to conventional EDFA and Raman amplification systems. The front-end EDFA is available as a pulsed EDFA or an amplified EDFA suitable for ultra-long-range fiber optic sensing systems or high-speed fiber optic communication systems.
The module integrates both an Erbium Doped Fiber Amplifier (EDFA) and a Raman amplifier inside the module, which significantly reduces system complexity, improves reliability, and reduces size compared to traditional EDFA and Raman amplification systems. It is suitable for distributed fiber optic sensing systems to amplify weak optical signals to achieve longer detection distances.
Features
- Highly integrated
- High gain factor
- Low noise index
Applications
- DAS/DVS
- Fiber Distributed Sensing
- Lidar

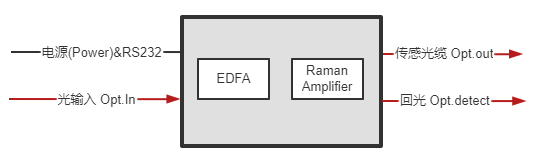

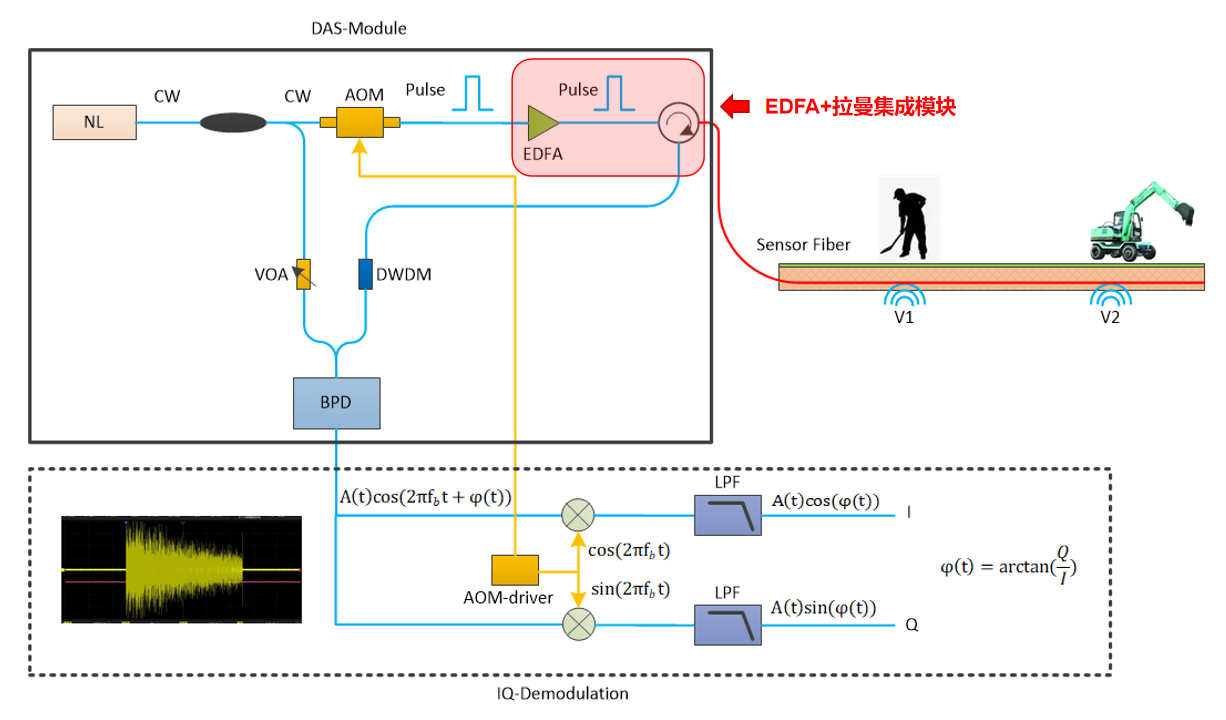

Principle and Application Schematic
parameters
Erbium-doped fiber amplifier parameters
Optical indicators
unit
type. notes wavelength
nm 1550 Minimum Input Power
dBm -53 Gain dB 12
noise index
dB 5.0 Bias Correlation Gain
dB <0.3 polarization mode dispersion
ps 0.5 Input/Output Isolation
dB >35 Pigtail and connector types
- SMF-28，FC/APC operating mode
- /
Raman amplifier parameters
Optical indicators
unit
type.
notes
pump wavelength
nm 1451 Pump Power
mw 400 Pigtail and connector types - SMF-28，FC/APC operating mode - /
Module parameters
Power/communication interface
3.81 Pitch 5P Connector power supply
5VDC/3A communication protocols
Modbus RTU从机 Dimensions (without connectors) 120x90x26 (mm) Operating Temperature Range -20~+60 ℃ Operating humidity range 0~90%
Module Dimensions
Management Software
Ordering Information
models
descriptions
application
GY-EDFA-PL-RA
Pulsed EDFA + Raman Integration, with Backlight Detection 40KM long range DVS, DAS system GY-EDFA-PL Pulsed EDFA, with light detection 20KM DVS, DAS system
The module integrates both an EDFA erbium-doped fiber amplifier and a Raman fiber amplifier inside the module, which significantly reduces system complexity, increases reliability, and reduces size compared to conventional EDFA and Raman amplification systems. The front-end EDFA is available as a pulsed EDFA or an amplified EDFA suitable for ultra-long-range fiber optic sensing systems or high-speed fiber optic communication systems.
The module integrates both an Erbium Doped Fiber Amplifier (EDFA) and a Raman amplifier inside the module, which significantly reduces system complexity, improves reliability, and reduces size compared to traditional EDFA and Raman amplification systems. It is suitable for distributed fiber optic sensing systems to amplify weak optical signals to achieve longer detection distances.
Features
- Highly integrated
- High gain factor
- Low noise index
Applications
- DAS/DVS
- Fiber Distributed Sensing
- Lidar
Principle and Application Schematic
parameters
Erbium-doped fiber amplifier parameters
| Optical indicators | unit | type. | notes |
|---|---|---|---|
| wavelength | nm | 1550 | |
| Minimum Input Power | dBm | -53 | |
| Gain | dB | 12 | |
| noise index | dB | 5.0 | |
| Bias Correlation Gain | dB | <0.3 | |
| polarization mode dispersion | ps | 0.5 | |
| Input/Output Isolation | dB | >35 | |
| Pigtail and connector types | - | SMF-28，FC/APC | |
| operating mode | - | / |
Raman amplifier parameters
| Optical indicators | unit | type. | notes |
|---|---|---|---|
| pump wavelength | nm | 1451 | |
| Pump Power | mw | 400 | |
| Pigtail and connector types | - | SMF-28，FC/APC | |
| operating mode | - | / |
Module parameters
| Power/communication interface | 3.81 Pitch 5P Connector |
|---|---|
| power supply | 5VDC/3A |
| communication protocols | Modbus RTU从机 |
| Dimensions (without connectors) | 120x90x26 (mm) |
| Operating Temperature Range | -20~+60 ℃ |
| Operating humidity range | 0~90% |

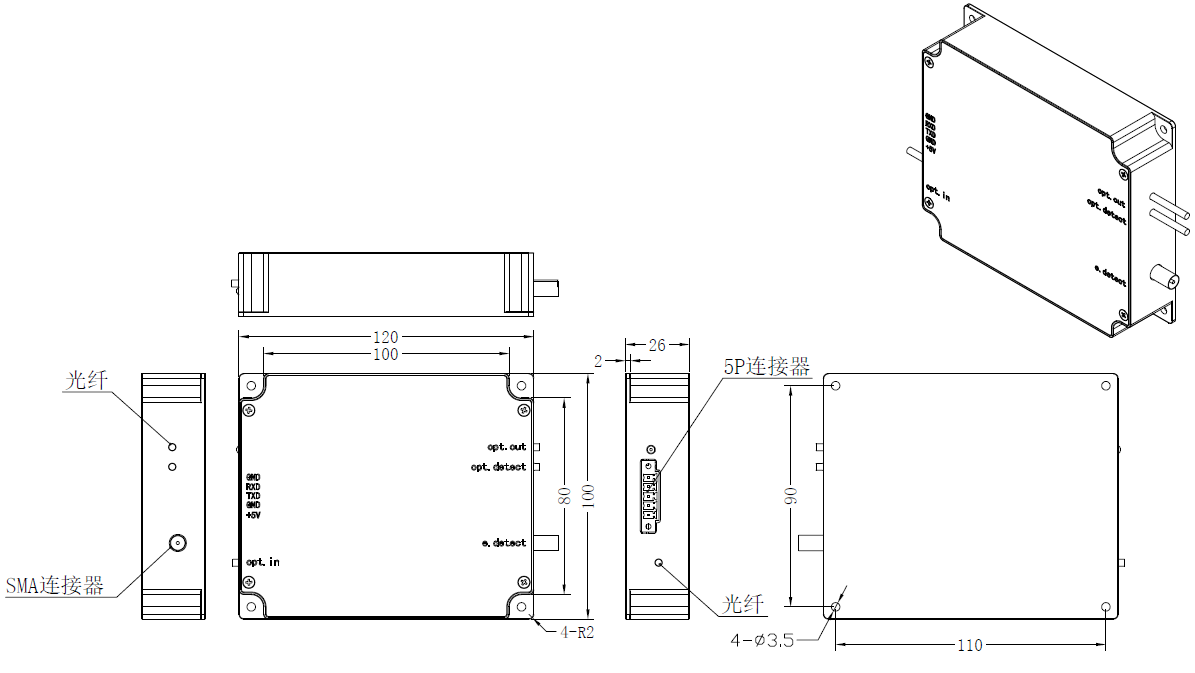

Module Dimensions

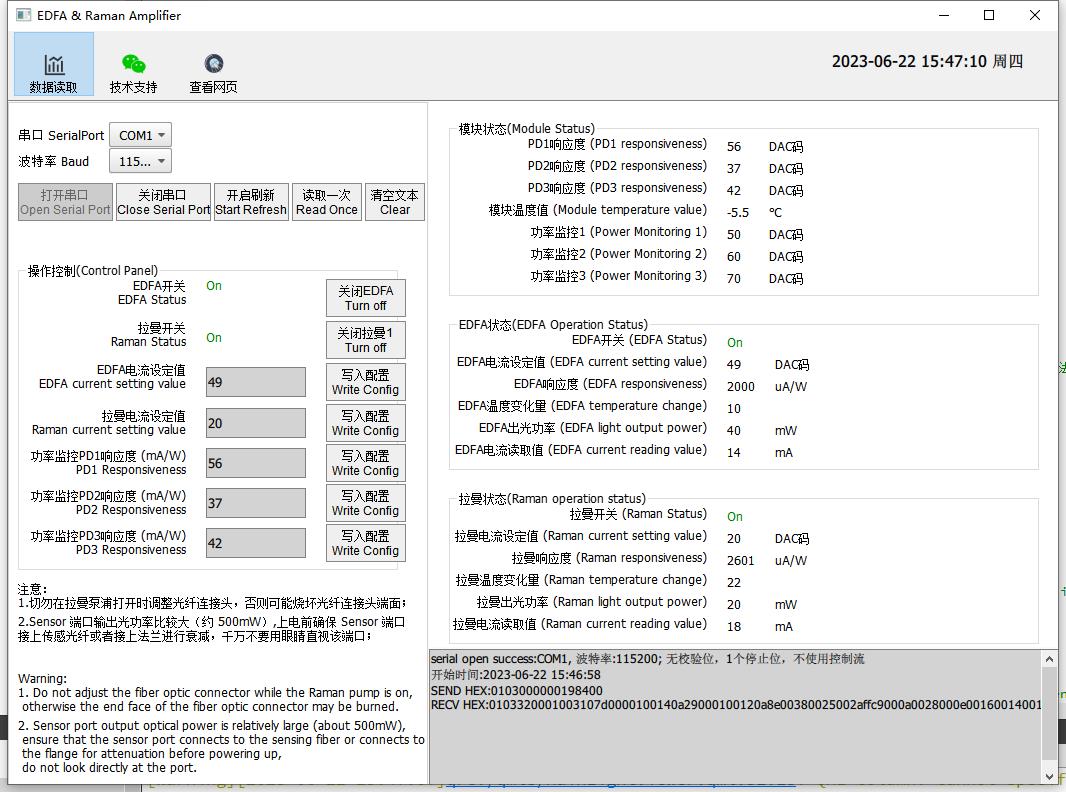

Management Software
Ordering Information
| models | descriptions | application |
|---|---|---|
| GY-EDFA-PL-RA | Pulsed EDFA + Raman Integration, with Backlight Detection | 40KM long range DVS, DAS system |
| GY-EDFA-PL | Pulsed EDFA, with light detection | 20KM DVS, DAS system |
