PD10A-VIS Si Amplified Detectors Fiber-Coupled 400-1100nm
Previous Generation, View Alternatives

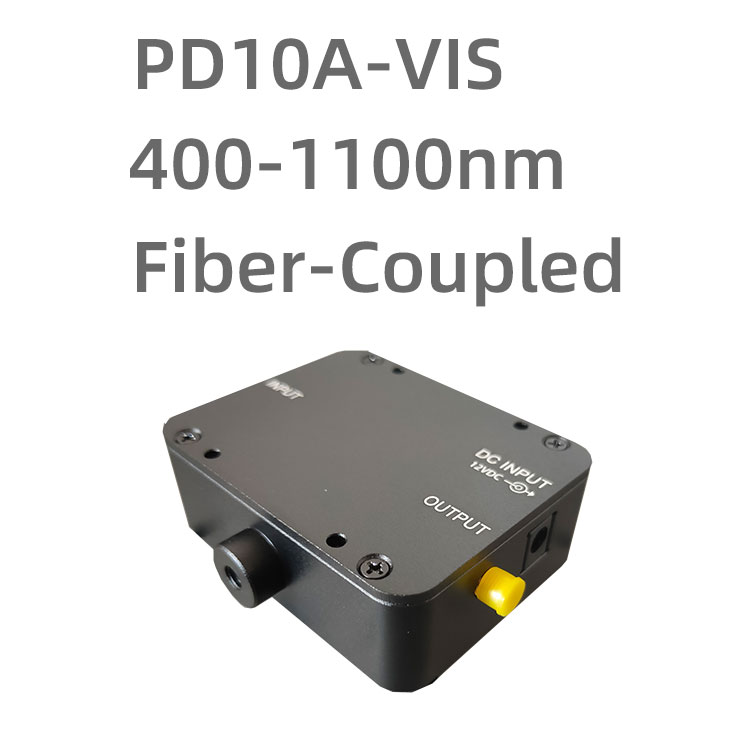

PD10A-VIS is a visible 400-1100nm amplified detector with Si-based PIN-type photodiode, using fiber-coupled FC/APC interface input and low noise output.
Model：PD10A-VIS
Contact：
Huang
Email: Hqy@ybphotonics.com
Huang
Email: Hqy@ybphotonics.com
Product Info
Introduction
PD10A-VIS series silicon photodetector is mainly designed for detecting fiber-coupled visible light. The internal photodiode with PIN-type Si material responds to wavelengths from 400-1100nm, and the fiber optic FC flange coupling interface is more convenient for fiber optic input.
Like PD10A series, the same amplification circuit is used to maintain high gain while minimizing noise. 200M, 500M and 1G bandwidths are available for standard products.
Manual
PD10A-VIS-spec.pdf Download
Features
- High temperature stability
- Low noise, high gain
- All metal shell, excellent shielding performance
- M6 threaded hole for easy installation
Application
- Detection of low-light signals, spectral measurements
- Detect fast laser pulses
- Rf and pulse waveform extraction of laser light sources
- Heterodyne laser beat frequency signal detection
- Picosecond light pulse detection
- Fiber Optic Communications
Specification
Item PD10A-VIS-200M PD10A-VIS-500M PD10A-VIS-1G material Si Si Si Wavelength Range 400-1100nm 400-1100nm 400-1100nm Optical Input FC FC FC Active Area Diameter 200um 200um 200um Responsiveness 0.55A/W @ 850nm 0.55A/W @ 850nm 0.55A/W @ 850nm Bandwidth DC-200MHz DC-500MHz DC-1GHz Rise Time 1.4ns 0.7ns 350ps Conversion Gain (Max) 1.1x10^4V/W 660V/W 380V/W Minimum optical power -29.6dBm(1.1uw) -22.2dBm(6uw) -19.6dBm(11uw) Saturated optical power -4.4dBm(0.36mw) 5.8dBm(3.8mw) 4.1dBm(2.6mw) Operating voltage 12VDC ±10% 12VDC ±10% 12VDC ±10% Operating current <100mA <100mA <100mA Noise voltage <12mV <4mV <4mV Output connector SMA SMA SMA Output impedance 50Ω 50Ω 50Ω Output coupling mode DC DC DC Maximum output amplitude 4.0V 2.5V 1.0V Operating temperature 0~40℃ 0~40℃ 0~40℃ Storage temperature 0~50℃ 0~50℃ 0~50℃ Dimensions 81mm x 64mm x 25mm（Length x width x thickness） 81mm x 64mm x 25mm（Length x width x thickness） 81mm x 64mm x 25mm（Length x width x thickness）
Responsivity
MechanicalDrawing
PD10A-VIS series silicon photodetector is mainly designed for detecting fiber-coupled visible light. The internal photodiode with PIN-type Si material responds to wavelengths from 400-1100nm, and the fiber optic FC flange coupling interface is more convenient for fiber optic input.
Like PD10A series, the same amplification circuit is used to maintain high gain while minimizing noise. 200M, 500M and 1G bandwidths are available for standard products.
Manual
PD10A-VIS-spec.pdf Download
Features
- High temperature stability
- Low noise, high gain
- All metal shell, excellent shielding performance
- M6 threaded hole for easy installation
Application
- Detection of low-light signals, spectral measurements
- Detect fast laser pulses
- Rf and pulse waveform extraction of laser light sources
- Heterodyne laser beat frequency signal detection
- Picosecond light pulse detection
- Fiber Optic Communications
Specification
| Item | PD10A-VIS-200M | PD10A-VIS-500M | PD10A-VIS-1G |
|---|---|---|---|
| material | Si | Si | Si |
| Wavelength Range | 400-1100nm | 400-1100nm | 400-1100nm |
| Optical Input | FC | FC | FC |
| Active Area Diameter | 200um | 200um | 200um |
| Responsiveness | 0.55A/W @ 850nm | 0.55A/W @ 850nm | 0.55A/W @ 850nm |
| Bandwidth | DC-200MHz | DC-500MHz | DC-1GHz |
| Rise Time | 1.4ns | 0.7ns | 350ps |
| Conversion Gain (Max) | 1.1x10^4V/W | 660V/W | 380V/W |
| Minimum optical power | -29.6dBm(1.1uw) | -22.2dBm(6uw) | -19.6dBm(11uw) |
| Saturated optical power | -4.4dBm(0.36mw) | 5.8dBm(3.8mw) | 4.1dBm(2.6mw) |
| Operating voltage | 12VDC ±10% | 12VDC ±10% | 12VDC ±10% |
| Operating current | <100mA | <100mA | <100mA |
| Noise voltage | <12mV | <4mV | <4mV |
| Output connector | SMA | SMA | SMA |
| Output impedance | 50Ω | 50Ω | 50Ω |
| Output coupling mode | DC | DC | DC |
| Maximum output amplitude | 4.0V | 2.5V | 1.0V |
| Operating temperature | 0~40℃ | 0~40℃ | 0~40℃ |
| Storage temperature | 0~50℃ | 0~50℃ | 0~50℃ |
| Dimensions | 81mm x 64mm x 25mm（Length x width x thickness） | 81mm x 64mm x 25mm（Length x width x thickness） | 81mm x 64mm x 25mm（Length x width x thickness） |
Responsivity
MechanicalDrawing
