Four-quadrant PD detector
Four-quadrant;PD detector;400-1000nm
Model：YB-D10N7
Contact：
Huang
Email: Hqy@ybphotonics.com
Huang
Email: Hqy@ybphotonics.com
Introduction

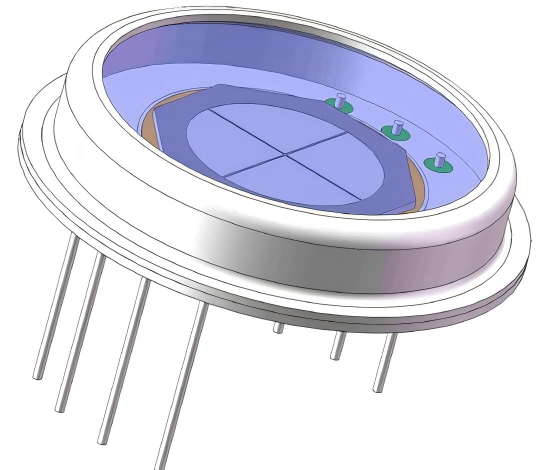

This is a 10mm-diameter, 4-quadrant, fast-response detector designed for high-precision laser detection and positioning.
Features
1. Four-quadrant operation
2. Fast response time
3. High-sensitivity detection capability
4. Operating temperature range: -40 to +80°C
5. Storage temperature range: -50 to +100°C
Applications
1. Laser Detection
2. Laser Positioning
Specifications
Parameters Symbol Value Unit Effective Area Diameter - 10 mm Gap - 0.2 mm Power Supply Voltage VR 200 V Maximum Input Power Pin 10 mW Welding Temperature (Time) - 300（10s） ℃
Typical Performance Curve (Temperature T = 25°C)
Parameters Test Conditions Min Type Max Response Wavelength - 400-1100 nm Dark Current VR=50V - - 10 nA Reverse Breakdown Voltage IR=10μA 100 - - V Total Capacitance VR=50V，f=10KHz - - 10 pF Photosensitivity λ=1064nm,VR=50V ,RL=50 Ω - 0.38 - A/W

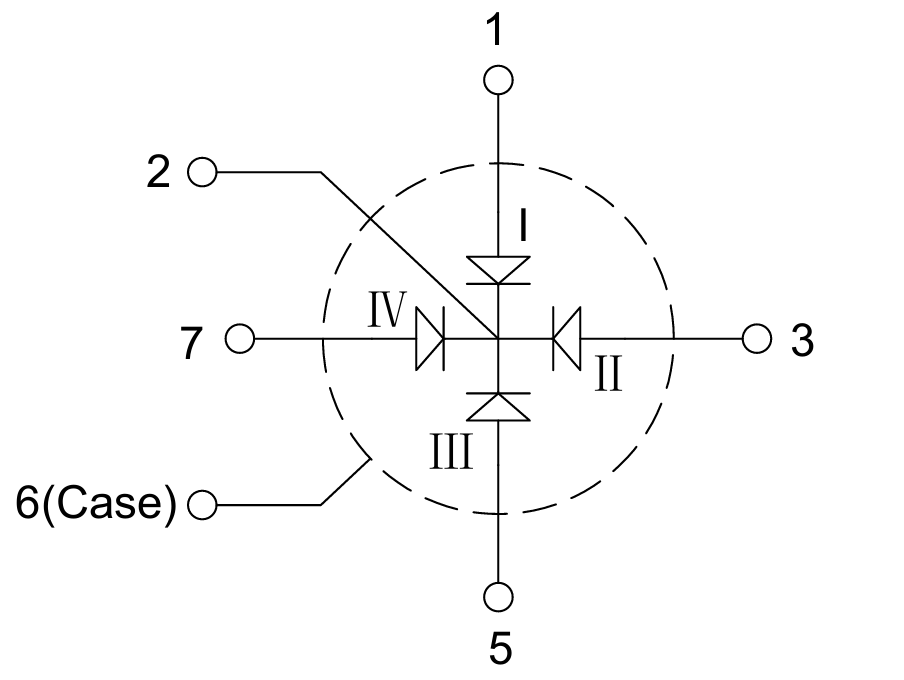

Circuit Diagram

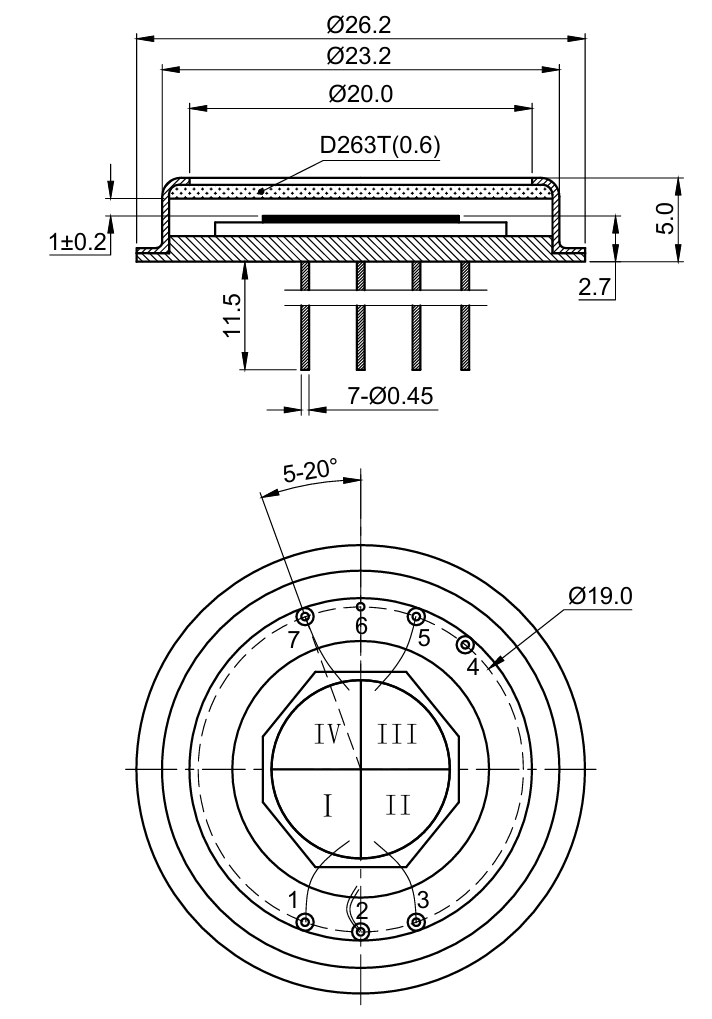

Mechanical Specifications
Top View
This is a 10mm-diameter, 4-quadrant, fast-response detector designed for high-precision laser detection and positioning.
Features
1. Four-quadrant operation
2. Fast response time
3. High-sensitivity detection capability
4. Operating temperature range: -40 to +80°C
5. Storage temperature range: -50 to +100°C
Applications
1. Laser Detection
2. Laser Positioning
Specifications
| Parameters | Symbol | Value | Unit |
|---|---|---|---|
| Effective Area Diameter | - | 10 | mm |
| Gap | - | 0.2 | mm |
| Power Supply Voltage | VR | 200 | V |
| Maximum Input Power | Pin | 10 | mW |
| Welding Temperature (Time) | - | 300（10s） | ℃ |
Typical Performance Curve (Temperature T = 25°C)
| Parameters | Test Conditions | Min | Type | Max | |
|---|---|---|---|---|---|
| Response Wavelength | - | 400-1100 | nm | ||
| Dark Current | VR=50V | - | - | 10 | nA |
| Reverse Breakdown Voltage | IR=10μA | 100 | - | - | V |
| Total Capacitance | VR=50V，f=10KHz | - | - | 10 | pF |
| Photosensitivity | λ=1064nm,VR=50V ,RL=50 Ω | - | 0.38 | - | A/W |
Circuit Diagram
Mechanical Specifications
Top View
