  • InGaAs Avalanche Photodiode 3000um MPD Chip TO CAN

InGaAs Avalanche Photodiode 3000um MPD Chip TO CAN


InGaAs; photodiode; 3000μm; 3mm; TO-CAN; MPD chip; avalanche Photodiode

Model:GYAPD3000V1
Tags: InGaAs photodiode 3000μm 3mm TO-CAN MPD chip avalanche Photodiode
Contact:face Huang Email: Hqy@ybphotonics.com
WhatsApp: +8613427781756 Web | App
Get a Quote

Introduction

InGaAs avalanche photodiode, Φ 3000μm, used for Distance measurement, Spatial light transmission, available in bare die, TO-CAN, pigtail, flange and other packages.

Features

  • High responsivity
  • Low capacitance
  • Low dark current

Product Specifications

Absolute Maximum Ratings

ParameterSymbolMin.Type.Max.Unit
Storage TemperatureTstg-40125
Operating TemperatureTc-4085
Reverse CurrentIR10mA
Forward CurrentIF10mA
Soldering Temperature /TimeTsld/t260/10℃/s

Electro-Optical Characteristics @ Tc=22±3℃)

ParameterTest ConditionMin.Typ.Max.Unit
Responsivity1λ=1310nm0.900.98——A/W
Responsivity2λ=1550nm0.951.10——A/W
 Dark CurrentV=-1V——1.305.00nA
V=-5V——4.0020.00nA
Breakdown VoltageI=-10µA40.00————V
CapacitanceV=-2V,f=1MHz——450510pF
V=-5V,f=1MHz——350410pF
Forward VoltageI=1mA——0.370.70V


Dimensions

As shown in Figure 1

ParameterMin.Typ.Max.UnitNotes
Die Width319032003210µm
Die Length319032003210µm
Detection Window——3000——µm
Thickness190200210µm
Bonding Pad Diameter——150——µmFor p-pad

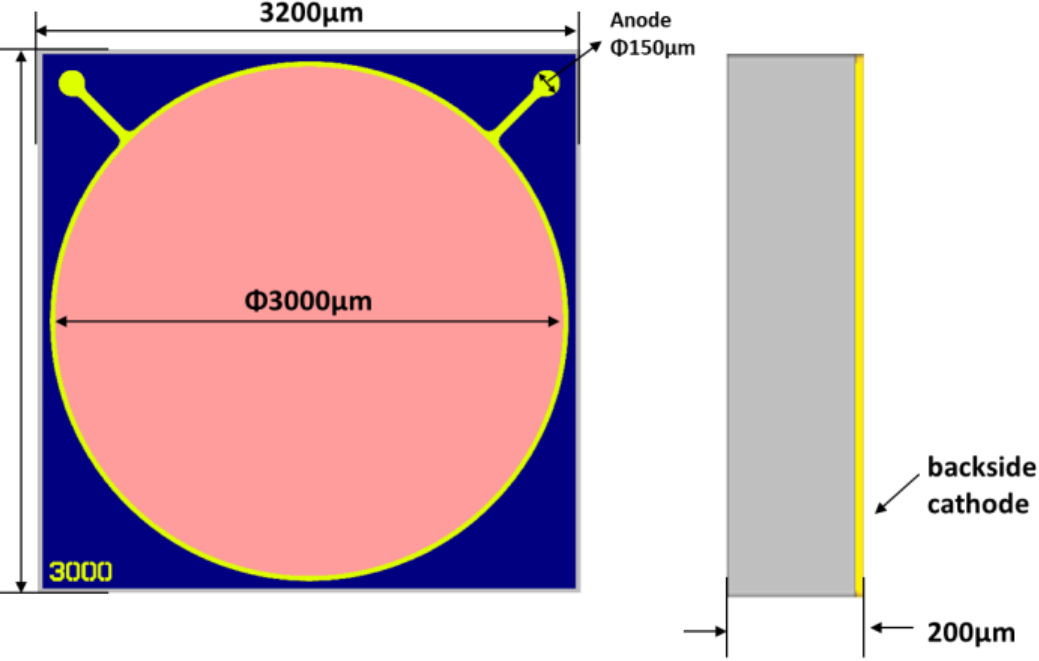

Figure 1

Attention: Handle with care, InP is a brittle material. The device can be permanently damaged when exposed to ESD.Specifications are subject to change without notice.

Outline Diagram (in mm):




Ordering Information:
GYTG_CFW_0MTPF

TO Type:TO39Pin Type:CCap Type:Flat WindowsProduct Type:PINChip TypeGYMPD3000V1SupplierCode

Product Compliance Information:

RoHS Compliance

This part is compliant with 2011/65/EU and 2015/863 RoHS directive (Restrictions on the Use of Certain Hazardous Substances in Electrical and Electronic Equipment).

Precaution:

(1) The modules should be handled in the same manner as ordinary semiconductor device to prevent the electro-static damages. The modules should be packaged with ESD proof material for safety keeping and carrying. The workbench, the soldering iron, and the human body should be grounded during the assembly of the modules.

(2) Please pay special attention to the atmosphere condition because the dew on the modules may cause electrical damages.


Product Related Videos




Product Inquiry

Leading manufacturer of photodetector modules and fiber optic sensing system modules
