BPD230 Balanced Photodetector Free Space Light Input
The BPD230 balanced photodetector uses 2 TO-packaged photodiodes to receive free-space light input with a very high common mode rejection ratio.
Huang
Email: Hqy@ybphotonics.com
Product Info
Introduction
The BPD230 series balanced photodetectors utilize spatial light input and are suitable for coherent detection optics in spatial light paths.
The balanced photodetector contains two photodiodes and a low-noise transimpedance amplifier, where the two photodiodes are matched to each other for excellent common mode rejection ratio, and the detector subtracts the two detected signals to eliminate the common mode noise, so that small variations of the effective signal can be obtained from the interfering noise. The detector is available in two spectral ranges, 400-1000nm and 1000-1700nm.
Item BPD230A-10M BPD230A-75M BPD230A-200M BPD230A-400M materials Si wavelength range 320-1000nm input connector Free-Space responsivity 0.5A/W @760nm Active area 0.4mm Common mode rejection ratio >25dB bandwidth (a) DC-10MHz DC-75MHz DC-200MHz DC-400MHz rise time (a) 36ns 4.5ns 2ns 1ns transimpedance gain (b) 1MV/A 165kV/A 28.6kV/A 10kV/A Saturated optical power 8uw 48uw 280uw 800uw noise voltage (a) 9mV RMS 8mV RMS 4mV RMS 3.5mV RMS noise equivalent power (c) 4.7pW/√Hz 16.1pW/√Hz
13.9pW/√Hz 84pW/√Hz
Item
BPD230C-5M BPD230C-50M BPD230C-150M BPD230C-300M materials InGaAs wavelength range 1000-1700nm input connector
Free-Space responsivity
0.9A/W @1550nm Active area
0.2mm Common mode rejection ratio
>25dB bandwidth (a)
DC-10MHz DC-75MHz DC-150MHz DC-400MHz rise time (a)
36ns 4.5ns 2.2ns 1ns transimpedance gain (b)
1MV/A 165kV/A 30kV/A 10kV/A Saturated optical power
4.4uw 27uw 148uw 445uw noise voltage (a)
9mV RMS 8mV RMS 4mV RMS 3.5mV RMS noise equivalent power (c)
2.6pW/√Hz 11.4pW/√Hz 30.5pW/√Hz 48pW/√Hz
Paramas Detector Common Parameters Maximum output amplitude（a） ±2.0V Operating voltage ±12V Operating Current <200mA Output Impedance 50Ω Output coupling mode DC Output connector SMA female Operating temperature -20~65℃ Storage temperature -40~85℃
Remarks:
a : For 50Ω loads
b : For high resistance loads
c DC-100MHz
Mechanical dimensions
The BPD230 series balanced photodetectors utilize spatial light input and are suitable for coherent detection optics in spatial light paths.
The balanced photodetector contains two photodiodes and a low-noise transimpedance amplifier, where the two photodiodes are matched to each other for excellent common mode rejection ratio, and the detector subtracts the two detected signals to eliminate the common mode noise, so that small variations of the effective signal can be obtained from the interfering noise. The detector is available in two spectral ranges, 400-1000nm and 1000-1700nm.
| Item | BPD230A-10M | BPD230A-75M | BPD230A-200M | BPD230A-400M |
|---|---|---|---|---|
| materials | Si | |||
| wavelength range | 320-1000nm | |||
| input connector | Free-Space | |||
| responsivity | 0.5A/W @760nm | |||
| Active area | 0.4mm | |||
| Common mode rejection ratio | >25dB | |||
| bandwidth (a) | DC-10MHz | DC-75MHz | DC-200MHz | DC-400MHz |
| rise time (a) | 36ns | 4.5ns | 2ns | 1ns |
| transimpedance gain (b) | 1MV/A | 165kV/A | 28.6kV/A | 10kV/A |
| Saturated optical power | 8uw | 48uw | 280uw | 800uw |
| noise voltage (a) | 9mV RMS | 8mV RMS | 4mV RMS | 3.5mV RMS |
| noise equivalent power (c) | 4.7pW/√Hz | 16.1pW/√Hz | 13.9pW/√Hz | 84pW/√Hz |
| Item | BPD230C-5M | BPD230C-50M | BPD230C-150M | BPD230C-300M |
|---|---|---|---|---|
| materials | InGaAs | |||
| wavelength range | 1000-1700nm | |||
| input connector | Free-Space | |||
| responsivity | 0.9A/W @1550nm | |||
| Active area | 0.2mm | |||
| Common mode rejection ratio | >25dB | |||
| bandwidth (a) | DC-10MHz | DC-75MHz | DC-150MHz | DC-400MHz |
| rise time (a) | 36ns | 4.5ns | 2.2ns | 1ns |
| transimpedance gain (b) | 1MV/A | 165kV/A | 30kV/A | 10kV/A |
| Saturated optical power | 4.4uw | 27uw | 148uw | 445uw |
| noise voltage (a) | 9mV RMS | 8mV RMS | 4mV RMS | 3.5mV RMS |
| noise equivalent power (c) | 2.6pW/√Hz | 11.4pW/√Hz | 30.5pW/√Hz | 48pW/√Hz |
| Paramas | Detector Common Parameters |
|---|---|
| Maximum output amplitude（a） | ±2.0V |
| Operating voltage | ±12V |
| Operating Current | <200mA |
| Output Impedance | 50Ω |
| Output coupling mode | DC |
| Output connector | SMA female |
| Operating temperature | -20~65℃ |
| Storage temperature | -40~85℃ |
Remarks:
a : For 50Ω loads
b : For high resistance loads
c DC-100MHz

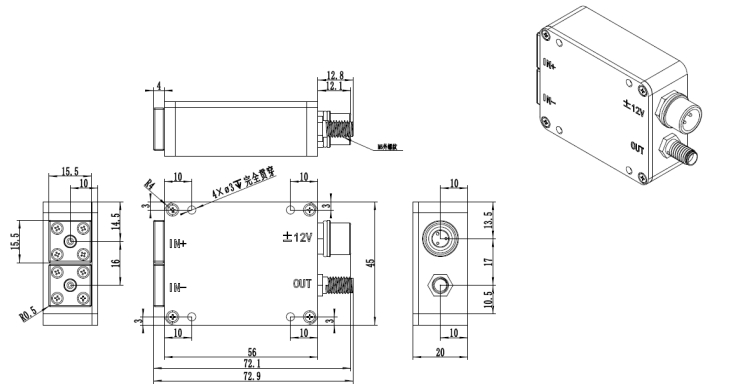

Mechanical dimensions
