Industrial Balanced Photodetector Atmospheric Remote Sensing Lidar OCT
Previous Generation, View Alternatives

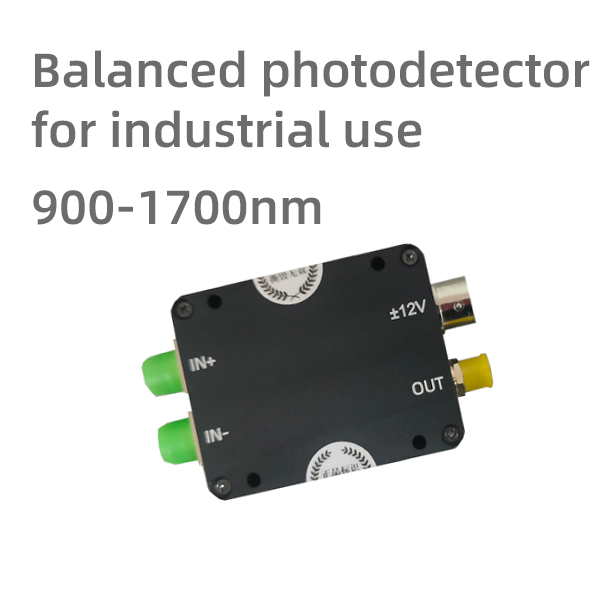

Industrial grade balanced photodetector, small size for easier OEM integration, XS10-3 power connector for more robustness, suitable for atmospheric remote sensing LIDAR OCT
Model：BPD465C
Contact：
Huang
Email: Hqy@ybphotonics.com
Huang
Email: Hqy@ybphotonics.com
Product Info
Introduction
BPD465C is an InGaAs, PIN type industrial grade balanced photodetector with small size for easier OEM integration and a more robust aerospace power connector for XS10-3, suitable for coherent detection applications such as atmospheric remote sensing LIDAR OCT distributed fiber optic sensing.
Application
- Coherent detection applications
- OCT
- DAS、DVS
- Atmospheric Remote Sensing Lidar
Specification
Item BPD465C-10M
BPD465C-75M BPD465C-200M BPD465C-400M
BPD465C-DAS-200M Materials InGaAs/PIN
InGaAs/PIN InGaAs/PIN InGaAs/PIN
InGaAs/PIN Wavelength 900-1700nm
900-1700nm 900-1700nm 900-1700nm
900-1700nm Input Connector
FC/APC
FC/APC FC/APC FC/APC

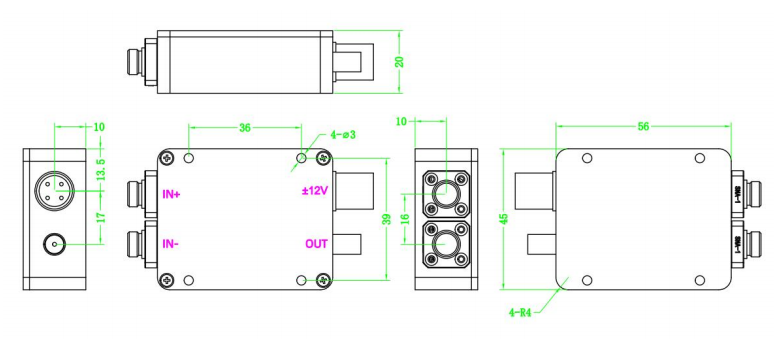

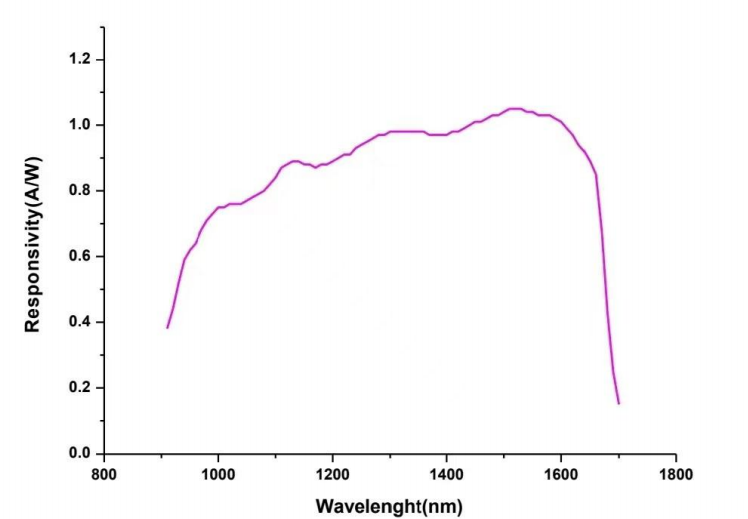

FC/APC Responsiveness
0.9A/W @ 1550 nm
0.9A/W @ 1550 nm 0.9A/W @ 1550 nm 0.9A/W @ 1550 nm
0.9A/W @ 1550 nm Common mode rejection ratio
>26dB
>25dB >25dB >25dB
>25dB RF Bandwidth
DC-10MHz
DC-75MHz DC-200MHz DC-400MHz
DC-200MHz RF rise time @50Ω load
40ns
5ns 1.8ns 1.0ns
1.8ns RF Gain
300kV/A
88.5kV/A 18.3kV/A 4.5kV/A
80kV/A Minimum optical power@1550nm -54.2dBm (3.76nw)
-39.0dBm (0.13uw) -33dBm (0.5uw) -29dBm (1.25uw)
-35dBm (0.32uw) Saturated optical power@1550nm -22dBm (6.25uw)
-14.2dBm (37.6uw) -7.4dBm (180uw) -1.36dBm (730uw)
-15.6dBm (27.8uw) Noise voltage@50Ω <18mVpp
<20mVpp <18mVpp <10mVpp
<30mVpp RF Output Impedance
50Ω
50Ω 50Ω 50Ω
50Ω RF output swing @50Ω load
±2.0V
±2.0V ±2.0V ±2.0V
±1.0V Work Voltage
12VDC ±10%
12VDC ±10% 12VDC ±10% 12VDC ±10%
12VDC ±10% Work current
<200mA
<200mA <200mA <200mA
<200mA Output connector
SMA
SMA SMA SMA
SMA Work temperature
-20~65℃
-20~65℃ -20~65℃ -20~65℃
-20~65℃ Storage temperature
-40~85℃
-40~85℃ -40~85℃ -40~85℃
-40~85℃
BPD465C is an InGaAs, PIN type industrial grade balanced photodetector with small size for easier OEM integration and a more robust aerospace power connector for XS10-3, suitable for coherent detection applications such as atmospheric remote sensing LIDAR OCT distributed fiber optic sensing.
Application
- Coherent detection applications
- OCT
- DAS、DVS
- Atmospheric Remote Sensing Lidar
Specification
| Item | BPD465C-10M | BPD465C-75M | BPD465C-200M | BPD465C-400M | BPD465C-DAS-200M |
|---|---|---|---|---|---|
| Materials | InGaAs/PIN | InGaAs/PIN | InGaAs/PIN | InGaAs/PIN | InGaAs/PIN |
| Wavelength | 900-1700nm | 900-1700nm | 900-1700nm | 900-1700nm | 900-1700nm |
| Input Connector | FC/APC | FC/APC | FC/APC | FC/APC | FC/APC |
| Responsiveness | 0.9A/W @ 1550 nm | 0.9A/W @ 1550 nm | 0.9A/W @ 1550 nm | 0.9A/W @ 1550 nm | 0.9A/W @ 1550 nm |
| Common mode rejection ratio | >26dB | >25dB | >25dB | >25dB | >25dB |
| RF Bandwidth | DC-10MHz | DC-75MHz | DC-200MHz | DC-400MHz | DC-200MHz |
| RF rise time @50Ω load | 40ns | 5ns | 1.8ns | 1.0ns | 1.8ns |
| RF Gain | 300kV/A | 88.5kV/A | 18.3kV/A | 4.5kV/A | 80kV/A |
| Minimum optical power@1550nm | -54.2dBm (3.76nw) | -39.0dBm (0.13uw) | -33dBm (0.5uw) | -29dBm (1.25uw) | -35dBm (0.32uw) |
| Saturated optical power@1550nm | -22dBm (6.25uw) | -14.2dBm (37.6uw) | -7.4dBm (180uw) | -1.36dBm (730uw) | -15.6dBm (27.8uw) |
| Noise voltage@50Ω | <18mVpp | <20mVpp | <18mVpp | <10mVpp | <30mVpp |
| RF Output Impedance | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω |
| RF output swing @50Ω load | ±2.0V | ±2.0V | ±2.0V | ±2.0V | ±1.0V |
| Work Voltage | 12VDC ±10% | 12VDC ±10% | 12VDC ±10% | 12VDC ±10% | 12VDC ±10% |
| Work current | <200mA | <200mA | <200mA | <200mA | <200mA |
| Output connector | SMA | SMA | SMA | SMA | SMA |
| Work temperature | -20~65℃ | -20~65℃ | -20~65℃ | -20~65℃ | -20~65℃ |
| Storage temperature | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ |
