ASE Broadband Light Source
Model：ASE-C-50-SM-M
Contact：
Huang
Email: Hqy@ybphotonics.com
Huang
Email: Hqy@ybphotonics.com
Product Info
Introduction
ASE Broadband Light Source, C-band 1528-1563nm, 20mW/50mW.
Parameter
Unit Test value Notes Wavelength range nm 1528-1563 C-band Spectrum width nm 38.0 @2dB Power output mW 50 Fixed power RMS power stability % 0.10 Isolation at the output dB 35 Operating temperature range ℃ -5~+50 Working humidity range ％ 0~70 Storage temperature range ℃ -40~+85 Power supply type - 5V DC
Fiber optic connector type - FC/APC Output pigtail type - SMF-28e Single-mode fiber，2mm Casing，1m Dimension mm 125(W)*150(D)*20(H)
ASE Broadband Light Source, C-band 1528-1563nm, 20mW/50mW.
| Parameter | Unit | Test value | Notes |
|---|---|---|---|
| Wavelength range | nm | 1528-1563 | C-band |

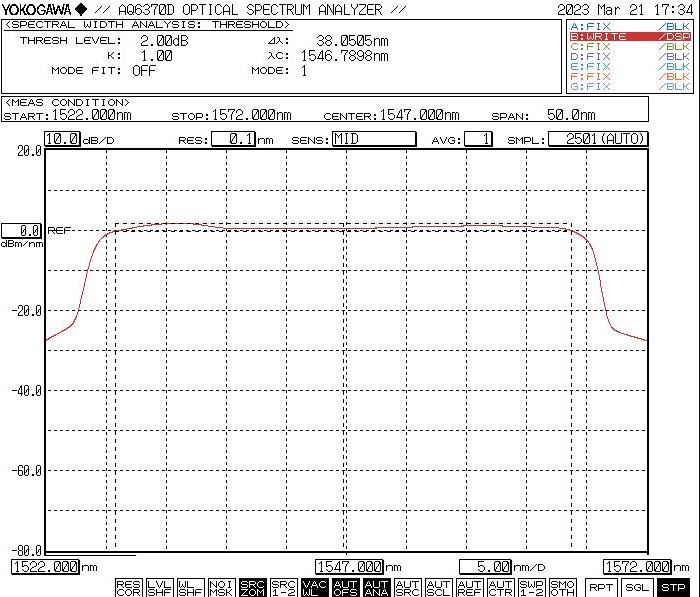

| Spectrum width | nm | 38.0 | @2dB |
| Power output | mW | 50 | Fixed power |

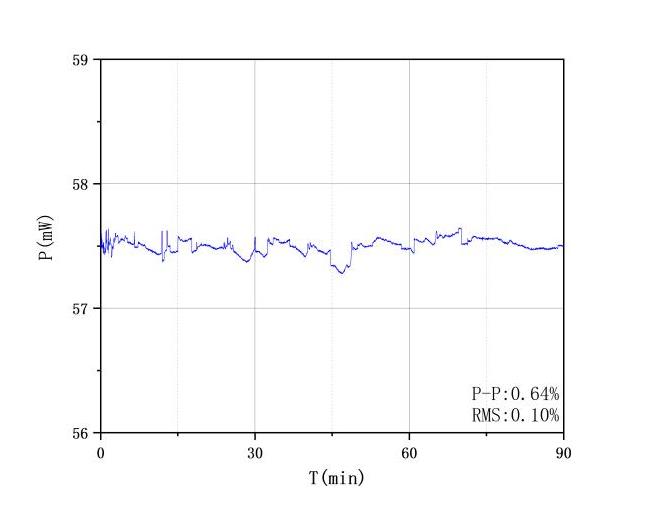

| RMS power stability | % | 0.10 | |
| Isolation at the output | dB | 35 | |
| Operating temperature range | ℃ | -5~+50 | |
| Working humidity range | ％ | 0~70 | |
| Storage temperature range | ℃ | -40~+85 | |
| Power supply type | - | 5V DC | |
| Fiber optic connector type | - | FC/APC | |
| Output pigtail type | - | SMF-28e Single-mode fiber，2mm Casing，1m | |
| Dimension | mm | 125(W)*150(D)*20(H) |
