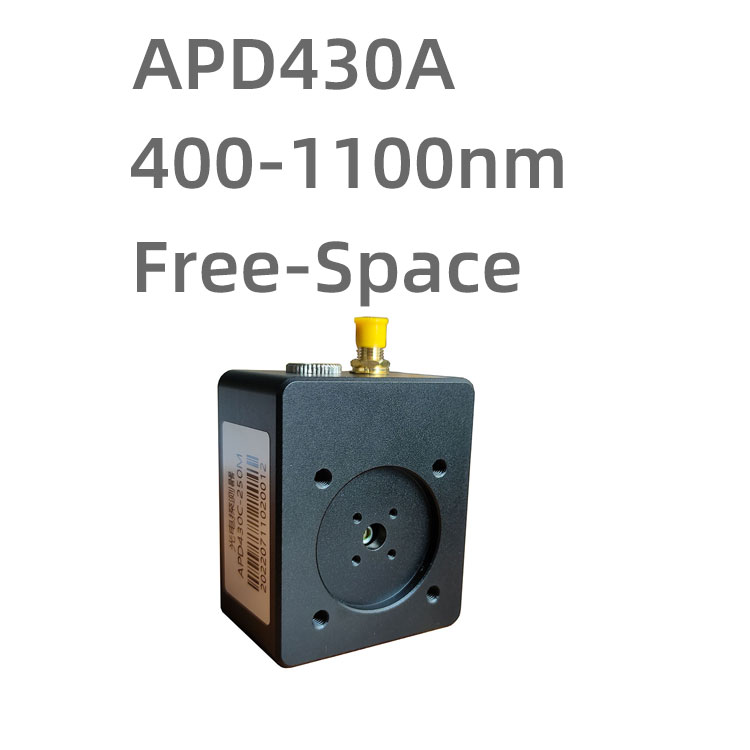

APD430A Si Free-Space Amplified Avalanche Detectors 400-1100nm
Previous Generation, View Alternatives
APD430A photodetector module, based on silicon avalanche photodiode, 400-1100nm, free space coupling, bandwidth DC 10M to 400M; suitable for visible light detection
Model：APD430A
Contact：
Huang
Email: Hqy@ybphotonics.com
Huang
Email: Hqy@ybphotonics.com
Product Info
Introduction
APD430A Photodetector module based on Si avalanche photodiode, 400-1100nm, free-space optical coupling input, bandwidth DC-200M; suitable for low light detection, LIDAR and other applications.
Download
manual.pdf download
Specifications
Parameter APD430A-10M APD130A-50M APD430A-200M APD430A-400M Material Si
Si
Si Si
Wavelength Range 400-1100nm
400-1100nm
400-1100nm 400-1100nm
Optical Input Free Space（FC Option）
Free Space（FC Option）
Free Space（FC Option） Free Space（FC Option）
Detector Size 500um 500um 230um 230um Responsiveness 55A/W @ 905nm (M = 100)
27A/W @ 905nm (M = 50)
55A/W @ 905nm (M = 100) 55A/W @ 905nm (M = 100)
Bandwidth DC-10MHz
DC-50MHz
DC-200MHz DC-400MHz
Rise Time 36ns 9ns 1.8ns 0.9ns Conversion Gain (Max) @HiZ 3.0x10^7V/W
3.0x10^6V/W
1.2x10^6V/W 5.5x10^5V/W
Comprehensive noise 0.8nW(RMS)
3.7nW(RMS)
7nW(RMS) 15nW(RMS)
Saturated optical power 0.1uW
1.0uW
2.5uW 5.5uW
Noise voltage <18mVpp
<15mVpp
<12mV <18mVpp
Maximum output amplitude@HiZ 3V
3V
3V 3V
Operating voltage 9-12VDC
9-12VDC
9-12VDC 9-12VDC
Operating current <200mA
<200mA
<200mA <200mA
Output connector SMA
SMA
SMA SMA
Output impedance 50Ω
50Ω
50Ω 50Ω
AC or DC Coupling DC
DC
DC DC
Operating temperature -20~60℃
-20~60℃
-20~60℃ -20~60℃
Storage temperature -40~85℃
-40~85℃
-40~85℃ -40~85℃
Dimensions 60mm x 50mm x 32mm（LxWxD）
60mm x 50mm x 32mm（LxWxD）
60mm x 50mm x 32mm（LxWxD） 60mm x 50mm x 32mm（LxWxD）
Responsivity
Mechanical Drawing
APD430C oscilloscope screenshot
APD430A Photodetector module based on Si avalanche photodiode, 400-1100nm, free-space optical coupling input, bandwidth DC-200M; suitable for low light detection, LIDAR and other applications.
Download
manual.pdf download
Specifications
| Parameter | APD430A-10M | APD130A-50M | APD430A-200M | APD430A-400M |
|---|---|---|---|---|
| Material | Si | Si | Si | Si |
| Wavelength Range | 400-1100nm | 400-1100nm | 400-1100nm | 400-1100nm |
| Optical Input | Free Space（FC Option） | Free Space（FC Option） | Free Space（FC Option） | Free Space（FC Option） |
| Detector Size | 500um | 500um | 230um | 230um |
| Responsiveness | 55A/W @ 905nm (M = 100) | 27A/W @ 905nm (M = 50) | 55A/W @ 905nm (M = 100) | 55A/W @ 905nm (M = 100) |
| Bandwidth | DC-10MHz | DC-50MHz | DC-200MHz | DC-400MHz |
| Rise Time | 36ns | 9ns | 1.8ns | 0.9ns |
| Conversion Gain (Max) @HiZ | 3.0x10^7V/W | 3.0x10^6V/W | 1.2x10^6V/W | 5.5x10^5V/W |
| Comprehensive noise | 0.8nW(RMS) | 3.7nW(RMS) | 7nW(RMS) | 15nW(RMS) |
| Saturated optical power | 0.1uW | 1.0uW | 2.5uW | 5.5uW |
| Noise voltage | <18mVpp | <15mVpp | <12mV | <18mVpp |
| Maximum output amplitude@HiZ | 3V | 3V | 3V | 3V |
| Operating voltage | 9-12VDC | 9-12VDC | 9-12VDC | 9-12VDC |
| Operating current | <200mA | <200mA | <200mA | <200mA |
| Output connector | SMA | SMA | SMA | SMA |
| Output impedance | 50Ω | 50Ω | 50Ω | 50Ω |
| AC or DC Coupling | DC | DC | DC | DC |
| Operating temperature | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ |
| Storage temperature | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ |
| Dimensions | 60mm x 50mm x 32mm（LxWxD） | 60mm x 50mm x 32mm（LxWxD） | 60mm x 50mm x 32mm（LxWxD） | 60mm x 50mm x 32mm（LxWxD） |

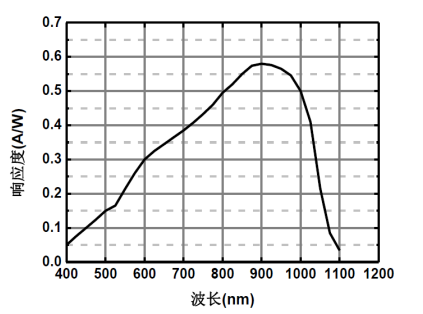

Responsivity

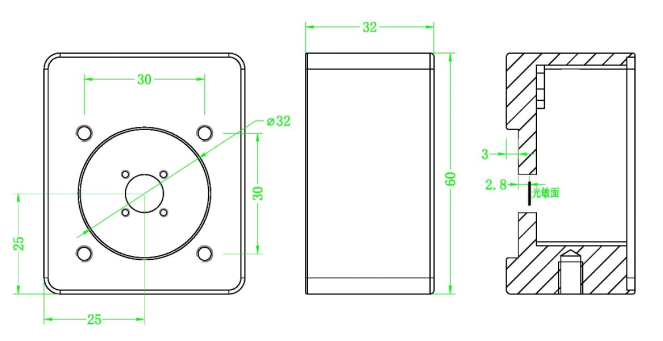

Mechanical Drawing
APD430C oscilloscope screenshot
