QPD100 Four-Quadrant Photodetector
4‑QD;Photodetector;QPD100
Model：QPD100
Contact：
Huang
Email: Hqy@ybphotonics.com
Huang
Email: Hqy@ybphotonics.com
Introduction
4-Quadrant Photodetector QPD100, suitable for laser APT tracking systems, lidar, maritime optical communications, laser guidance, beam stabilization systems, sun tracking, and optical alignment of acousto-optic modulators, among others
1. Overview
The QPD four-quadrant position detector uses photodiodes with excellent quadrant consistency and integrates a low-noise power supply and amplification circuitry, offering features such as low noise and high gain. It is widely used in applications such as laser alignment/guidance and angle measurement.
2. Features
- Compact design
- Single-power-supply operation
3. Applications
- Spot alignment
- Angle measurement
- Laser alignment
- Displacement monitoring
4. Specifications
Model QPD100A-2M Material Si Wavelength Range 400-1100nm Photosensitive Area 10x10mm Quadrant Gap 200um Recommended Spot Diameter 1-4.5mm Sensitivity 0.38A/W @1064nm Bandwidth a DC-2MHz Rise Time a 180ns Transimpedance Gain a 10kV/A Maximum Photocurrent 500uA Maximum Output Voltage a 5V Noise Voltage a 2mV Equivalent Noise Power 8.6pW/√Hz Output Impedance 50Ω Output Coupling Method DC Output Connector MMXC Operating Voltage 12VDC Operating Temperature -20~65℃ Storage Temperature -40~85℃
Notes:
a For high-impedance loads

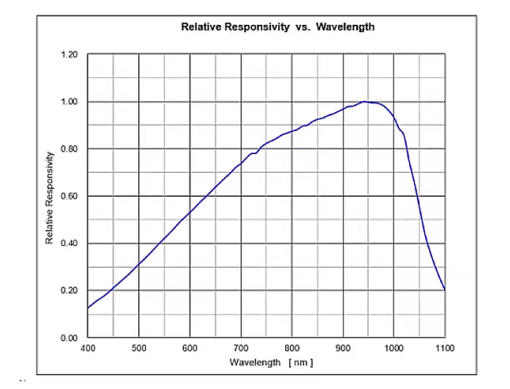

5. Response Curve

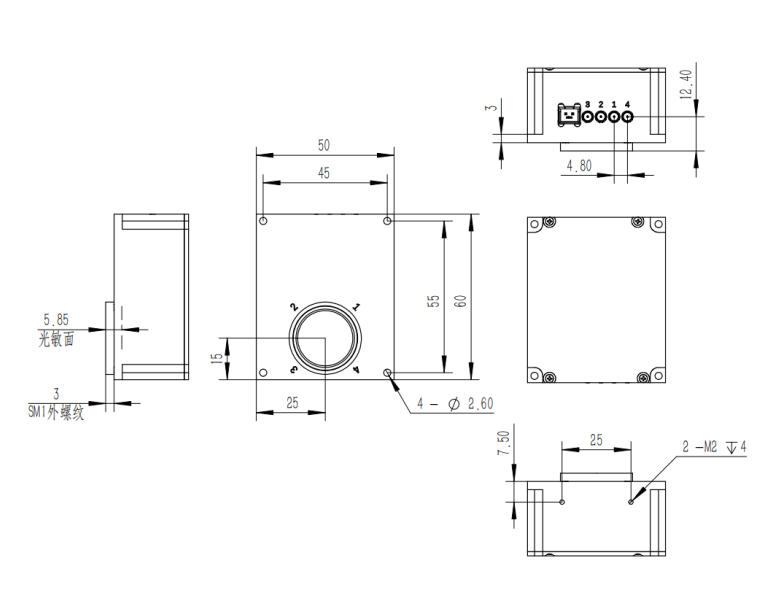

6. Mechanical Dimensions
7. Shipping List
No. Item Name Quantity Unit Remarks 1 Photoelectric Detector 1 piece 2 MMXC-to-BNC RF Cable 4 piece 3 Power Adapter 1 piece 12V 4 Power Cable 1 piece
4-Quadrant Photodetector QPD100, suitable for laser APT tracking systems, lidar, maritime optical communications, laser guidance, beam stabilization systems, sun tracking, and optical alignment of acousto-optic modulators, among others
1. Overview
The QPD four-quadrant position detector uses photodiodes with excellent quadrant consistency and integrates a low-noise power supply and amplification circuitry, offering features such as low noise and high gain. It is widely used in applications such as laser alignment/guidance and angle measurement.
2. Features
- Compact design
- Single-power-supply operation
3. Applications
- Spot alignment
- Angle measurement
- Laser alignment
- Displacement monitoring
4. Specifications
| Model | QPD100A-2M |
|---|---|
| Material | Si |
| Wavelength Range | 400-1100nm |
| Photosensitive Area | 10x10mm |
| Quadrant Gap | 200um |
| Recommended Spot Diameter | 1-4.5mm |
| Sensitivity | 0.38A/W @1064nm |
| Bandwidth a | DC-2MHz |
| Rise Time a | 180ns |
| Transimpedance Gain a | 10kV/A |
| Maximum Photocurrent | 500uA |
| Maximum Output Voltage a | 5V |
| Noise Voltage a | 2mV |
| Equivalent Noise Power | 8.6pW/√Hz |
| Output Impedance | 50Ω |
| Output Coupling Method | DC |
| Output Connector | MMXC |
| Operating Voltage | 12VDC |
| Operating Temperature | -20~65℃ |
| Storage Temperature | -40~85℃ |
Notes:
a For high-impedance loads
5. Response Curve
6. Mechanical Dimensions
7. Shipping List
| No. | Item Name | Quantity | Unit | Remarks |
|---|---|---|---|---|
| 1 | Photoelectric Detector | 1 | piece | |
| 2 | MMXC-to-BNC RF Cable | 4 | piece | |
| 3 | Power Adapter | 1 | piece | 12V |
| 4 | Power Cable | 1 | piece |
